Corrugates parallel parts

Corrugates parallel parts Parallel rests aid in positioning workpieces so that they can be clamped quickly and in precisely reproducible positions in the vise. They are used for workpieces that...

Item number

: T2g-MK 960128

€ 94,55 *

€ 88,45 *

Size: 960128: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

Corrugates parallel parts
Parallel rests aid in positioning workpieces so that they can be clamped quickly and in precisely reproducible positions in the vise. They are used for workpieces that are flatter than the bank height of the vise. Parallel rests also ensure that the clamped workpiece isn’t tilted, but instead is aligned precisely parallel to the table surface. Corrugated work rests can also be compressed during clamping and then return to their original form when released.
Hardened and finished
High plane parallelism
Spring steel
Saves time when clamping parts for grinding, milling, drilling etc. ...
No chips are left on the supporting surface to ensure unaffected parallelism of the clamped workpiece
Multiple flat parts, or individual thin parts can be clamped
Hardened and tempered spring steel, 110 mm long parallelism ± 0.005 mm, precision-ground

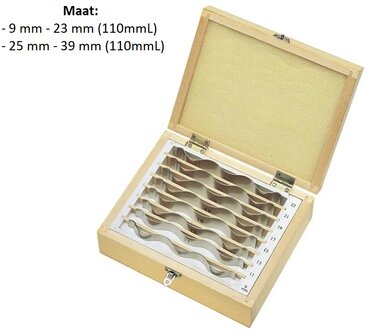

8 pair per set - 2 mm incrementing
- 9 mm - 23 mm (110mmL)
- 25 mm - 39 mm (110mmL)
