Conventional Vertical Milling Machines 1,5 / 1,1 kW

Conventional Vertical Milling Machines 1,5 / 1,1 kW

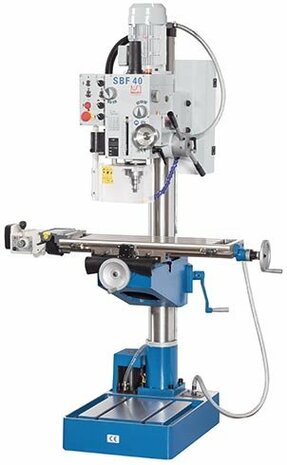

The SBF is a drilling and milling machine in the best way. It is ideal as a drill with a powerful drive and a wide speed range. You can also use this machine to mill steel and non-ferrous metals. This makes the SBF 40 a drill with additional benefits at an unbeatable price.

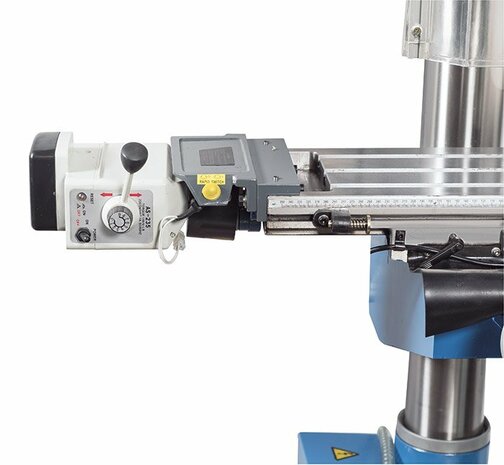

Infinitely variable feed on X axis
Automated drilling feed with depth display

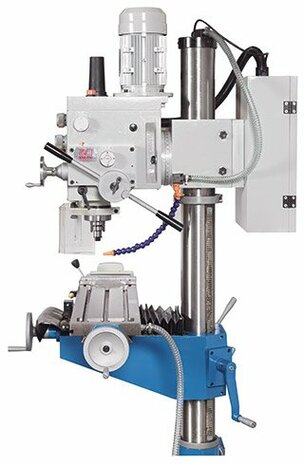

Gearbox milling head for powerful machining
Swiveling head for wide range of applications
Drilling and Milling - a true added value for a low price
Large compound sliding table with automatic infinitely variable feed on X-axis for coordinate drilling and light milling work
Quiet operation with oil-bath lubricated gears for long tool life and durability
The milling machine's high-quality spindle bearing can withstand higher loads for the long term
Manual drill feed can be switched to high-precision feed via a hand-wheel
Controllable automatic feed with 3 gear steps
Adjustable height of gear head and table
Table guides are adjustable with high precision via taper gibs

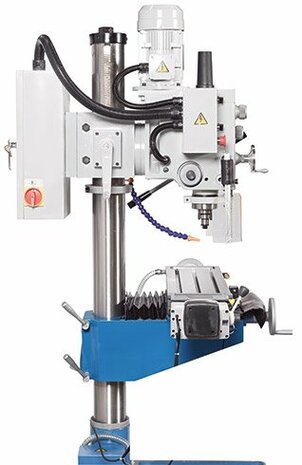

Gear head swivels to both sides
Cutter mounts are secured by an M16 drawbar
Tapping feature

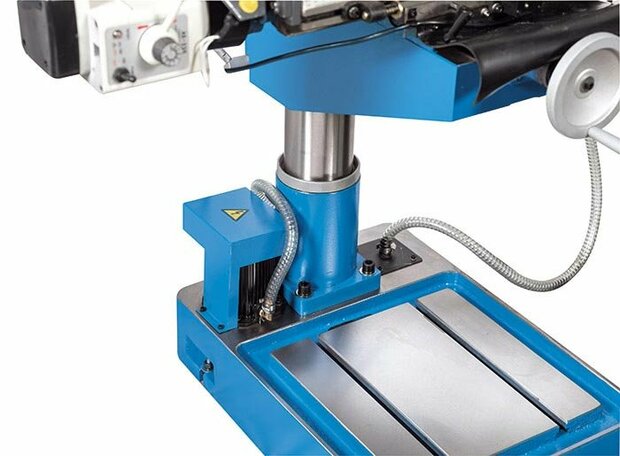

Integrated coolant system
Working area
Table set up area    730 mm x 210 mm
Table load capacity (max.)    100 kg
Number of table T-slots    3 positions
T-slot table (width x spacing)    14 mm x 63 mm
T-slot foot (qty)    2 positions
T-slot foot (width x spacing)    14 mm x 200 mm
Quill stroke    120 mm
Throat    278 mm
Column diameter    115 mm
Spindle nose-to-table surface distance    600 mm
Spindle nose-to-foot distance    1180 mm
Drilling capacity in steel / ST37    40 mm
Head swivel range    ± 45°
Tapping capacity, steel    (ST 37) M16
Travels
Travel X-axis    500 mm
Travel Y-axis    190 mm
Z1 / Z2 axis travel    530 mm
Headstock
Speed range    75 1/min - 3200 1/min
Spindle mount    MK 4 DIN 228
Rapid feed    600 mm/min
Work feed    0 mm/min - 420 mm/min
Drive capacity
Main motor rating    1,5 / 1,1 kW
Motor rating coolant pump    0,04 kW
Measures and weights
Overall dimensions (length x width x height)    0,83 m x 0,76 m x 1,85 m
Weight    390 kg
