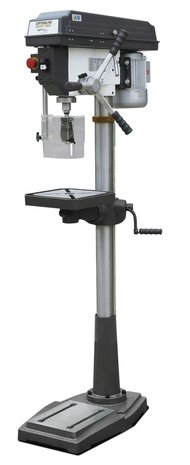

Column drilling machine diameter 25 mm 1x230V

Column drilling machine diameter 25 mm 1x230V
Column drilling machine with belt / belt drive.
Advantages:
Drilling in steel up to 25 mm
Milling cone MK3
12 speeds
Motor 750 Watt with aluminum housing, 1x230V
Heavy own weight 71 kg
Features:
Guaranteed concentricity accuracy better than 0.03 mm measured in the drill spindle
Quiet high quality electric motors
Spindle with precision ball bearing

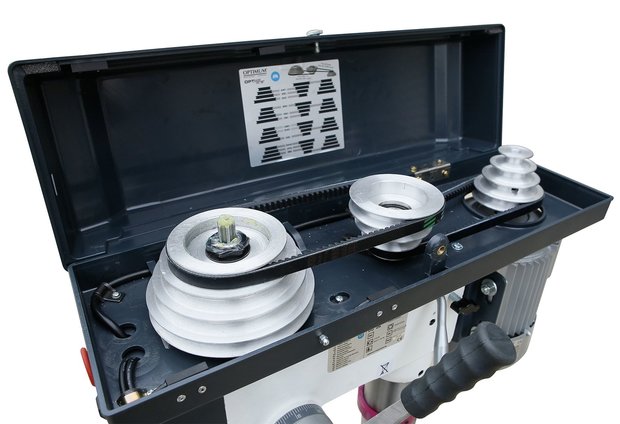

Quieter running due to aluminum belt pulleys
Thanks to the quality GATES toothed belts, the machine has significantly better power transmission and significantly less performance loss
Drilling depth stop
Precision machined worktable with T-slots in diagonal pattern, swivels from -45° to +45° and rotates 360° around the column. The table is easily adjusted in height by means of a wide toothed bar.
Solid, large base plate with T-slots
Long, ergonomic star-shaped handle in one piece with "soft grip
Safeguards:
User-friendly control buttons with separate start and stop button and separate emergency stop in IP54
No-load voltage
With double electrical safety channel
Solid drill shield double window equipped with safety switch
V-cutter equipped with safety switch
Supplied as standard with:
Quick-action chuck 1-16 mm B16
Cone shank according to DIN228 MK3/B16
2 T-nuts for T-slot 14 mm and thread M12
English manual, inscriptions, CE-mark, and CE-declaration according to Machine directive 2006/42/CE, and EMC directive 2014/30/EU
Voltage V 1x230
Power kW 0,75
Drilling cap. in steel S235JR mm 25
Drilling capacity in continuous use S235JR mm 20
Spindle mounting Morse Konus MK 3
Number of speeds 12
Spindle speed min-1 200-2,440
Drilling depth mm 80
Unloading mm 181
Column diameter mm 73
Table dimensions (w x d) mm 280x280
T-slots size/number/distance mm 14 diagonal
Swing-out drilling table ° +/-45
Drilling table rotatable ° 360
Distance spindle table mm 690
Distance spindle-foot mm 1200
Dimensions foot (w x d) mm 500x300
T-slots foot mm 14/120/2
Weight kg 69.00
Dimensions (l x w x h) mm 700x350x1.620
