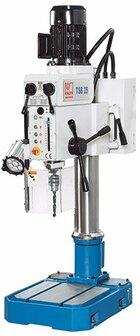

Column Drilling Machines TSB 25

Column Drilling Machines TSB 25
The TSB bench drill series impresses with its compact dimensions and high drilling performance for a wide range of applications. They are suitable for every workshop, from steel construction to repair shops. The machines have a main spindle gearbox for high torque and a particularly wide speed range. A swiveling drill head enables drilling at an angle. The TSB 35 also has an automatic quill feed for large drilling diameters.
Compact table design
Swiveling drill head
Manual transmission for high torque
Drilling capacity 25 mm
Throat 240 mm
Spindle nose-to-foot distance 650 mm
Spindle speed (6) 125-2825 rpm
Spindle mount MT 3
Rigid cast-iron construction
Height-adjustable machine head
6 speed steps
Rectangular table with T-slots and circumferential coolant groove
Working area
Drilling capacity    25 mm
Tapping capacity, steel    M 16
Foot set up area (length x width)    310 mm x 320 mm
Vertical head travel    470 mm
Spindle nose-to-foot distance    650 mm
Throat    240 mm
Column diameter    95 mm
Headstock
Spindle speed    125 1/min - 2825 1/min
Spindle mount    3 MT
Quill stroke    110 mm
Feed
Quill feeds    - mm/R
Drive capacity
Motor rating main drive    0,75 kW
Measures and weights
Overall dimensions (length x width x height)    0,7 m x 0,41 m x 1,56 m
Weight    220 kg
