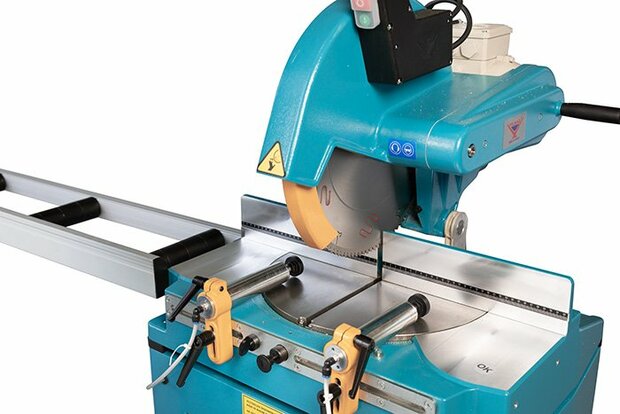

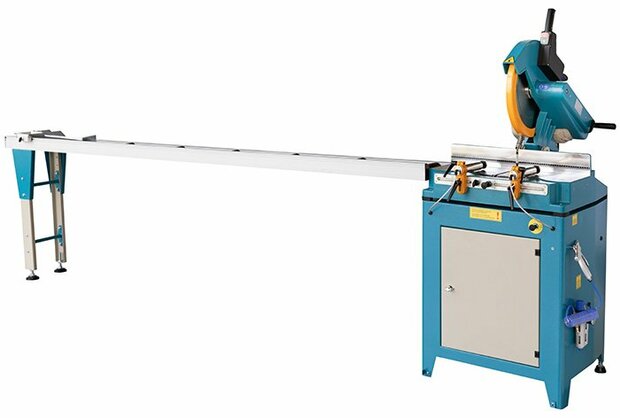

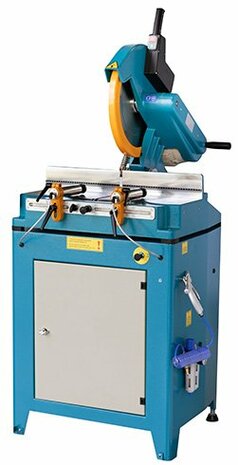

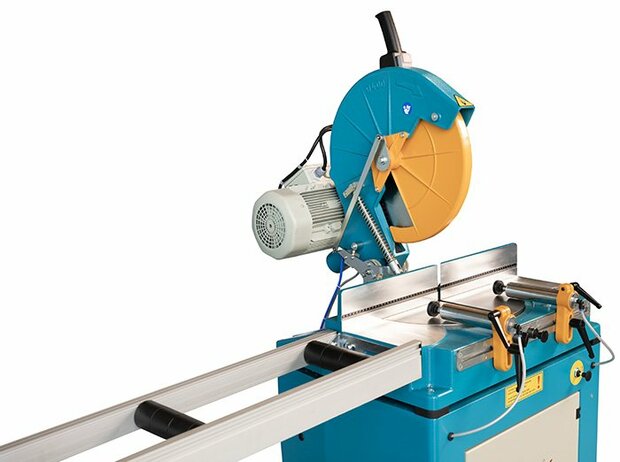

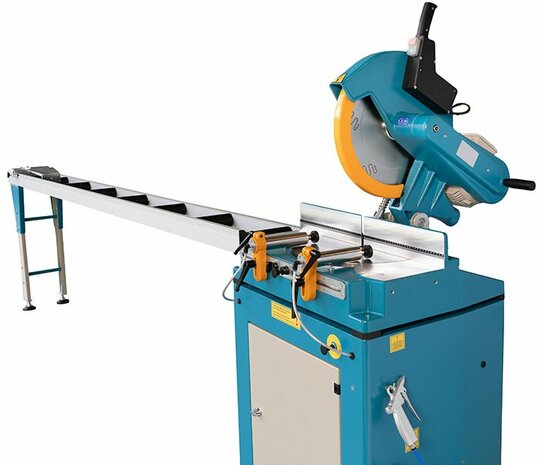

Circular Sawing Machines KAS 400 P

Circular Sawing Machines KAS 400 P
KAS series machines are designed for optimal machining of aluminum rods and aluminum profiles. The saw head can be precisely set for mitering, and pneumatic gripping cylinders hold the workpiece. The included machine base provides storage space for versatile machine setup. With their compact design and angular accuracy, these machines are used in facade and window construction and also in mechanical and systems engineering, when light metals must be cut to length with little or no reworking.
High speed for aluminum cutting
Angle cutting in both directions

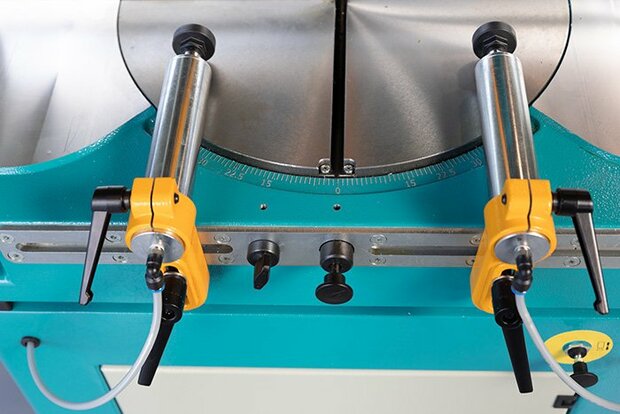

Dual vise with pneumatic clamping

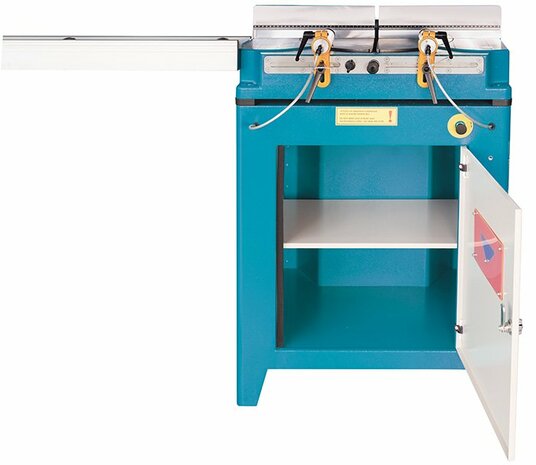

Rigid machine base included
Working area
Max. saw blade diameter    400 mm
Shaft diameter    32 mm
Speed    3000 1/min
Sleeve stroke    35 mm
Working height    900 mm
Cutting Capacities
Cutting capacity 0° (round)    138 mm
Cutting capacity 0° (square)    138 mm
Cutting capacity 0° (flat) (length x width)    205 mm x 125 mm
Cutting capacity 45° (round) L    125 mm
Cutting capacity 45° (square) L    125 mm
Cutting capacity 45° (round) R    125 mm
Cutting capacity 45° (flat) L (length x width)    145 mm x 125 mm
Cutting capacity 45° (square) R    125 mm
Cutting capacity 45° (flat) R (length x width)    145 mm x 125 mm
Drive capacity
Motor rating main drive    2,2 kW
Measures and weights
Overall dimensions (length x width x height)    0,66 m x 0,73 m x 1,6 m
Weight    123 kg
