Chuck protection monolithic screen 0-200mm

Chuck protection monolithic screen 0-200mm

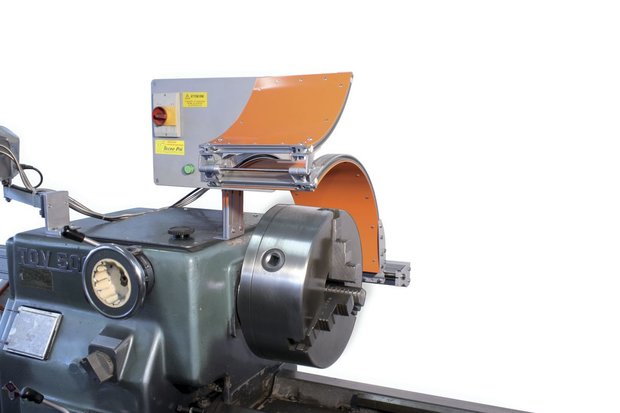

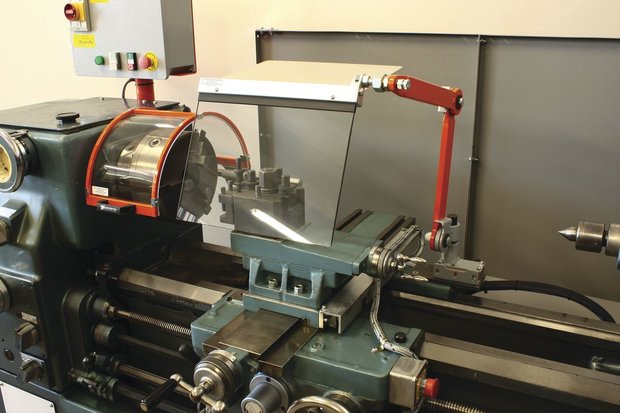

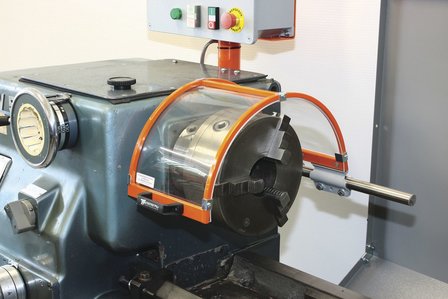

Chuck guard for lathes with monolithic screen.
Features:
Third generation safety guard for chucks "Made in EU".
Equipped with a full monolithic screen.
Thermoformed screen in shockproof and oil resistant material.
Protects the operator from direct contact with the upper part of the chuck and from splashing lubricant - coolant.
Equipped with a microswitch n.2 NC contacts, is a positive contact as described in EN 60947-5-1
The only one that can be positioned up to the machine head.
Frontal and lateral attachment to the base
Suitable for:
conventional lathes, universally applicable
Delivered with:
CE mark
CE certificate
Instruction / assembly manual

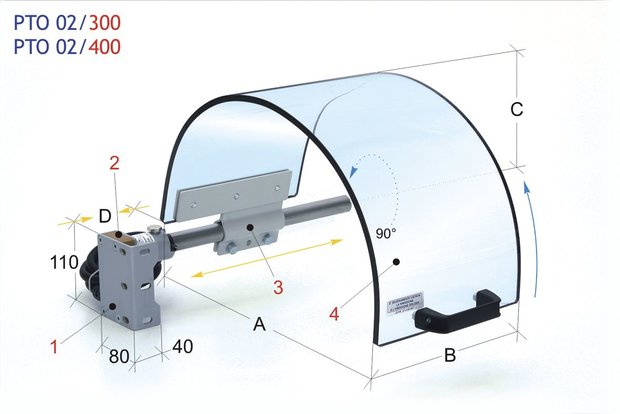

Content:
1 Frontal and lateral mounting bracket
2 Safety switch housing - 90° rotation - n.2 NC contacts
3 Screen mounting clamp with support arm - in pressed steel
4 Monolithic screen
Attention: a chuck shield always requires adjustments to mount on your lathe. A safety guard must be installed by qualified personnel. The estimated working time is about 2 hours, provided there is an emergency stop circuit. If you have any questions or if you want to install the circuit, you can always contact our technical service.
Tip: When choosing the size of the chuck guard, you should take into account the turning diameter above the bed, as well as the safety of the operator.
