Chuck guard large diameters 1000mm

Chuck guard large diameters 1000mm
Large diameter chuck guard.
Advantages:
Third generation safety guard for chucks "Made in EU".
Extremely strong production, designed for chucks up to a diameter of 1000 mm.
Features:
Equipped with a screen that can be opened totally or partially.
Available in different sizes.

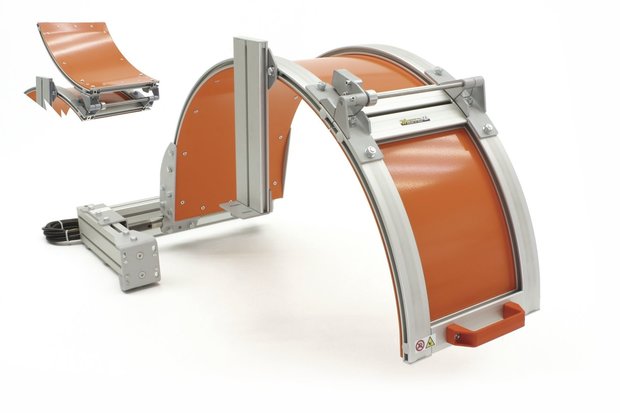

Semicircular screen divided into two parts that allows to open only the front (point 6) or completely, so that it turns away completely towards the back. In shockproof and oil resistant material.
Equipped with a microswitch n.2 NC contacts, is a positive contact as described in EN 60947-5-1.
Each shield bears the CE mark and is also supplied with its own CE certificate.
Protects the operator against direct contact with the upper part of the chuck and against splashing lubricant - coolant.

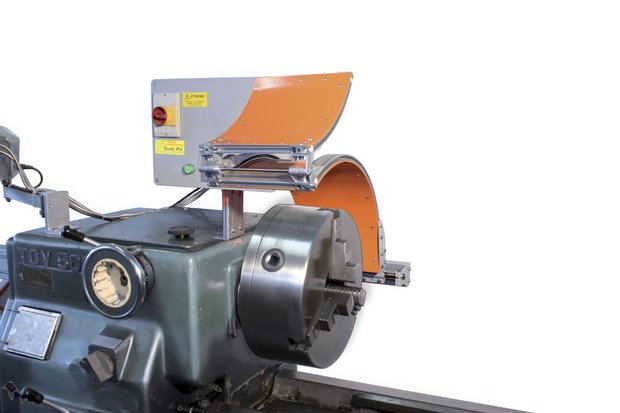

The strong support structure (point 1), fully adjustable to "X - Y", allows easy attachment to the rear of the lathe and, if necessary, also to the front.
1 Mounting and support structure of the screen, adjustable in X and Y axes.
2-3 Safety switches for the 2 screen opening systems - n.2 NC contacts
4 Adjustable structure to support the screen on the fixed head of the lathe
5 Screen made of aluminium sheet and profiles, completely retractable to the rear or lockable by a special system in the rotating axes.
6 Front part of the screen designed to be opened frequently during machining operations.
Attention: a chuck shield always requires adjustments to mount on your lathe. A safety guard must be installed by qualified personnel. The estimated working time is about 3 hours, provided there is an emergency stop circuit. If you have any questions or if you want to install the circuit, you can always contact our technical service.
When choosing the size of the chuck guard, you must take into account the diameter of the rotation above the bed and the safety of the operator.
A mm 1000
W mm 350
Slot depth mm 500
D mm 265-475
E mm 5-70
Weight kg 19,00
