Chip extractor 1,5 kw 3 x 400V

Chip extractor 1,5 kw 3 x 400V Mobile chip extractor for 1 or 2 woodworking machines. Characteristics: Version in 3 x 400 V Chip extractor allows you to improve the performance of woodworking...

Item number

: T2g-TV 37151281937

€ 742,50 *

€ 598,95 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

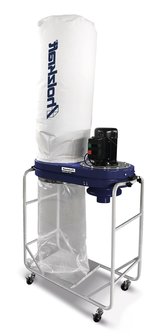

Chip extractor 1,5 kw 3 x 400V
Mobile chip extractor for 1 or 2 woodworking machines.
Characteristics:
Version in 3 x 400 V
Chip extractor allows you to improve the performance of woodworking machines and provides a safe, healthy and pleasant working environment.
4 rotatable wheels, moves easily in small workshops
The suction nozzle and motor can be tilted 180°, so that the machine can also be connected to pipes from above
Fan casing and frame made of sheet steel
Fan screw made of metal, in blade shape for increased suction power
Reduced dust content due to double woven filter bag cat G1
Quick-release fastener for filter bag and chip bag
Supplied with:
1 filter bag 5 microns, 1 chip bag PVC
Voltage V 3 x 400
Power kW 1,5
Connection to device mm 2 x ø 100
Maximum volume flow m³/h 1900
Maximum vacuum PA 1700
Filter surface m² 1.92
Chip bag volume l 110
Noise level dB(A) 85.7
Connection hose mm 1 x 100, 1 x 120
Weight kg 39.00
Dimensions (l x w x h) mm 1,000x500x2,100
