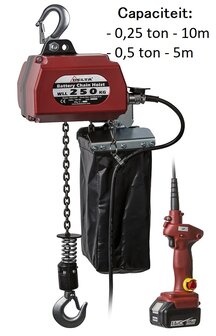

Battery Chain Hoist 18V DC 5 / 10 meters lifting height
Battery Chain Hoist 18V DC 5 / 10 meters lifting height Supplied with spare battery and charger, easy to install for quick use, easy to operate and transport due to its low weight and portable...

Item number

T2g-HD 758756

€ 1.921,58 *
€ 1.660,80 *
Quantity:
Order

Wishlist

Do you have a question about this product?

Ask us your question

Battery Chain Hoist 18V DC 5 / 10 meters lifting height
Supplied with spare battery and charger, easy to install for quick use, easy to operate and transport due to its low weight and portable case, ldeal for applications without power supply, battery capacity: 25min at maximum load, swivel load hook with safety valve, supplied ready to use with control switch and chain box, complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.
Voltage - 18V (5.0Ah 90Wh) rechargeable li-ion battery
Lifting speed - Variable speed (during lowering)
Hoisting chain - Galvanized load chain according to EN 818-7
Control cable - Standard ≈ 3 meters
Power cable -
Housing protection - IP 54
Steering protection - IP 50
Classification - M4/1Am (ISO/FEM)
Duty cycle / Starts per hour - 30% / 180
Insulation class - F
Operating temperature -10°C - +40°C
Load type - Only for goods, not suitable for lifting people
Switch - Switch with emergency stop
Overload protection - Externally adjustable slipping clutch and digital protection
Brake - Mechanical brake
Limit switch - Electromagnetic upper limit switch, lower position secured by slip clutch
Thermal protection - No protection
Capacity - 0.25 ton
Lifting height m - 10
Lifting speed m/min - 4.5
Hoisting chain diameter x mm - 4 x 12
Parts - 1
Energy consumption kw -
Net weight - 12kg
Capacity - 0.5 ton
Lifting height m - 5
Lifting speed m/min - 2.2
Hoisting chain diameter x mm - 4 x 12
Parts - 2
Energy consumption kw -
Net weight - 13.5kg
