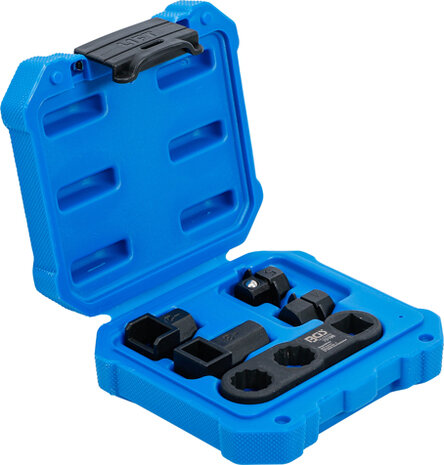

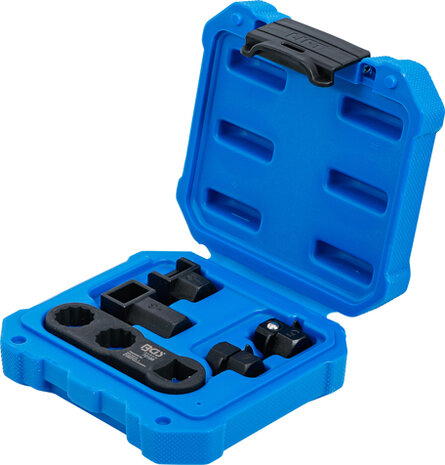

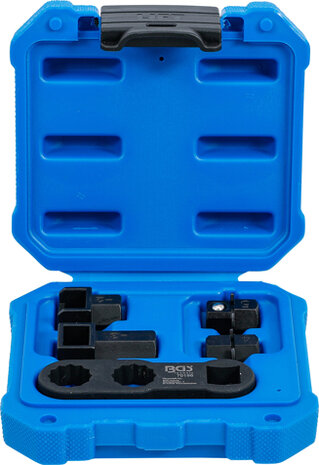

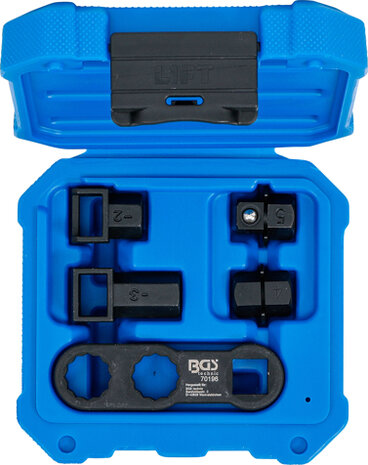

Auxiliary Belt Tensioner Tool Set for Citroen, Ford, Mazda, MINI, Peugeot, Toyota, Volvo

Auxiliary Belt Tensioner Tool Set for Citroen, Ford, Mazda, MINI, Peugeot, Toyota, Volvo
allows safe and controlled adjustment of the tensioner position when removing and installing the auxiliary belt
the tensioner has a peg on which the tool can be attached
to be used as OEM 01099, 0188-Z, G-01099, PZ4L0-G0109-90
suitable for following vehicles:
Citroën 1.4 / 1.6 HDi 8V / 16V C1 / C2 / C3 III / C3 Pluriel / C4 Picasso
Ford 1.4 / 1.5 / 1.6 TDCi / ECOnetic 8V / 16V B-MAX / C-Max / EcoSport / Fiesta / Focus / Focus C-Max / Fusion / Galaxy / Grand C-Max
Ford 1.4 / 1.5 / 1.6 TDCi / ECOnetic 8V / 16V Mondeo / S-MAX / Tourneo Connect / Tourneo Courier / Transit Connect / Transit Courier
Mazda 1.4 / 1.6 TDCi 8V / 16V 2 (DE/DH) / 3 (BK/BL)
Mini 1.6 16V Clubman / Cooper / One (R55/R56)
Peugeot 1.4 / 1.6 HDi 8V / 16V 1007 / 107 / 206 / 206 CC / 206 SW / 307 / 307 SW / 508
Toyota 1.4 DiD 8V Aygo
Volvo 1.6 D4 16V C30 / S40 / S80 / V50 / V70
1.4 2WZTV / 8HT (DV4TD) / 8HX (DV4TD) / 8HY (DV4TED4) / 8HZ (DV4TD) / DV4 / DV4TD (8HZ/8HX/8HT) / F6JB / F6JD / KVJA
1.5 AEDA / NUG / UGCA / UGCB / UGCC / UGJC / UGJE / UGJG / XUCA / XUCC / XUCD / XUGA / XUJA / XUJB / XUJC / XVCA / XVCB
1.5 XVCC / XVGA / XVGB / XVGC / XVJA / XVJB / XVJC / XVJD / XVJE / XWDA / XWDB / XWDC / XWDD / XWDE / XWGA / XWGB
1.5 XWJA / XXDA / XXDB / XXDC / XXDD
1.6 9H01 (DV6TED4) / 9HX (DV6ATED4) D4164T / DV6 / DV6ATED4 (9HX) / DV6TED4 (9HY/9HZ) / G8DA / G8DB / G8DC
1.6 G8DD / G8DE / G8DF / GPDA / GPDB / GPDC / HHDA / HHDB / HHJA / HHJB / HHJC / HHJD / HHJE / HHJF / MTDA
1.6 MZ-CD (Y6) / NGCA / NGDA / NGDB / T1BA / T1BB / T1BC / T1WA / T1WB / T3CA / T3CB / T3CC / T3DA / T3DB / T3JA
1.6 T3JB / TZGA / TZGB / TZJA / TZJB / U3CA / UBGA / UBJA / W16 D16 (9HZ) / Y6
2.0 DW10
2.2 DW12
Technical data
To be used as OEM6    1099 | 0188-Z | G-01099 | PZ4L0-G0109-90 Toyota
To be used as OEM1    1099 | 0188-Z | G-01099 | PZ4L0-G0109-90 Citroën
To be used as OEM5    1099 | 0188-Z | G-01099 | PZ4L0-G0109-90 Peugeot
To be used as OEM2    1099 | 0188-Z | G-01099 | PZ4L0-G0109-90 Ford
To be used as OEM3    1099 | 0188-Z | G-01099 | PZ4L0-G0109-90
To be used as OEM4    1099 | 0188-Z | G-01099 | PZ4L0-G0109-90
To be used as OEM7    1099 | 0188-Z | G-01099 | PZ4L0-G0109-90 Volvo
Gross weight    364 g
