Name: Automatic reel for electric cable 19 m - 3 x 2,5 mm²
Brand: ZECA
Price: 422.29 EUR
Availability: InStock

Customers reviews

Products

Automatic reel for electric cable 19 m - 3 x 2,5 mm²

Automatic reel for electric cable 19 m - 3 x 2,5 mm² ZECA 3 x 2.5mm² cable reel with RNF rubber cable. Characteristics : Shockproof synthetic case Industrial rubber cable H07 RNF with...

Item number

: T2g-TV 27562057227

€ 523,50 *

€ 422,29 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

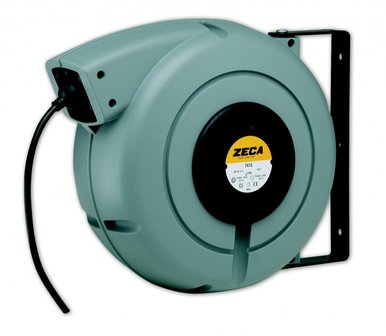

Automatic reel for electric cable 19 m - 3 x 2,5 mm²
ZECA 3 x 2.5mm² cable reel with RNF rubber cable.
Characteristics :
Shockproof synthetic case
Industrial rubber cable H07 RNF with 3 wires (3 x 2.5 mm²)
Winding and unwinding by a click mechanism
fairlead
The click mechanism can be disassembled if constant feedback is required (eg for applications in engineering)
Swivels 180 ° left-right
CE compliant and IP42 protection class
Copper bushing, insulated up to 2.5 kV
Operating temperature from -5 to +50 ° C
Grounding with double contact
Without connection cable or plugs
Without thermal protection
Cable length   m   19
Voltage   V   230
Authorized power rolled   W   2000
Authorized power unrolled   W   3000
Cable type       H07RN-F
Number of conductors       3G
Conductors section   mm²   2,5
Cable diameter   mm   11,5
speedcontrol       Has not the characteristic
Maximum voltage   V   750
IP       42
Operating temperature   °C   -5 / +50
Weight   kg   9,90
Dimensions (b x d x h)   mm   430x210x400
