Automatic reel for electric cable 10 m - 3 x 1,5 mm²

Automatic reel for electric cable 10 m - 3 x 1,5 mm² Cable reel 3G1,5 mm² with rubber RNF cable, without sockets. Characteristics : Shockproof synthetic frame RNF neoprene rubber...

Item number

: T2g-TV 57562050257

€ 262,50 *

€ 211,75 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

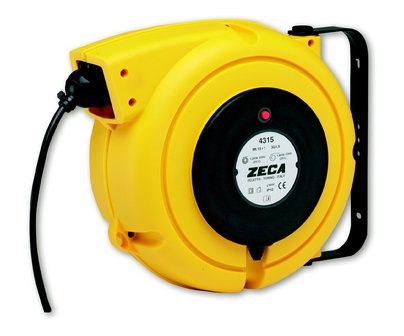

Automatic reel for electric cable 10 m - 3 x 1,5 mm²
Cable reel 3G1,5 mm² with rubber RNF cable, without sockets.
Characteristics :
Shockproof synthetic frame
RNF neoprene rubber cable with 3 wires (3G1.5 mm²)
Rolls up and unfolds by click mechanism
With cable guide
The click mechanism can be dismantled if constant feedback is required (eg in engineering)
Swivels 80 ° left-right
CE compliant and IP42 protection class
Copper bushing, insulated up to 2.5 kV
Operating temperature from -5 to +50 ° C
Grounding with double contact
Without plugs and without connecting cable
With thermal protection
Cable length   m   10
Voltage   V   230
Authorized power rolled   W   1200
Authorized power unrolled   W   1800
Cable type       H07RN-F
Number of conductors       3G
Conductors section   mm²   1,5
speedcontrol       Has not the characteristic
Maximum voltage   V   750
IP       42
Operating temperature   °C   -5 / +50
Weight   kg   4,25
Dimensions (b x d x h)   mm   360x185x310
