Arbor Press

Arbor Press For driving in and driving out arbors, bushings, spindles, pins, or for keyway broaching. These simple, yet highly stable C-frame presses are indispensable in many mechanics and repair...

Item number

: T2g-MK 537109

€ 270,00 *

€ 261,00 *

Choose* 537109: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

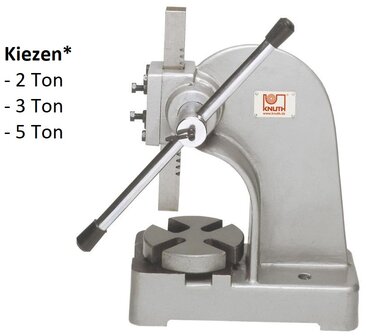

Arbor Press
For driving in and driving out arbors, bushings, spindles, pins, or for keyway broaching. These simple, yet highly stable C-frame presses are indispensable in many mechanics and repair shops.
Compact design
Heavy one piece casting design
For a wide range of applications
Base is not included
For press-fitting and pulling bearings
Aligning, bending
Broaching
- 2 ton
Working area
Press force   10 kN
Throat   145 mm
Workpiece thickness (max.)   215 mm
Ram dimensions   31 mm x 31 mm x 336 mm
Measures and weights
Overall dimensions (length x width x height)   0,4 m x 0,17 m x 0,42 m
Weight   45 kg
- 3 ton
Working area
Press force   15 kN
Throat   155 mm
Workpiece thickness (max.)   282 mm
Ram dimensions   35 mm x 35 mm x 450 mm
Measures and weights
Overall dimensions (length x width x height)   0,45 m x 0,2 m x 0,56 m
Weight   69 kg
- 5 ton
Working area
Press force   20 kN
Throat   220 mm
Workpiece thickness (max.)   400 mm
Ram dimensions   50 mm x 50 mm x 645 mm
Measures and weights
Overall dimensions (length x width x height)   0,64 m x 0,37 m x 0,82 m
Weight   163 kg
