Air hydraulic Jack mobile 25 / 50 ton

Air hydraulic Jack mobile 25 / 50 ton short compact design, therefore easy to maneuver hydraulic system supported by compressed air for easy lifting large support surface for safe standing...

Item number

: T2g-B 74287

€ 1.015,36 *

€ 603,79 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

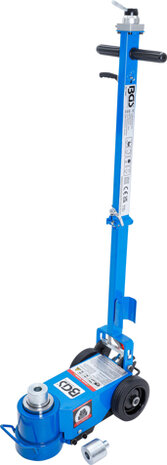

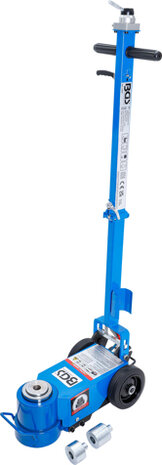

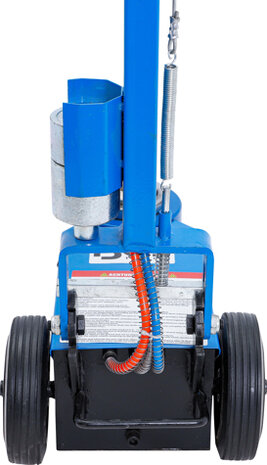

Air hydraulic Jack mobile 25 / 50 ton
short compact design, therefore easy to maneuver
hydraulic system supported by compressed air for easy lifting
large support surface for safe standing
2-steps
with an initial height of 165 mm, it is possible to get under practically any axle of medium and small commercial vehicles
overload protection by overload pressure valve
maximum lifting height is achieved by the two adapters included in delivery
diameter plate: 98 mm
ground clearance: 165 mm
rear width: 280 mm
width in front: 160 mm
length lever: 11600 mm
diameter handle: 50 x 30.5 mm
height of adapters: 40, 60 mm
cylinder diameter: 136 mm
air requirement: 35 - 40 l/min
Technical data
Length   520 mm
Gross weight   38200 g
Rated load capacity   25 | 50 t
Lifting height   165 mm
Min. height   165 mm
Max. height   330 mm
Working pressure   8 - 12 bar
Wheel diameter   155 mm
