Air and water reel 20m - 10mm with kpu hose

Air and water reel 20m - 10mm with kpu hose Open air and water reels with KPU hose. Characteristics: Suitable for compressed air and water up to 20 bar Atex 'Ex' according to 94/9/CE...

Item number

: T2g-TV 37562058737

€ 583,50 *

€ 470,69 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

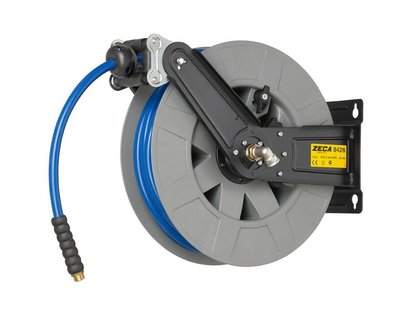

Air and water reel 20m - 10mm with kpu hose
Open air and water reels with KPU hose.
Characteristics:
Suitable for compressed air and water up to 20 bar
Atex 'Ex' according to 94/9/CE
Shockproof open ABS housing
KPU hose, polyester reinforced. does not kink, and remains smooth in any temperature
Unrolling with a click mechanism
Click mechanism can be disassembled if constant retraction is required (e.g.: application in mechanical engineering)
With open hose guide with 4 guides
Fixed steel wall base with epoxy powder coating
High quality low friction self-lubricating roller bearings
Thread connection to input and output
Hose length m 20
Internal diameter mm 10
Max pressure bar 20
Cable quality kpu
Operating temperature °C -10/+50
Connection in 1/2 "F / out 3/8 "M
Weight kg 13.20
Dimensions (l x w x h) mm 550x270x505
