Air Spot Welding Cutter Set

Air Spot Welding Cutter Set for milling spot welded joints when renewing car body components with removable clamping bracket for holding and fixing the workpiece robust machine housing special...

Item number

: T2g-GL B 70915

€ 724,84 *

€ 460,00 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

Air Spot Welding Cutter Set
for milling spot welded joints when renewing car body components
with removable clamping bracket for holding and fixing the workpiece
robust machine housing
special gear for high torque
suitable for HSS and TCT drills
suitable for continuous operation
ideal for inside and outside welding spots
cold insulated handle
chuck size: 8 mm
free speed (adjustable in 6 positions): 450 / 700 / 900 / 1200 / 1800 / 2400 rpm

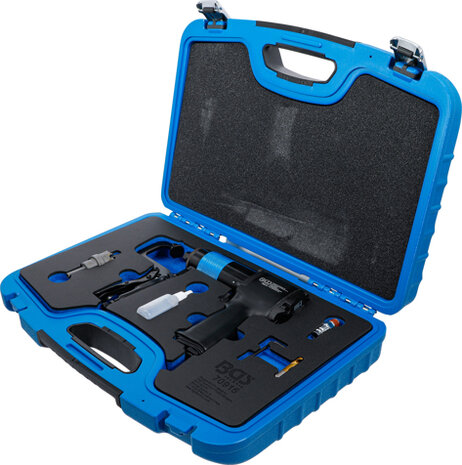

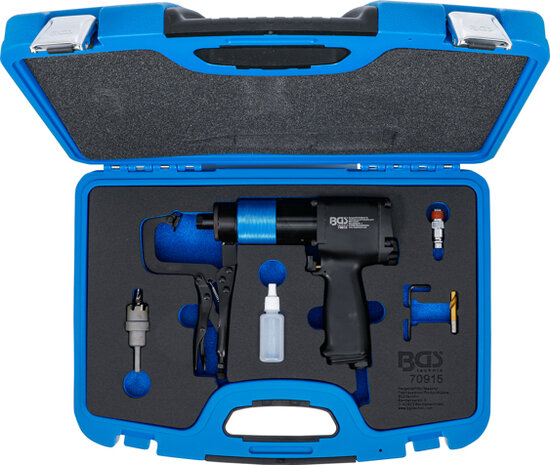

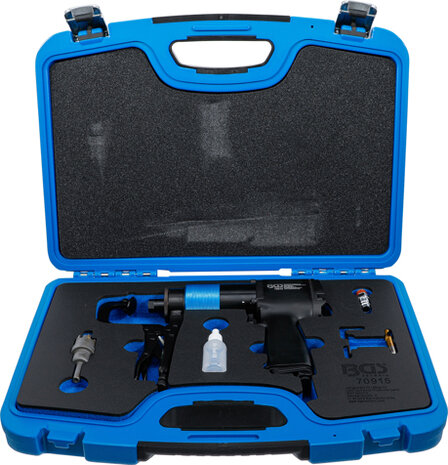

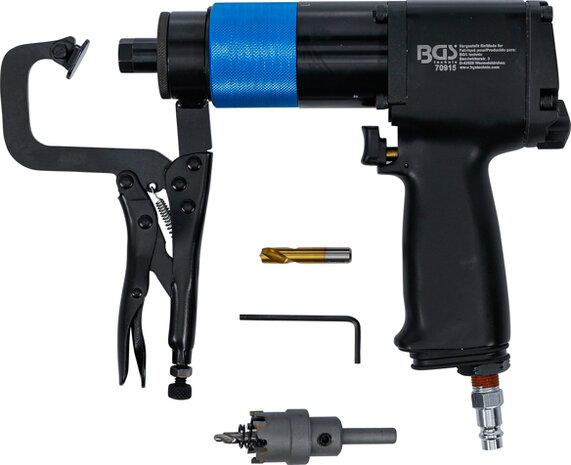

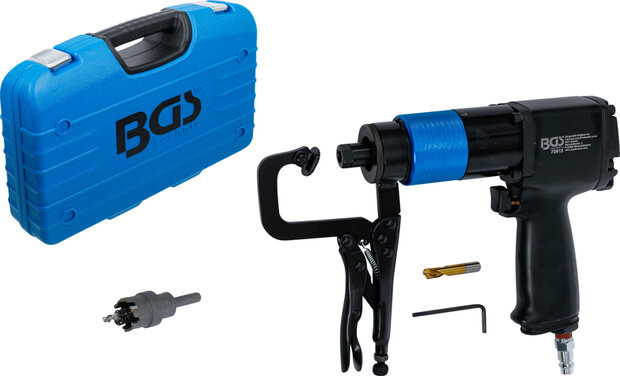

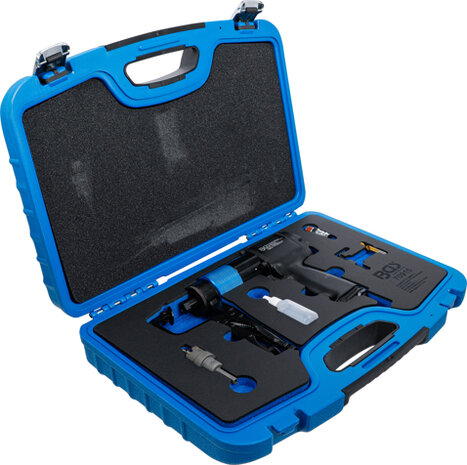

scope of delivery:
1 air spot welding cutter
1 weld spot grinder, Ø 8 mm
1 hole cutter, Ø 25 mm
1 air nipple, 6.3 mm (1/4")
1 L-type wrench, internal hexagon, 3 mm
Technical data
Length   200 mm
Gross weight   4116 g
Sound power level max.   101,4 dB(A)
Sound pressure level max.   90,4 dB(A)
Vibration   3,55 m/s²
Unsicherheit K   0,18 m/s²
Air consumption   99,1 l/min
Working pressure   6,2 bar
Compressed air connection   1/4 "
Recommended hose inner diameter   10 mm
