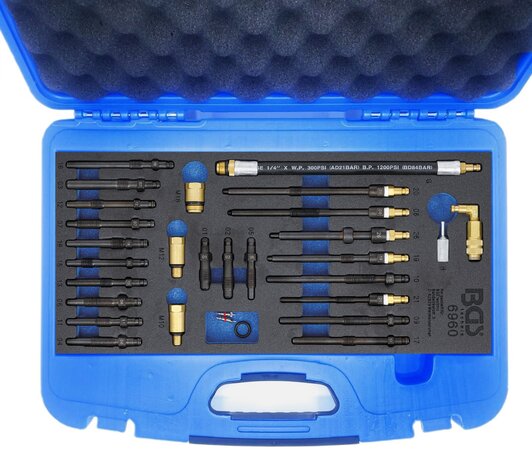

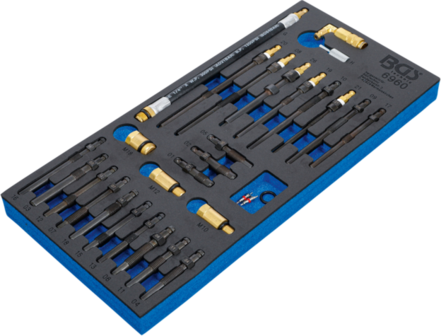

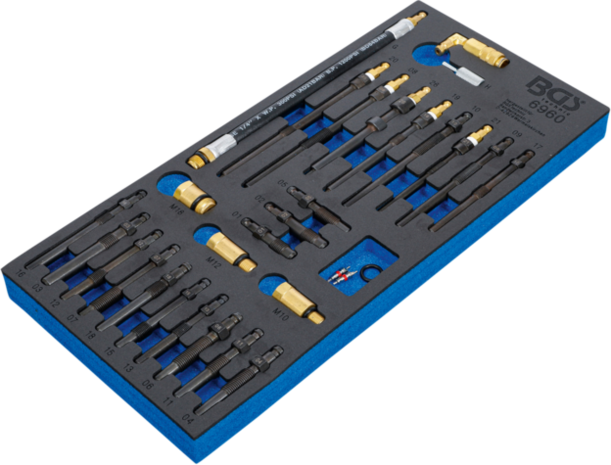

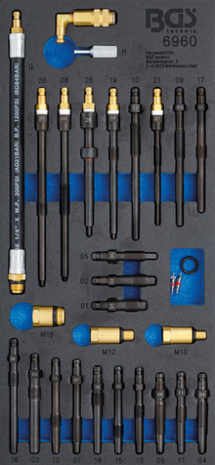

Adaptor Set for Compression and Pressure Loss Tester 30 pcs
for pressure loss and compression measurements on diesel and gasoline engines
includes adapters for glow plug and spark plug threads
suitable for the following models:
Alfa Romeo, Audi, BMW, Chrysler, Citroën, Daewoo, Fiat, Ford, Honda, Hyundai, Isuzu, Jeep, Kia, Lada, Lancia, Land Rover, LDV, Mazda, Mercedes, Mitsubishi, Nissan, Opel, Peugeot, Range Rover, Renault, Rover, Saab, Seat, Skoda, Suzuki, Toyota, Vauxhall, Volvo, VW
dial gauge for pressure loss and compression measurements are required
the following sets or dial gauges are suitable:
Compression Tester Set for Petrol and Diesel engines (BGS 8400)
Compression and Pressure Loss Tester Set for Petrol and Diesel engines (BGS 8401)
Compression Tester Set for Diesel engines (BGS 8008)
scope of delivery:

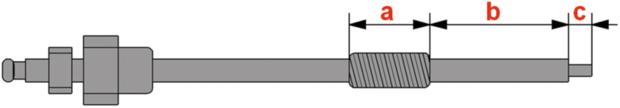

adapter for glow plug thread M10 x 1.25 | a=11 | b=8 mm
adapter for glow plug thread M12 x 1.25 | a=12 | b=8 mm
adapter for glow plug thread M12 x 1.25 | a=11 | b=47 mm
adapter for glow plug thread M10 x 1.25 | a=22.5 b=23.5 mm
adapter for glow plug thread M10 x 1.25 | a=18.5 | b=10.5 mm
adapter for glow plug thread M10 x 1.25 | a=28 | b=16 mm
adapter for glow plug thread M10 x 1.25 | a=23 | b=9.5 mm
adapter for glow plug thread M10 x 1.25 | a=28 | b=55 | c=3 mm
adapter for glow plug thread M10 x 1.25 | a=26 | b=59 mm
adapter for glow plug thread M10 x 1.25 | a=29 | b=73 mm
adapter for glow plug thread M10 x 1.25 | a=15 | b=27 mm
adapter for glow plug thread M10 x 1.0 | a=12 | b=23 mm
adapter for glow plug thread M10 x 1.0 | a=12 | b=31 mm
adapter for glow plug thread M10 x 1.0 | a=12 | b=14 mm
adapter for glow plug thread M10 x 1.0 | a=12 | b=59 mm
adapter for glow plug thread M10 x 1.0 | a=12 | b=47 mm
adapter for glow plug thread M10 x 1.0 | a=12 | b=42 mm
adapter for glow plug thread M10 x 1.0 | a=12 | b=64 | c=5 mm
adapter for glow plug thread M10 x 1.0 | a=12 | b=57 | c=5 mm
adapter for glow plug thread M8 x 1.0 | a=18 | b=52 mm
clamp adaptor without thread
adapter for spark plug thread M10 x 1.0
adapter for spark plug thread M12 x 1.25
adapter for spark plug thread M18 x 1.5
test hose for spark plug adapter
angle piece with quick coupler
valve turning tool to change the adapter valves
replacement O-ring and valves
Technical data
Gross weight 1344 g
