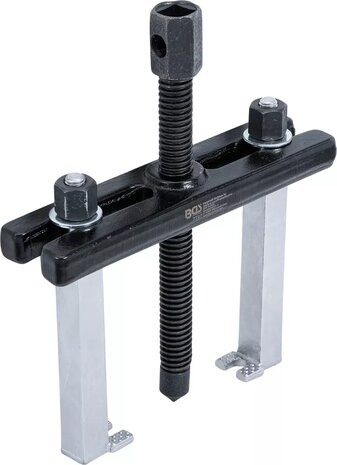

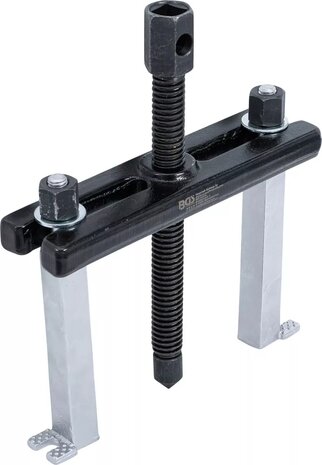

External / internal Puller, 2-arm 40 - 145 mm / 70 - 170 mm

External / internal Puller, 2-arm 40 - 145 mm / 70 - 170 mm

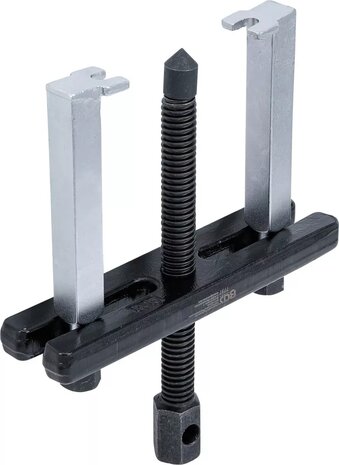

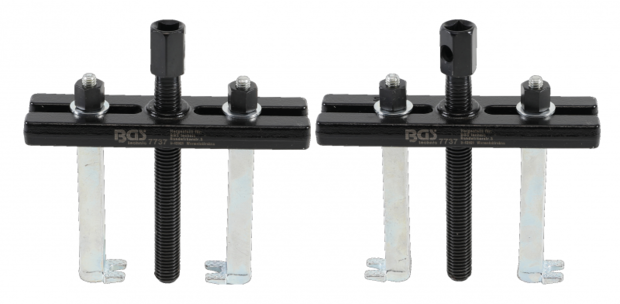

suitable as inside and outside puller
Clamping range as inside puller 40 - 145 mm
Clamping range as external puller 70 - 170 mm
slotted puller arm also suitable for small sleeves, bearing, gears, pulleys etc.
structured puller arm for better grip

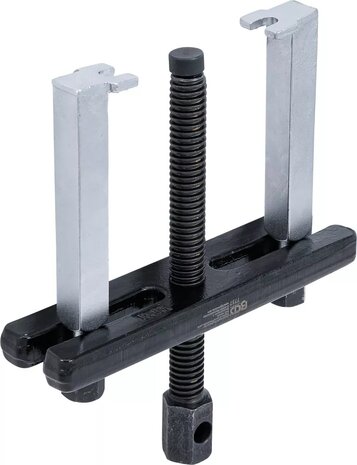

good centering by cone-shaped pressure piece
incl. flat pressure piece
spindle drive is possible via internal square 1/2", external hexagon 21 mm or rod
spindle made of carbon steel
Technical data
Clamping depth    100 mm
Hooked footh    14 mm
Hook length    31,5 mm
Drive    Slinding Handle
Wrench size 1    12,5 mm (1/2") | Gleitgriff
Min. clamping width    40 mm
Spindle length    155 mm
Hex drive size    21 mm
Max. clamping width    145 mm
Hook foot thickness at the top    6,5 mm
Max. clamping width inside puller    145 mm
Min. clamping width inside puller    40 mm
Min. clamping width outside puller    70 mm
Max. clamping width outside puller    170 mm
Hook foot opening    8 mm
Gross weight    1780 g
Drive profile 1    Internal square
Drive profile 2    External hexagon
Drive profile 1, inch    1/2 "
Drive profile size 1, metric    12,5 mm
