Repair Kit for Glow Plug Threads for Audi, VW 28 pcs

Repair Kit for Glow Plug Threads for Audi, VW 28 pcs
for quick and professional drilling out damaged or torn-off glow plugs without removing the cylinder head
allows re-cutting or repairing of the glow plug thread and cleaning of the electrode bore
exact depth and drilling angle are reached using guide sleeves
suitable for M10 x 1 glow plug thread bores, e. g. on VW Passat, Audi with TDI engines 2.5, 2.7, 3.0 V6 with engine codes AFB, AKE, AKN, ASB, AYM, BAU, BCZ, BDG, BDH, BFC, BKN, BKS, BMK, BNG, BSG, BUN, BUG

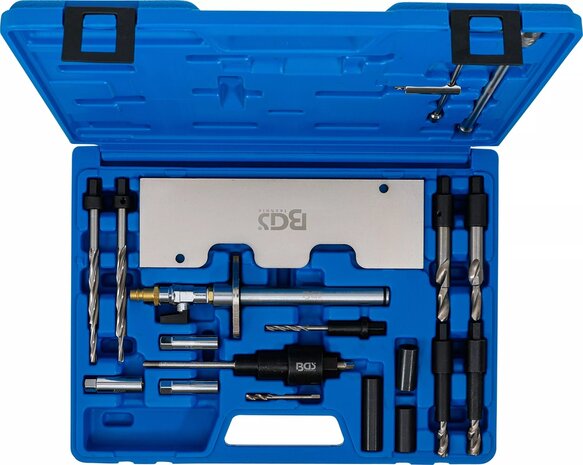

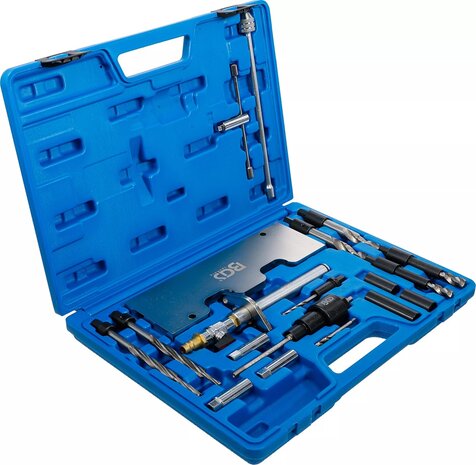

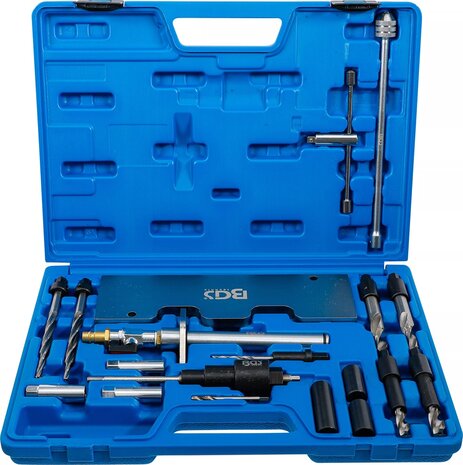

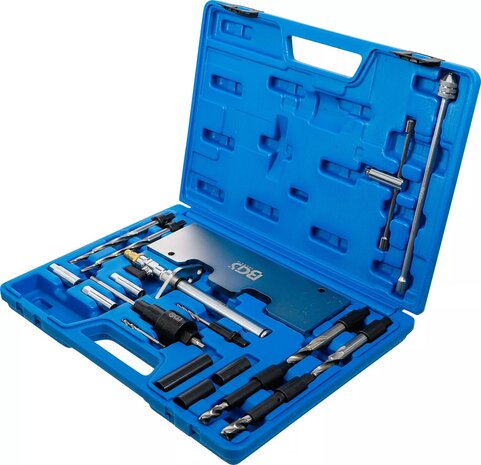

scope of delivery:
cover plate for intake ports
compressed air adaptor for injector bore
9.1 mm drill for M10 x 1
11.1 mm drill for M12 x 1
tap with guide sleeve for M10 x 1 threads
tap with guide sleeve for M12 x 1 threads
10 threaded inserts for M10 x 1 with external thread M12 x 1
taps M6 x 1.25 mm
extraction tool
2 reamers 4.8 mm, long and short type
reamer 5.8 mm long type
guide sleeves, Ø 17.5 mm OD - 38 mm length, inside Ø 9 mm
guide sleeves, Ø 17.5 mm OD - 38 mm length, inside Ø 13 mm
guide sleeves, Ø 17.5 mm OD - 63 mm length, inside Ø 13 mm
2.4 - 5.5 mm tapping holder 240 mm long with 6.3 mm (1/4") drive
3 extractor electrodes for 2.5 - 3.5 - 4 mm
Technical data
Gross weight    3980 g
