Gear Box Compression Test Kit

Gear Box Compression Test Kit
for professional diagnosis of automatic gear mechanism
long test hoses allow test from the driver’s seat
suitable for the following automatic gears:
VW, Mercedes-Benz, Honda, Hyundai, almost all series
Audi, VW 003, VW 010, VW 097, almost all ZF gears
BMW Borg Warner 65, almost all ZF gears
Chrysler A-Series rear-wheel drive, 32, 36, 42, 44, 46 RH + RE, A-series rear, 42LE, KM series, F3A
AMC / Eagle A604/41, 42LE, KM series, W4A32-1 ZF gears (Eagle Premier), MB-1, AR4, MJS (Renault), AW-4
Jeep A904, A999, A500, A518, A727, 30, 32RH Turbo HyDRY-Matic TH400
Ford A4LD, AOD, AXOD, ATX, C3, C4, C5, C6, AODE, E40D, 4R70W, 5R55E, AOT, Mazda gears 4EAT
GM Turbo Hydra-Matic, AL60E, 4L80E, AT60E Aisin Warner MX-1 + MS-7, JATCO KF-100
Isuzu Borg-Warner BW-35, AISIN Warner BW-35 JATCO F3A/F10, Hydra-Matic TH4L30E, 4L60E
Jaguar ZF gears, Borg-Warner 65, Hydra-Matic
Mitsubishi AISIN Warner, KM series, JATCO, torque Lite
Peugeot ZF gears, Mazda JATCO, Ford A4LD
Porsche 010 VW, ZF gears
Saab Borg-Warner 37, ZF gears
Toyota AISIN Warner A-20 + A-30, almost all models
Volvo AISIN Warner, Borg Warner, ZF gears

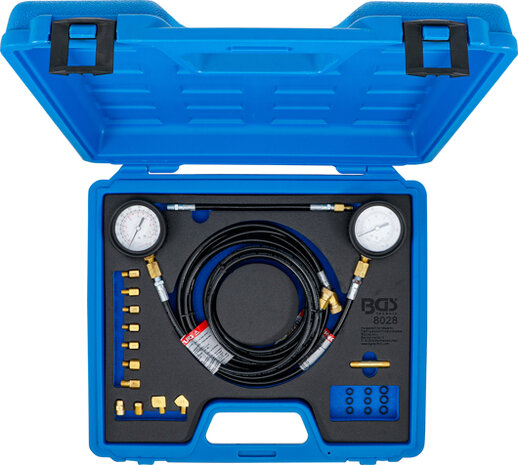

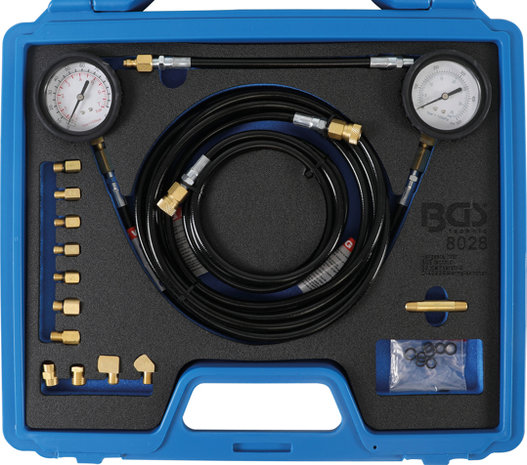

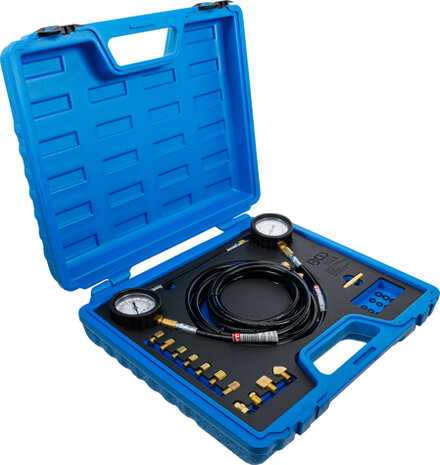

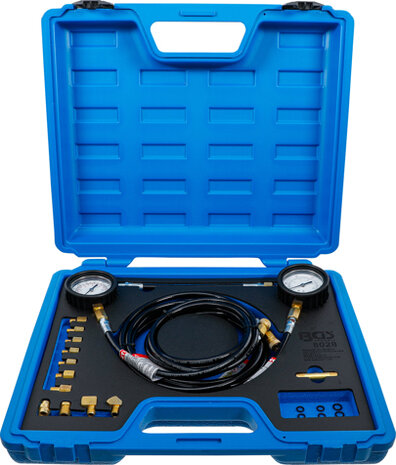

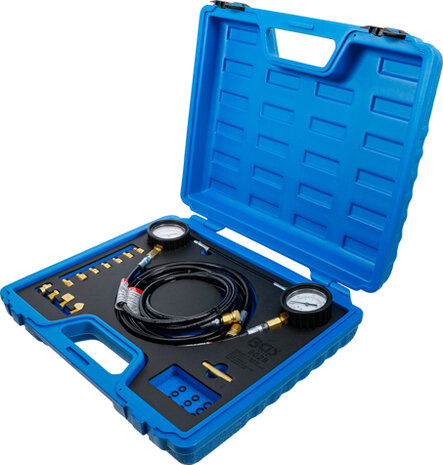

scope of delivery:
high-pressure pressure gauge 0 - 500 PSI (0 - 35 bar), diameter 60 mm, hose length: 350 cm
pressure gauge 0 - 100 PSI (0 - 7 bar) diameter 60 mm, tube length 200 cm
230 mm hose adaptor 1/8-27 to 1/4", quick coupling
Adaptor:
1/8-27 - M10x1.0
1/8-27 - 1/16-27 NPT
1/8-27 - 5/16-24 NF
1/8-27 - M8x1.25
1/8-27 - M8x1.0
1/8-27 VW Audi
1/8-27 - 1/8-28 BSPT
adaptor internal thread 1/8-27 - external screw thread 1/4-18 NPT
elbow: 1/8-27 - 90° + 1/8-27 - 45°
adaptor 1/8-27, length: 50 mm
Technical data
Gross weight    2634 g
