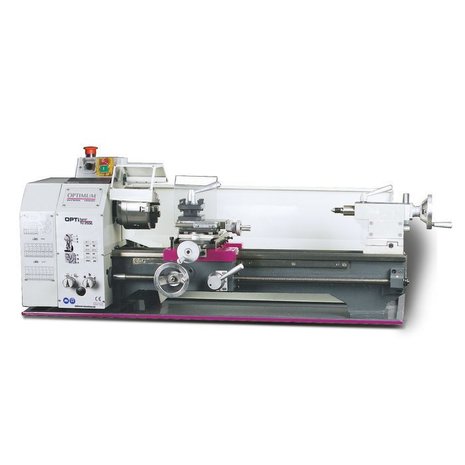

Lathe 250x550

Lathe 250x550
High-precision lathe for the demanding user.
Capacities:
Center height: 125 mm
Center length: 550 mm
Spindle bore: 26 mm
Trumps:
6 speeds 125 -2000 min-1
Smooth running feed drive with rounded gears, running in an oil bath
With a feed shaft for threading or automatic counterclocking
Selector switch right - left-handed
Suitable for:
Flat-turning, twisting, and wire cutting
Schools / training centres, R&D department, model builder, homeworker and do-it-yourselfer
Features:
Induction hardened and precision ground prism bed guides
Guaranteed concentricity accuracy of the spindle nose better than 0.009 mm
Chuck concentricity better than 0.05 mm
High and precise degree of finishing
Rolled trapezoidal slate spindle is supported by 2 sintered bearings.
Handwheels on the trolley with scale 0.04 / 0.01 mm
Tapered roller bearings in quality class P5
Thrust bearings
Highly ribbed prism bed made of cast steel, induction hardened and finely ground
Loose head can be moved +- 5 mm for turning cones
Powerful, maintenance-free motor
Safety:

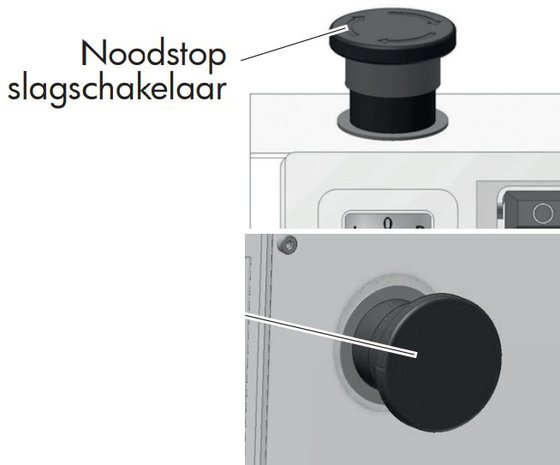

Separate emergency stop, separate start and stop button
No-load voltage
Low voltage control buttons
Microswitches in gearbox and chuck guard
Chisel shielding
Standard delivered with:
Chuck with 3 claws 125 mm
Fixed center point MK2
Fixed center point MK4

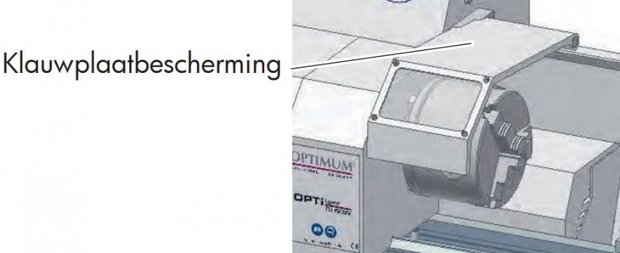

Chuck and chisel shielding, mudguard and chipboard
4-fold chisel holder
Exchange wheels set
Operating keys
Purchase Protocol
Dutch-language manual, inscriptions, CE mark, and CE certificate according to Machine directive 2006/42/CE, and EMC directive 2014/30/CE.
Electrical connection
Voltage V 1x230
Power kW 0,75
Capacity
Center height mm 125
Center spacing mm 550
Turning diameter above bed mm 250
Swivel length in the bed bridge mm 135
Bed width mm 135
Header
Number of speeds 6
Spindle speed min-1 125-2.000
Spillway MK 4
Spindle bore mm 26
Thread steps and power supply
Power supply mm/O 0.07-0.2
Thread cutting metric M 0,2-3,5
Thread cutting thumb Gg/1" 56-8
Guidance and trolley
Roadway chisel slide mm 70
Travelling distance cross slide mm 110
Height of chisel holder mm 13
Loose head
Cone loose head MK 2
Course loose head mm 65
Weight kg 125,00

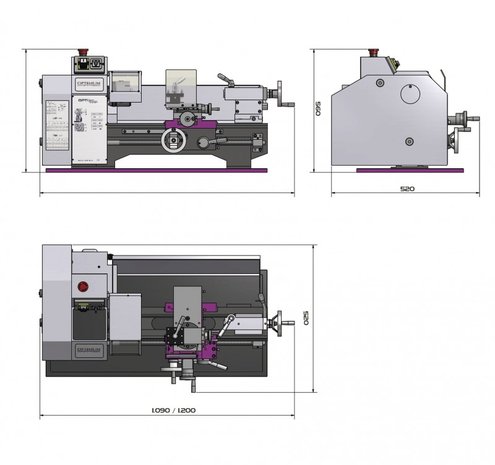

Dimensions (l x w x h) mm 1.250x585x475
