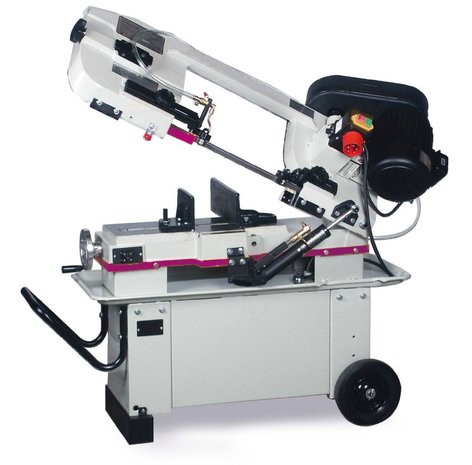

Mobile band saw diameter 178 mm - cord / belt - 230V

Mobile band saw diameter 178 mm - cord / belt - 230V
Mobile, robust band saw for metalworking with infinitely adjustable cutting pressure.
Features:
Cutting feed through infinitely adjustable hydraulic cylinder.
4 cutting speeds 21 / 33.5 / 45 / 50 m/min by shifting belts

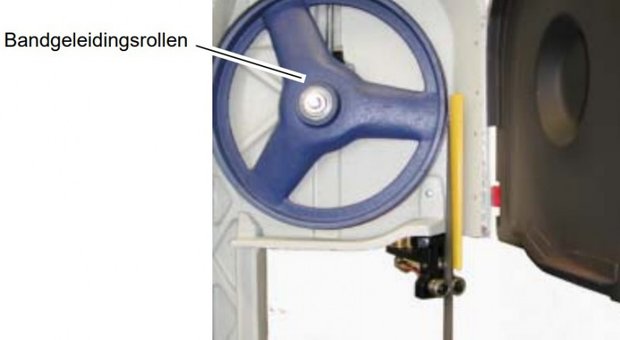

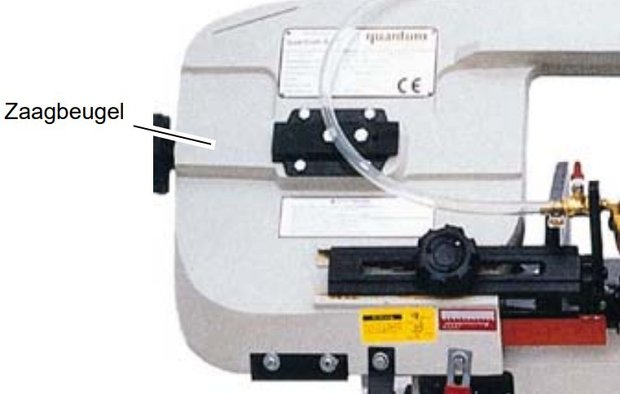

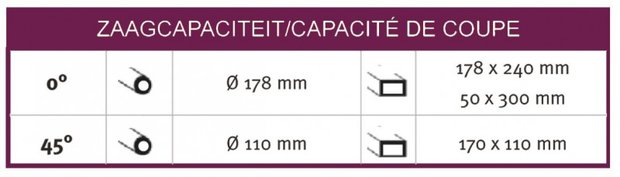

Large cutting capacity thanks to the sawing bracket and large-dimensioned idlers
Refrigerant system
Suitable for:
Construction sites, service cars
Features:

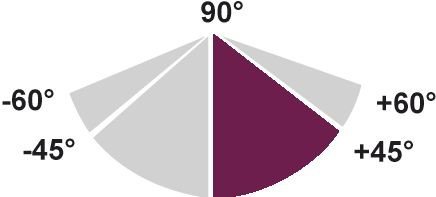

Sawing under mitre is possible thanks to the mitre position of the clamp from 0° to 45°.
Stable cast iron version.

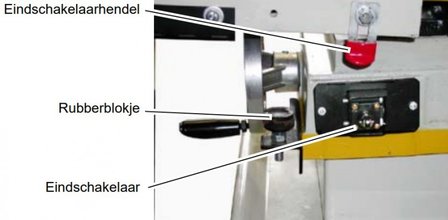

Automatic turning after the end of the cutting cycle.
Powerful return spring
Powerful and quiet motor 0.75 kW

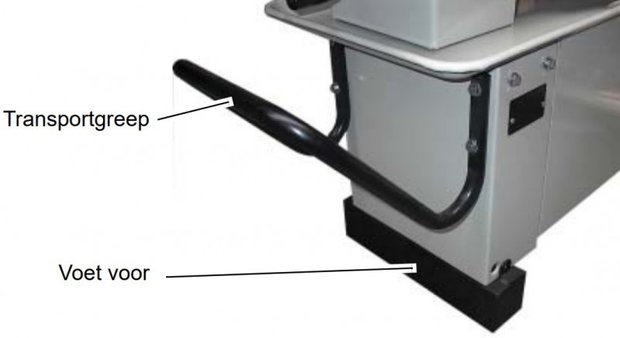

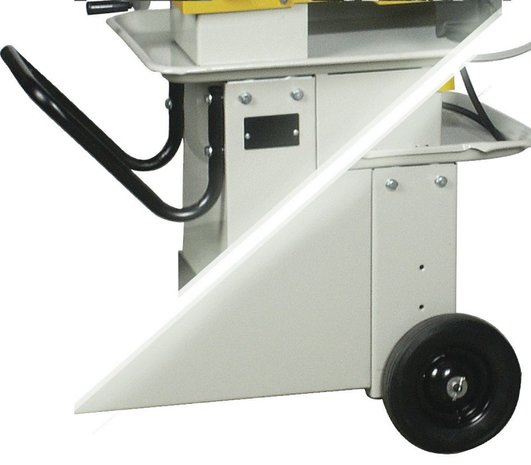

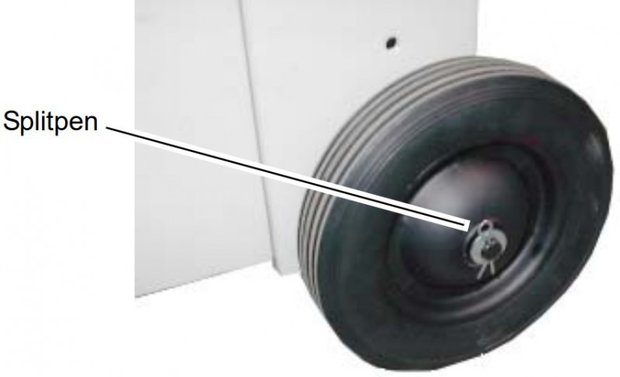

With handle and wheels for easy transport

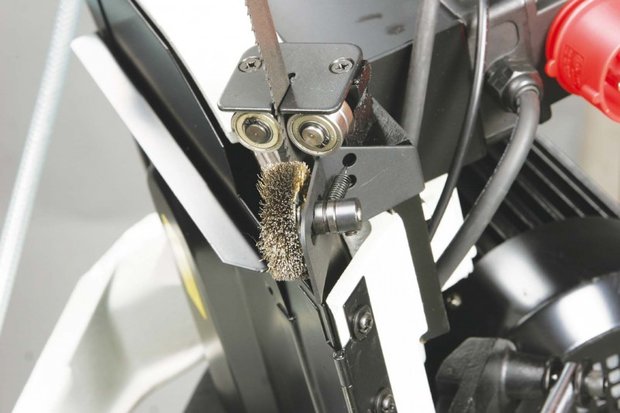

Saw brush for cleaning the saw blade
Saw band guide:

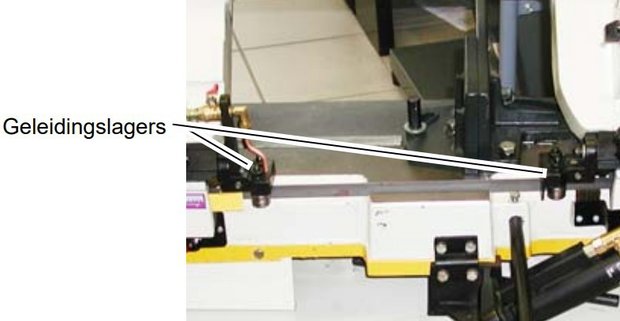

- 3-point ball bearing guide
- Excellent belt performance with optimal cut
- Brush for cleaning the chips
Quick release machine clamp

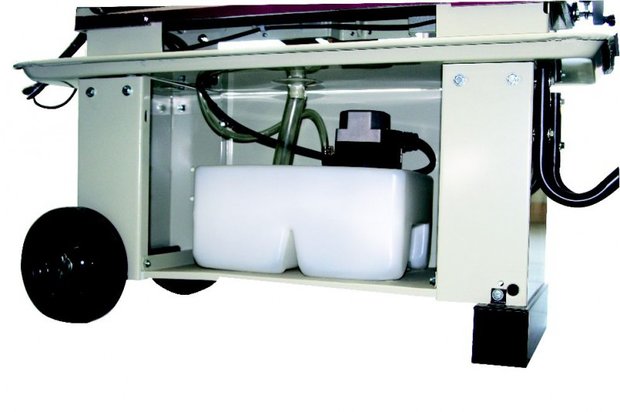

Refrigerant system
- Integrated in the chassis
- Capacity 11 litres
- Direct, adjustable cooling on the saw blade.

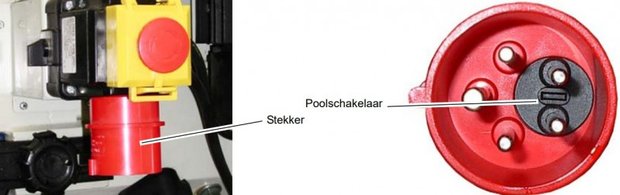

Available in 1x230V and 3x400V.
Standard delivered with:
Mobile base,
Cooling pump
Bi-metal saw blade
Material stop.

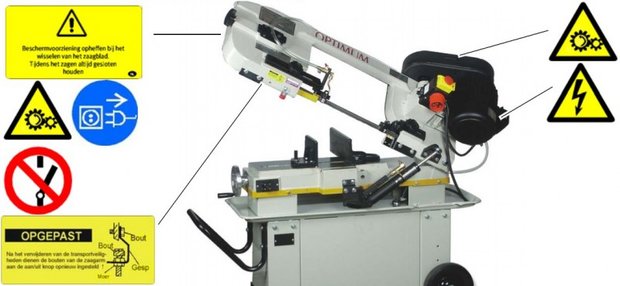

Dutch-language manual, inscriptions, CE mark, and CE certificate according to Machine directive 2006/42/CE, and EMC directive 2014/30/CE.
Power
Voltage V 1x230
Power kW 0,75
Power motor cooling pump W 50
Dimensions
Cutting speed m/min 21/33.5/45/50
Saw tape dimensions (l x h x d) mm 2362x19x0.90
Lifting saw bar manually
Length with open tension clamp mm 1.295
Width without material stop mm 450
Width with material stop mm 600
Height lower end position saw bar mm 1.060
Height of upper end position saw bar mm 1.550
Weight kg 130,00
Dimensions (l x w x h) mm 1.300x460x1.080
