Bending bench 1020mm - segmented upper blade

Bending bench 1020mm - segmented upper blade

Bending bench 1020mm - segmented upper blade Hand and foot operated bending bench / folding bench with segmented upper blade. Trumps: Strong design and compact design With segmented upper blade...

Item number

: T2g-TV 57137701257

€ 2.587,50 *

€ 2.087,25 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

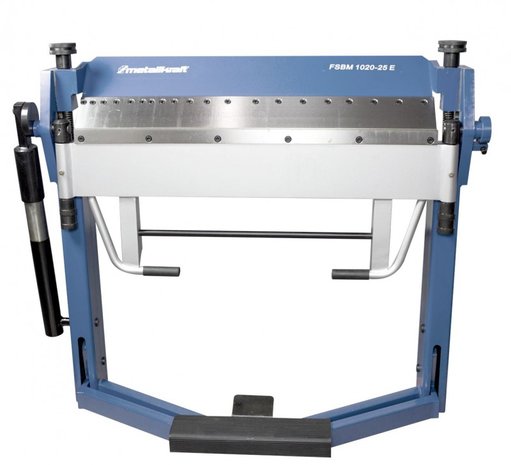

Bending bench 1020mm - segmented upper blade
Hand and foot operated bending bench / folding bench with segmented upper blade.
Trumps:
Strong design and compact design

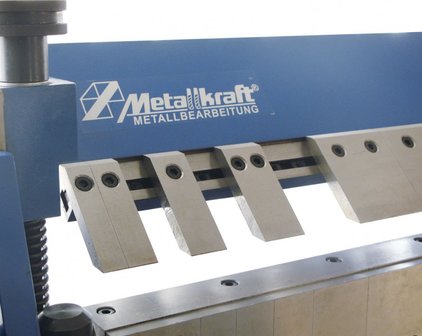

With segmented upper blade
The workpiece is clamped with the foot, both hands remain free.
With powerful auxiliary spring
Segmentation:
25-30-35-40-45-50-75-100-150-200-270
Suitable for:
Universally applicable for industry and handicrafts
Tip: Specified capacities are calculated for a material strength of 400N/mm²; for stainless steel bending: factor x 0.75; for aluminium: factor x 1.2. The hardened top knives are required for bending stainless steel.

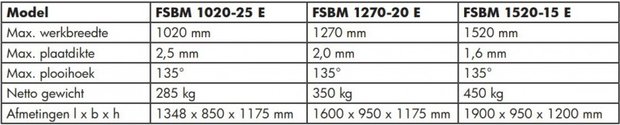

Type of bending plate
Hand and foot operation
Max bending width mm 1020
Maximum bending thickness of steel mm 2.5
Maximum bend angle ° 135
Soft metals (alu) Features the property
Stainless steel possesses the property
Steel Features Property
Weight kg 285,00
Dimensions (l x w x h) mm 1.348x850x1.175
