Stationary planer thicknesser - 320mm - 5mm Stationary planer thicknesser - 320mm - 5mm Stationary planer thicknesser - 320mm - 5mm
Stationary planer thicknesser - 320mm - 5mm Stationary planer thicknesser - 320mm - 5mm Stationary planer thicknesser - 320mm - 5mm
Stationary planer thicknesser - 320mm - 5mm
Stationary planer thicknesser - 320mm - 5mm Stationary combined surface and thickness bench Trumps: High-quality workmanship and ergonomic design Thickness table with central column guide,...

Item number

T2g-TV 27159400327

€ 7.468,50 *
€ 6.024,59 *
Quantity:
Order

Wishlist

Do you have a question about this product?

Ask us your question

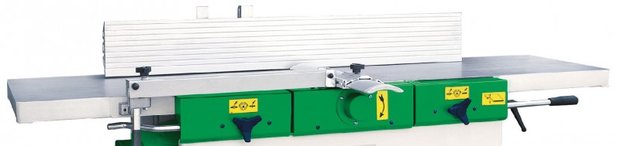

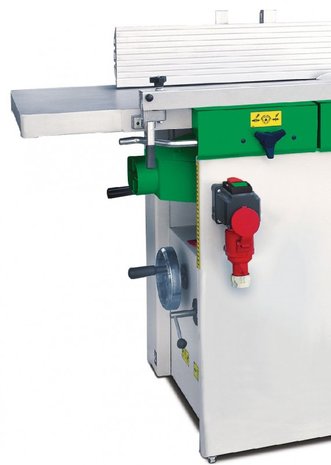

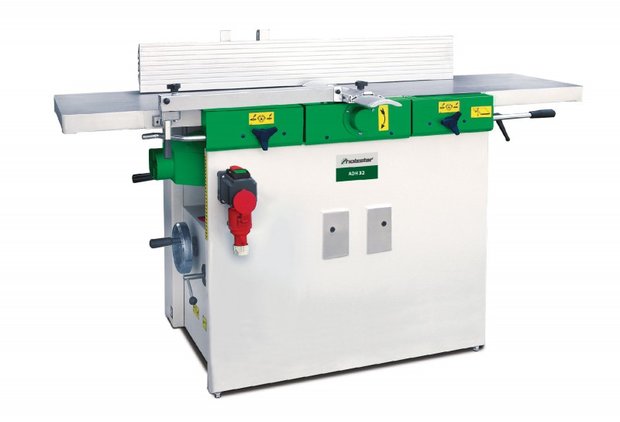

Stationary planer thicknesser - 320mm - 5mm
Stationary combined surface and thickness bench
Trumps:
High-quality workmanship and ergonomic design
Thickness table with central column guide, additional guide and mechanical counter (accuracy 0.1 mm)
Professional pivoting planer guide from 90° to 45°
Space-saving lateral guidance of the planer guide
Large-dimensioned worktable made of grey cast iron and ground upper surface
Planing table folds away backwards, so that it does not interfere with the thickness of the planing.
Precision-mounted planing shaft with 3 planing knives and steel roller for even and constant wood removal.
Suitable for:
Planing of solid wood planks, and strips
Standard delivered with:
Knife guide with 3 HSS flat-planing knives
Dutch-language manual, inscriptions, CE mark, and CE certificate according to Machine directive 2006/42/CE, and EMC directive 2014/30/CE
Voltage V 3x400
Planing width 320
Working height minimum/maximum mm 850
Maximum planing capacity/transit mm 5
Speed automatic feeding m/min 8
Diameter planing wheels mm 100
Speed rpm 4600
Power kW 4
Dimensions flat table (l x w) mm 1500x320
Dimensions of thickness table (l x w) mm 700x316
Number of knives 3
Weight kg 360,00
Dimensions (l x w x h) mm 1.500x650x1.000
