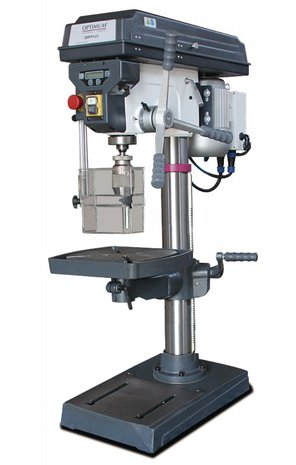

Table drill diameter 25mm - 615x330x1015mm

Table drill diameter 25mm - 615x330x1015mm
Table drill with belt / belt drive with digital display of spindle speeds and drilling depth.

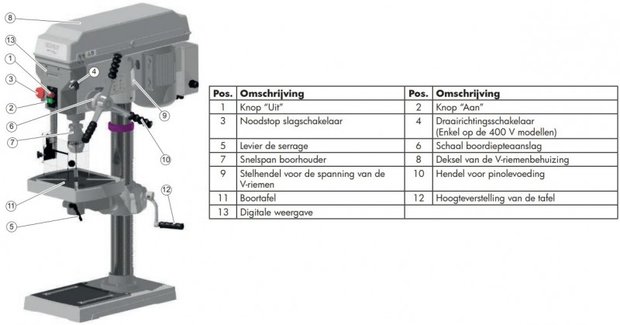

Features:
Drilling in steel up to 25 mm
Recording morse cone MK2

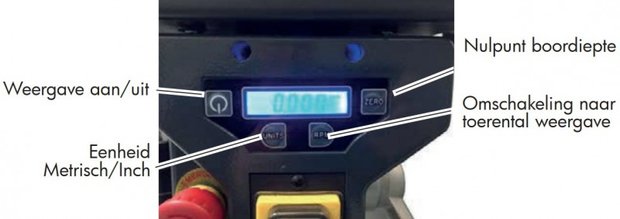

Digital display speeds and drilling depth
12 speeds
Motor 3x400V of 750 Watt - aluminium belt pulleys
GATES toothed quality belts
Left-right-turning
Suitable for:
Workshops, maintenance services, schools and training centres
Features:
Guaranteed concentricity better than 0.02 mm measured in the drill spindle
Precision ball bearing spindle
Quieter running thanks to aluminium belt pulleys
The high-quality toothed drive belts provide the machine with significantly better power transmission and significantly less loss of performance.

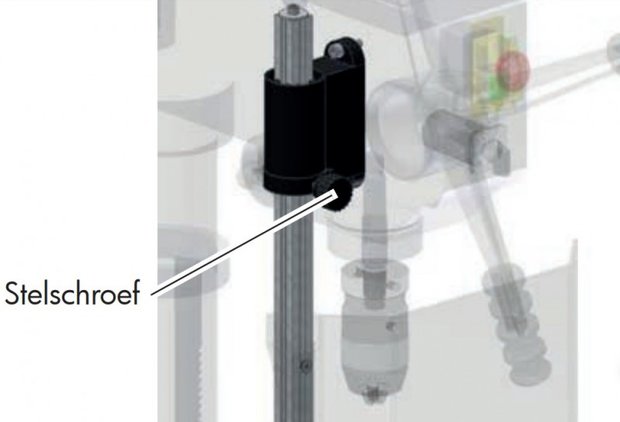

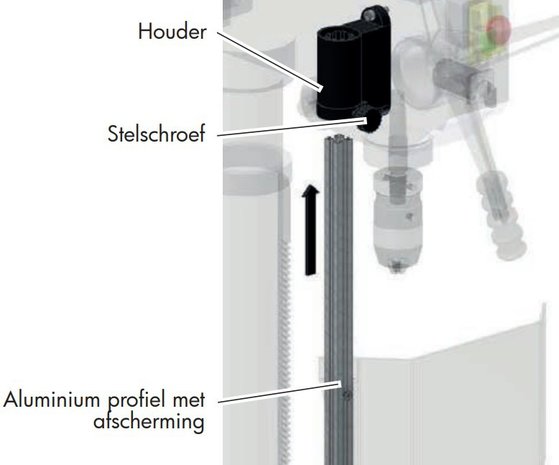

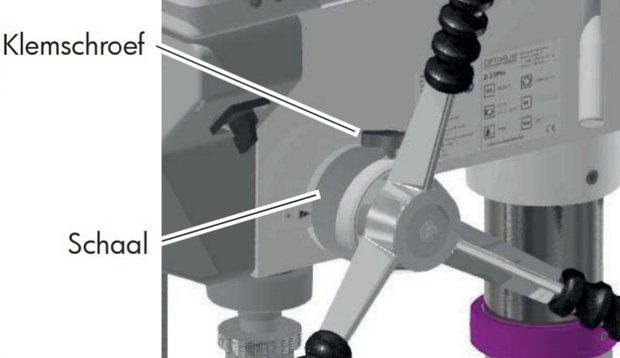

Drilling depth stop adjustable at the lever

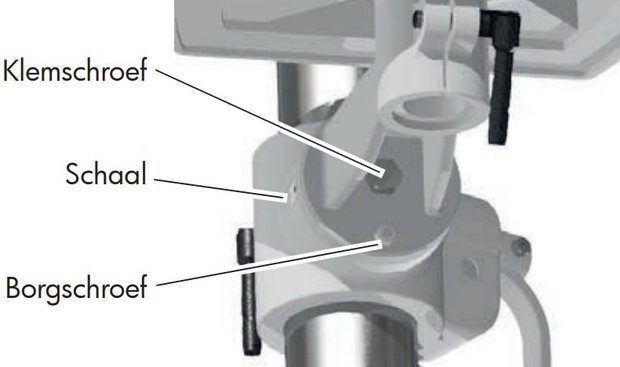

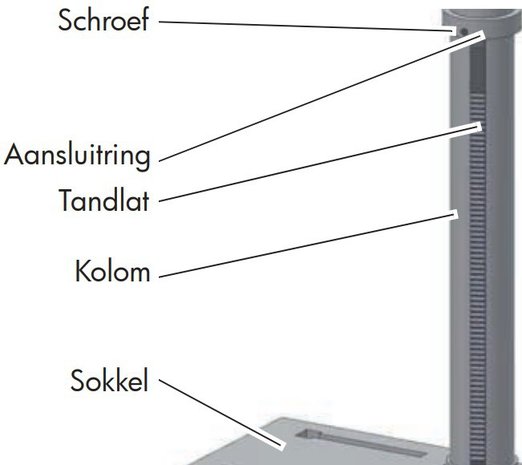

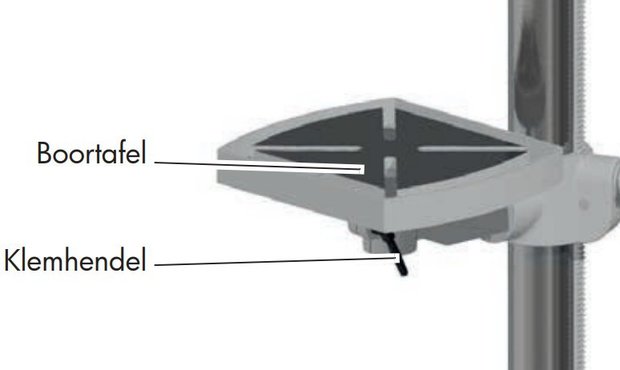

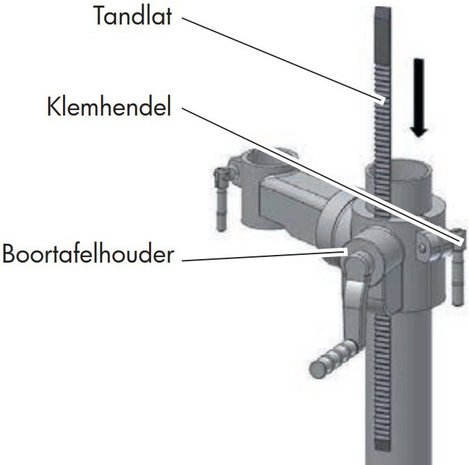

Precision machined T-slot workbench in diagonal pattern with cooling edge, swivels from -45° to +45° and rotates 360° around the column. The table can be easily adjusted in height by means of a wide toothed bar.

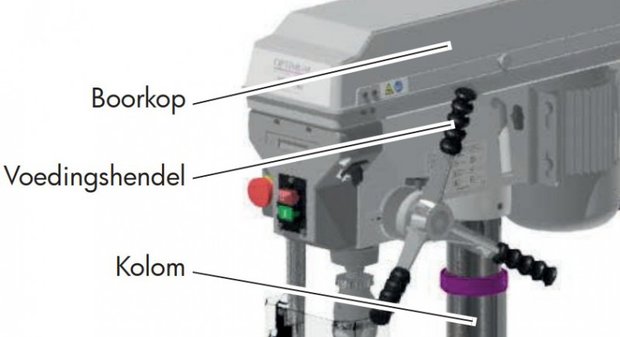

One-piece aluminium handle with "soft grip".

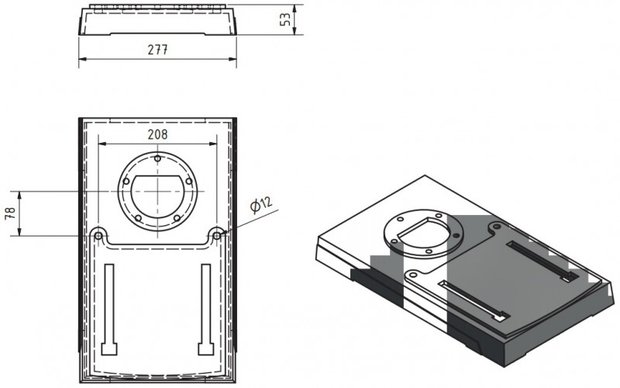

Solid, large base plate with T-slots
D23PRO also available in other voltages: 3x220V and 3x440V
Safety:
User-friendly operating buttons with separate start and stop button in IP54 and separate emergency stop
No-load voltage
Safety electrical system in 24V DC
Solid double window drill screen, equipped with safety switch
V-naarkap equipped with safety switch
Standard delivered with:
Optimum quick-release drill chuck 1 -16 mm W16
Conical mandrel according to DIN228 MK2/B16
2 T-nuts for T-slot 12 mm and thread M10
Dutch-language manual, inscriptions, CE mark, and CE certificate according to Machine directive 2006/42/CE, and EMC directive 2014/30/CE

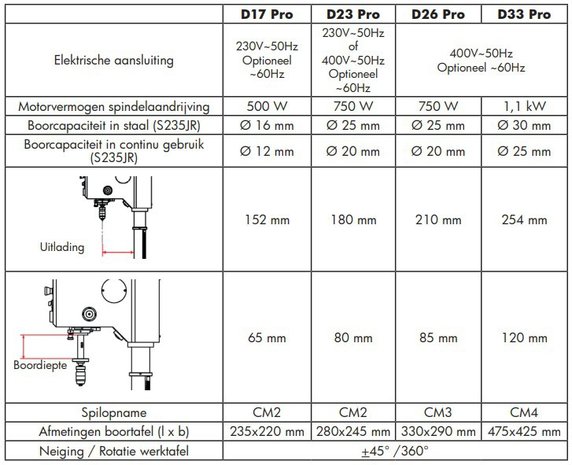

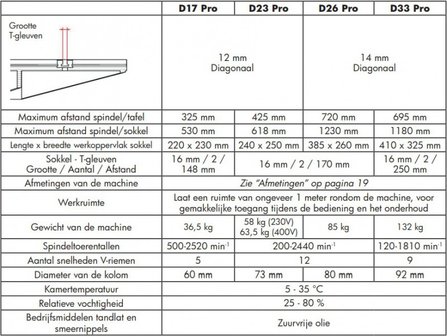

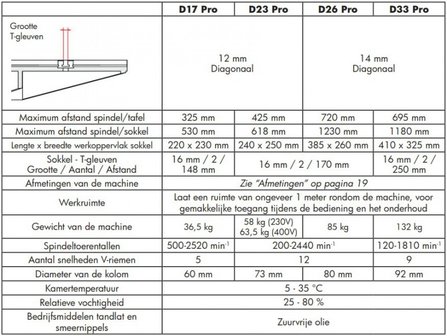

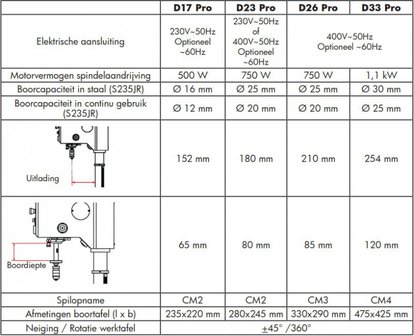

Voltage V 3x400
Power kW 0,75
Drilling cap. in steel S235JR mm 25
Drilling capacity in continuous operation S235JR mm 20
Spindle holder MK 2

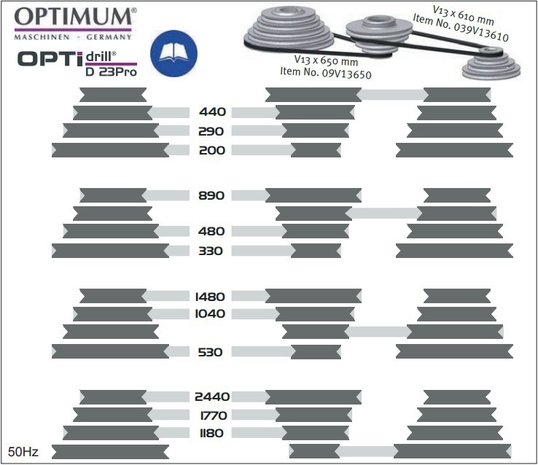

Number of speeds 12
Spindle speed min-1 200 - 2.440
Drilling depth mm 80
Discharge mm 180

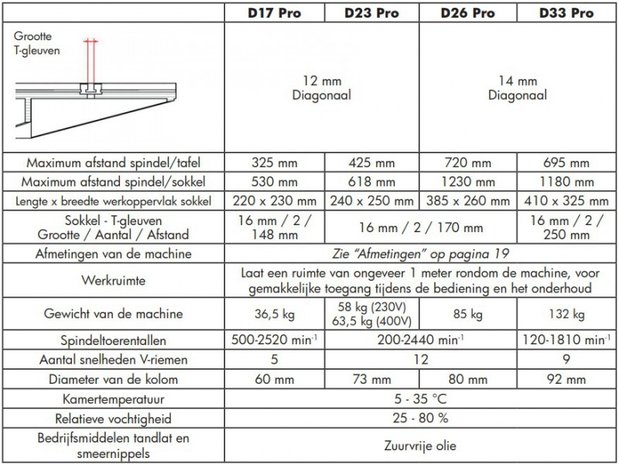

Column diameter mm 73
Dimensions table (W x D) mm 280x245
T-slots size/number/distance mm 12 diagonal
Swivelling drilling table ° +/-45
Rotating drilling table ° 360
Distance spindle-table mm Max. 425
Distance spindle-foot mm Max. 618
Dimensions foot (W x D) mm 240x250
T-grooves base mm 16/2/170
Weight kg 63,50

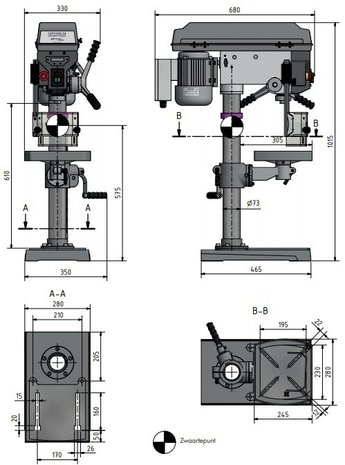

Dimensions (l x w x h) mm 615x330x1.015
