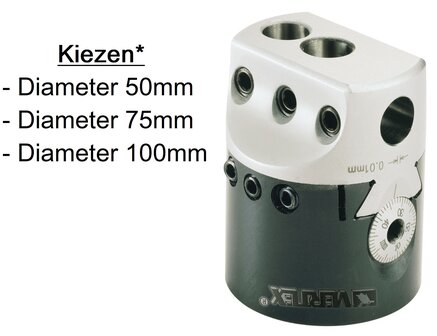

C-type cutterhead

C-type cutterhead Advantages: Accurate to 0.01 mm (per dividing line) on the vernier and 0.02 mm per diameter (in stationary mode only) Can be used both horizontally and vertically Made of high...

Item number

: T2g-TV 47900152347

€ 172,50 *

€ 139,15 *

Choose* 790015234: *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

C-type cutterhead
Advantages:
Accurate to 0.01 mm (per dividing line) on the vernier and 0.02 mm per diameter (in stationary mode only)
Can be used both horizontally and vertically
Made of high quality steel, hardened and precision ground
Equipped with internal thread
With round incorporation holes for boring bits
Cutterhead connection 1-1/2 "x18 UNC
Suitable for:
Drilling out, clearing and surface milling.
Shots available for:
MK2
MK3
MK4
MK5
R8
ISO30
ISO40
BT30
BT40

Type	Zonder automatische voeding	Zonder automatische voeding	Zonder automatische voeding
Min. kotterbereik mm	5mm	5mm	25mm
Max. kotterbereik mm	150mm	250mm	400mm
Gereedschap	12	18	25
Diameter mm	50mm	75mm	100mm
Gewicht kg	0,80 kg	2,00 kg	4,00 kg
Afmetingen (l x b x h) mm	62x50x50 mm	80x75x75 mm	90x100x90 mm
