An Inclinometer now essential for the modern motor vehicle where accurate angle measurement is becoming more and more important
- An Inclinometer - a digital angle gauge or digital protractor equipped with a built in magnet.
- Perfect for measuring angles on metal surfaces. It is ideal for use as a digital camber/castor gauge when paired with the Gunson 77137 Trakrite Camber Bar
- Ideal for angle measurement for areas such as: suspension setting of camber and caster, setting bumper mounted radar units used in vehicle collision avoidance and parking assist systems
- Also suitable for Citroen/Peugeot variable valve timing setting and checking angle checks for comparison and setting on any flat surface. Plus level checks on vehicle body alignment equipment during crash repair
- Equivalent to PSA OEM 1376-A

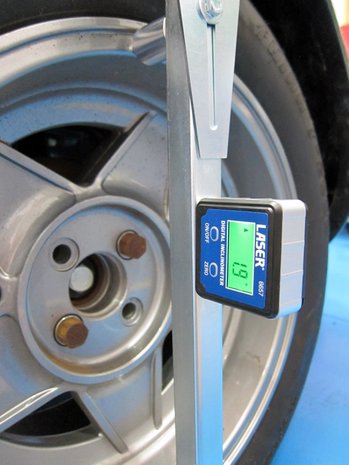

When fitted to the tyre/wheel, Gunson’s Trakrite camber bar (part number 77137) gives a solid metal base that is parallel to the wheel and suspension upright and is the ideal mount for camber gauges. When used in conjunction with the new digital inclinometer from Laser Tools (part number 6657) the combination offers exceptional accuracy (±0.2º).
The Trakrite camber bar is assembled in seconds and full instructions are included. It is easy to adjust and use; the top bracket allows for adjustment to the profile of the tyre, then adjust the wheel spacers to the top and bottom edges of the wheel rim — this now gives a solid metal mounting base.

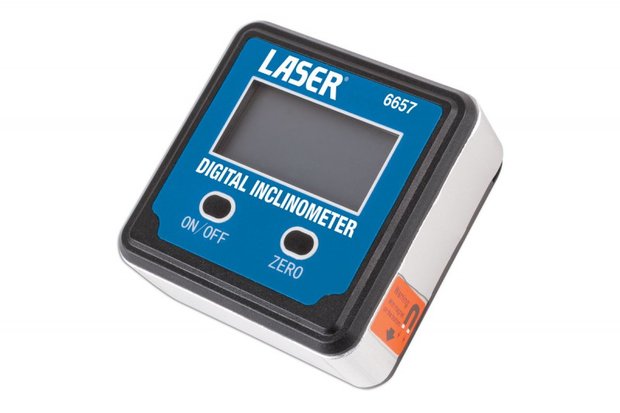

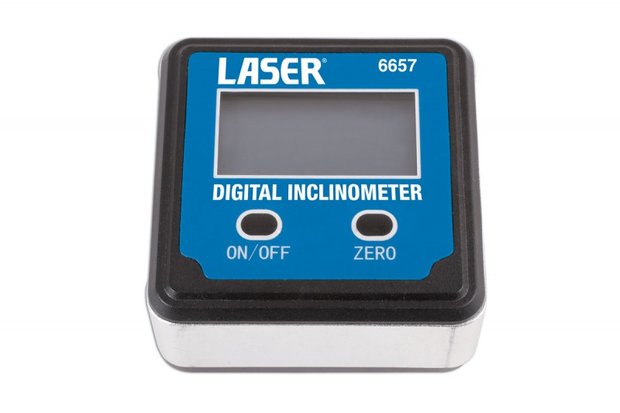

Equipped with a built-in magnet in the base, the Laser 6657 inclinometer is designed for measuring angles on metal and other surfaces, and is ideal for use as a digital camber/caster gauge. It can also be used for engine setting up (for example on Citroen/Peugeot variable valve timing setting and checking where an OEM special tool would be used).

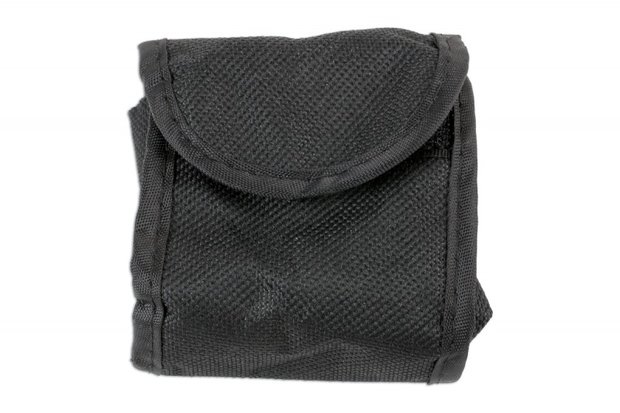

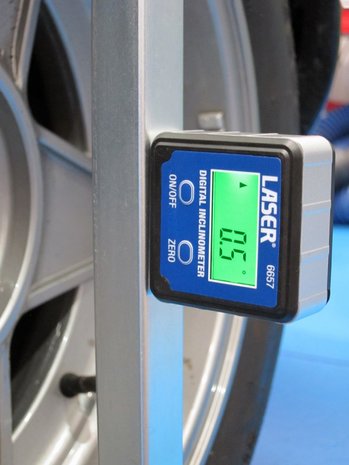

The inclinometer is easily calibrated, then popped onto the camber bar. The camber angle (negative or positive) can be clearly read from the bright LCD screen. The device is powered by a 1.5V AAA battery, and shuts off automatically after five minutes of no movement. It is supplied with a useful storage pouch.
