Simple indexing spacer 225mm

Simple indexing spacer 225mm Horizontal and vertical simple indexing spacer with pre-assembled 3-jaw chuck and masking plates. Advantages: Simple indexing spacer made out of quality meehanite cast...

Item number

: T2g-TV 37900000337

€ 1.297,50 *

€ 1.046,65 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

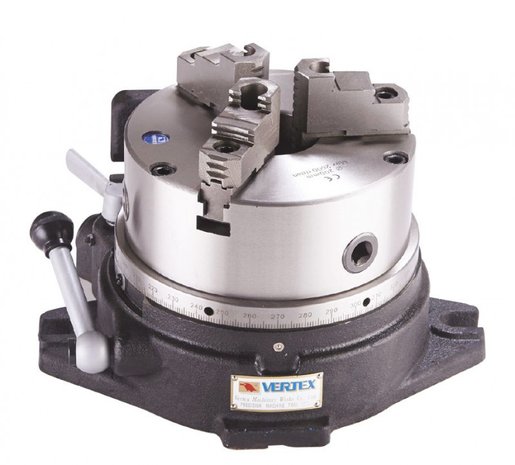

Simple indexing spacer 225mm
Horizontal and vertical simple indexing spacer with pre-assembled 3-jaw chuck and masking plates.
Advantages:
Simple indexing spacer made out of quality meehanite cast iron
With large spindle bore allowing to put large and long parts
Horizontal and vertical use
Precision tapered bearings
Guaranteed stability, even in intensive use
360° graduated scale
Direct division by masking plates
Division possible in 24 positions (by 15°)
Delivered with:
6 dividing trays for 2 - 3 - 4 - 6 - 8 - 12 divisions
3-jaw concentric chuck with hard jaws model VSK
Tip: delivered without tailstock, do not forget to order it

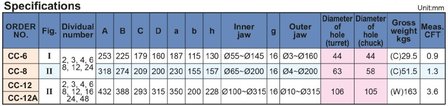

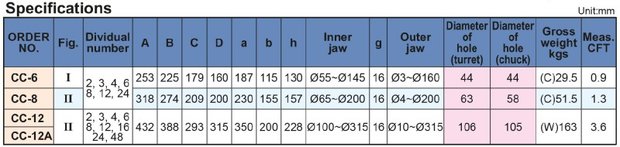

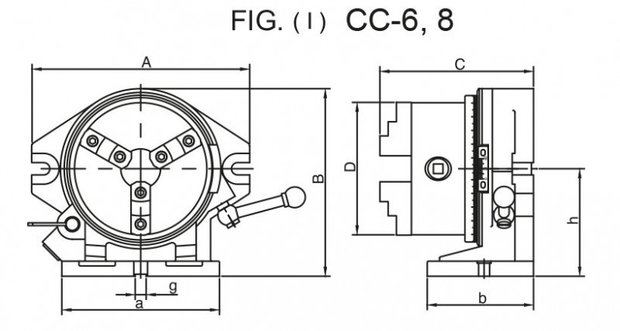

Construction height mm 225
Width mm 179
Length mm 253
Center height mm 130
Pass-through mm 44
Chuck mm 160
Weight kg 29,50
