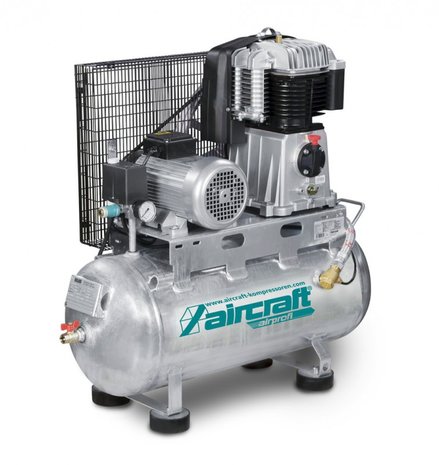

Compact addition compressors 13 bar - 75 liters

Compact addition compressors 13 bar - 75 liters
Compact addition compressors with small pressure tank for peak needs.
Can also be used during work on other compressors in a system.
Characteristics:
Very compact, with serious airflow. Perfect for small compressor rooms or as a temporary solution
Models with tank capacity 75 liters, operating pressure 13 bar
Connectable to any network. With drain valve
Can also be connected to Aircraft mobile tank batteries (see accessories)

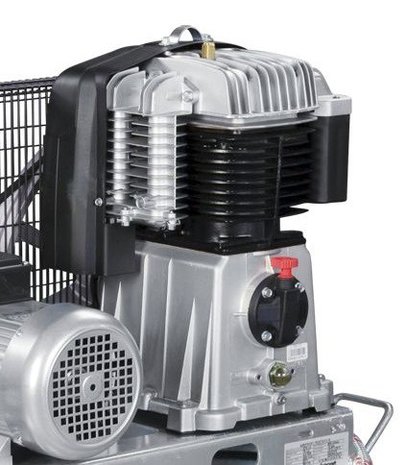

Qualitative compressor pump for intensive use. The low speed guarantees a smooth, vibration-free run
Optimal cooling by large impeller and cooling fins limit condensation in the tank
Low heat generation, long service life
Armored, flexible pressure pipe prevents breakage of the pipe
Thermal motor protection against overload. Start-up relief limits the power peak

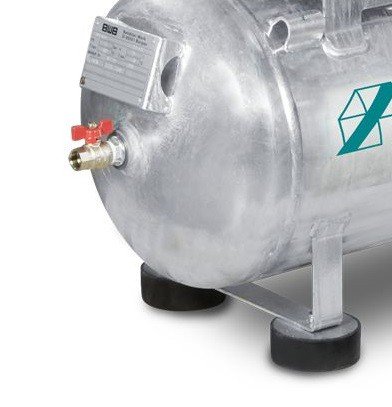

Galvanized boiler, also inside, gives the best guarantee against rust

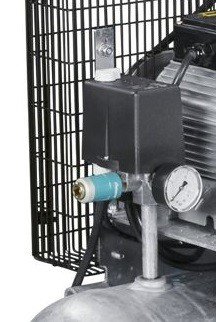

CONDOR pressure switch, pressure gauge and pressure relief valve
Three-phase quality motor 3x400 V
Supplied with vibration dampers
Voltage V 3x400
Suffered air l / min 575
Lubrication system HOS
Issued air l / min 460
Maximum pressure bar 13
Power kW 4
Tank capacity l 75
Cylinders / Stairs 2/2
Speed ​​rpm 850
Noise level - LPA (1m) DINISO3744 dB (A) 79
Air pressure connection in 3/4
Weight kg 103.00
Dimensions (l x w x h) mm 850x460x960
