Piston compressor 15 bar - 270 liters -3x400V

Piston compressor 15 bar - 270 liters -3x400V

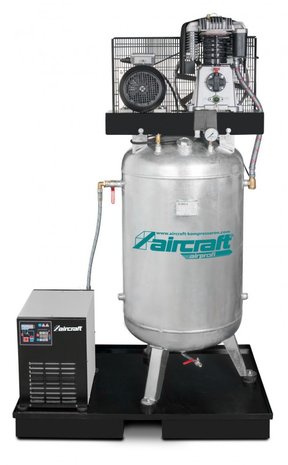

Stationary compressor station with operating pressure 15 bar, standing pressure tank of 270 liters and after-treatment of compressed air.
Characteristics:
Supplied as standard at operating pressure 13 bar. Adjustable up to 15 bar.
Mounted on stand plate of only 1m², with forklift movable
Space-saving vertical boiler of 270 liters. Perfect for small compressor rooms.
Available in 2 versions:
- Version UK: With refrigeration dryer. Dry compressed air prolongs the useful life of airtools.
- Version VKK: Complete compressed air aftertreatment for dry and pure compressed air. Fine filter on the pressure tank filters condensation and solid particles up to 25 μm.

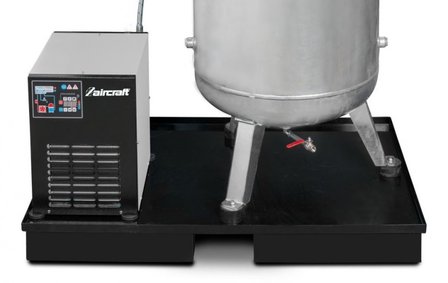

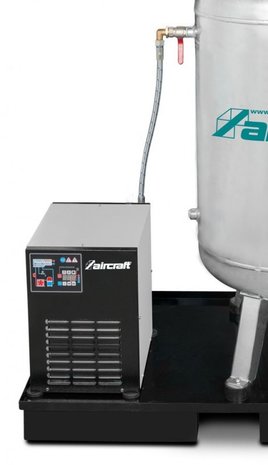

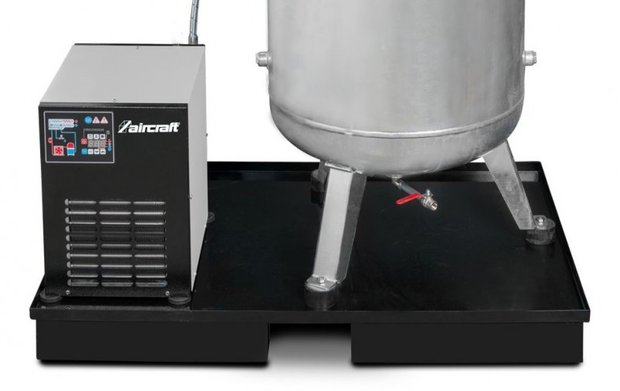

With cooling dryer and automatic condensate drain.
Condensate separator type AOWT2 separates oil and water
Automatic condensate drain type AMD on the pressure tank

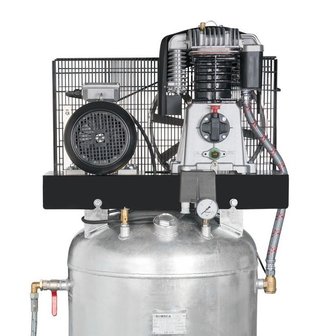

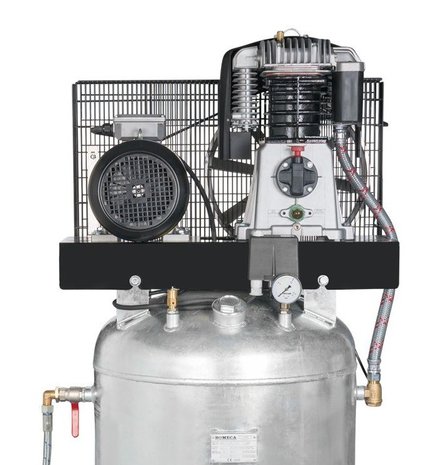

Qualitative compressor pump for intensive use. The low speed guarantees a smooth, vibration-free run
Optimal cooling by large impeller and cooling fins limit condensation in the tank
Low heat generation, long service life.
Armored, flexible pressure pipe prevents breakage of the pipe.
Thermal motor protection against overload. Start-up relief limits the power peak.
3 drain or connection points on the boiler.
Galvanized boiler, also inside, gives the best guarantee against rust.
CONDOR pressure switch, pressure gauge and pressure relief valve
Delivered with:
Vibration dampers
Three-phase quality motor 3x400V. Model 7.5kW delivered with star-delta switch
Ready for connection
Voltage V 3x400
Sucked air l / min 750
Lubrication system HOS
Issued air l / min 525
Maximum pressure bar 13 (15)
Power kW 5.5
Tank capacity l 270
Cylinders / Stairs 2/2
Speed ​​rpm 785
Noise level - LPA (1m) DINISO3744 dB (A) 82
Air pressure connection in 3/4
Type of dryer AD36
Weight kg 190.00
Dimensions (l x w x h) mm 850x710x1.950
