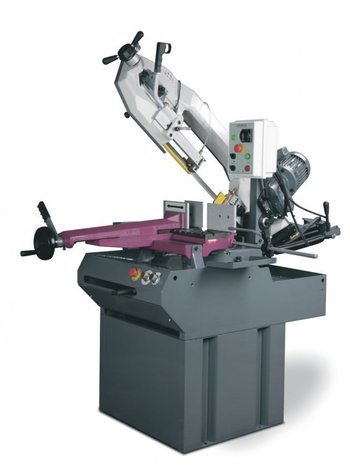

Metal bandsaw diameter 255mm

Metal bandsaw diameter 255mm
Description

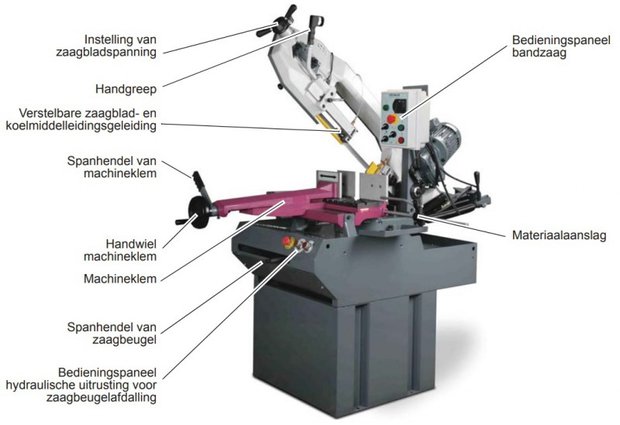

Band saw for metalworking with slewable saw bow
Low-noise running
Heavy casting type
High cutting accuracy due to vibration-free running

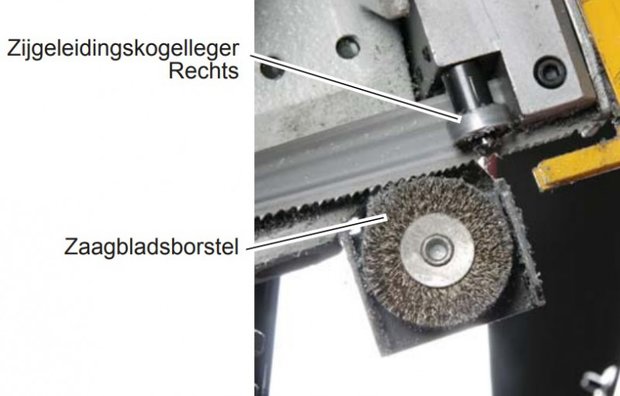

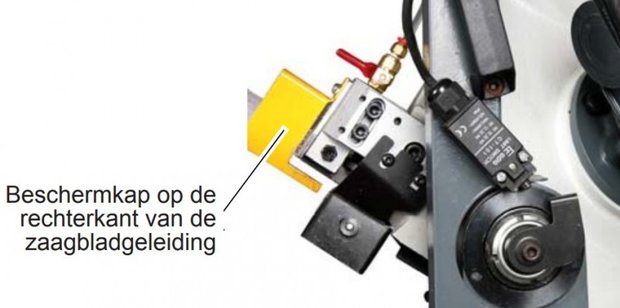

Ball bearing mounted saw band guiding providing outstanding band run and thus optimum cutting results
Chip brush

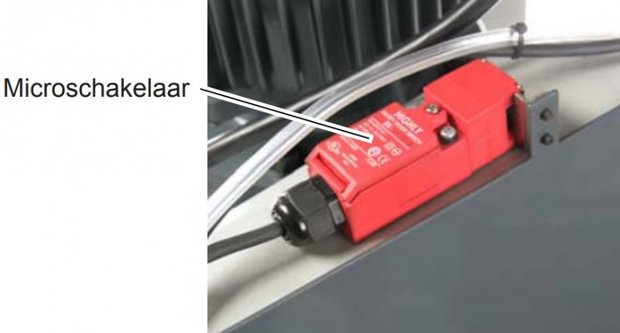

Micro switch for automatic limit stop

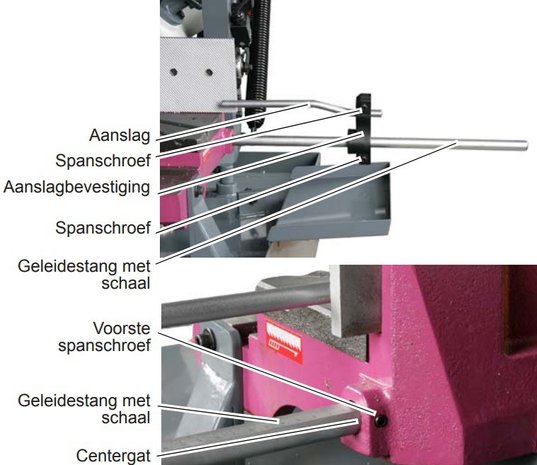

Material stop with scaling

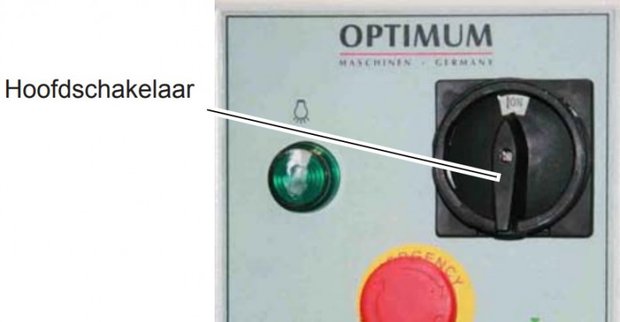

CE conformity of the electric system

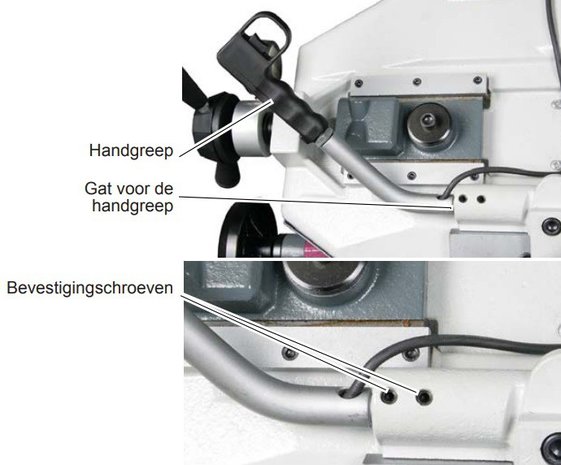

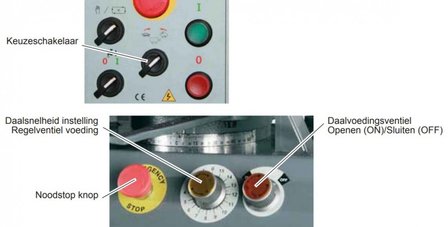

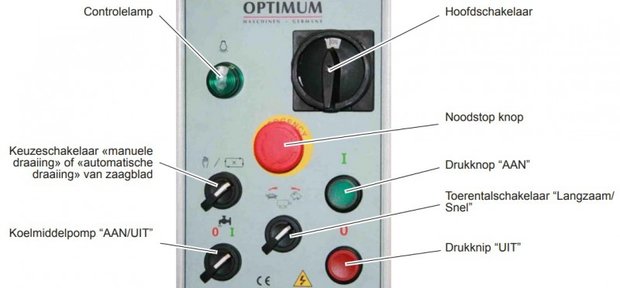

Push button "Manual saw band running" on thehand lever switches the running of the saw band on and off
With high-grade bimetallic saw band supplied as standard

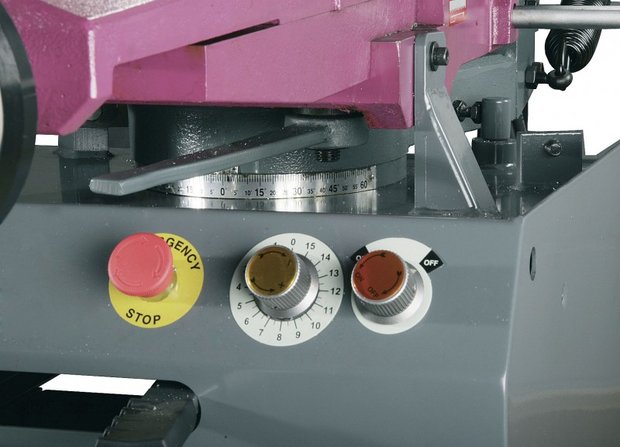

Limit stops exactly adjustable within an accuracy of a degree
EMC filter (electromagnetic compatibility)
Roller support
· To support long materials
Quick-action vice
Adjustable via handwheel
High tensioning force by quick action lever

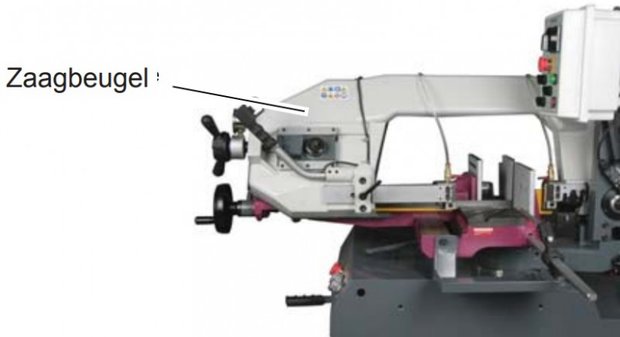

Clamping lever saw bow

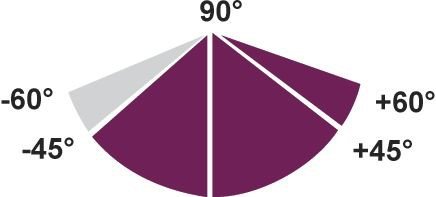

Saw cuts in the range from 45° up to 60° are infinitely variable
Machine substructure
Stable

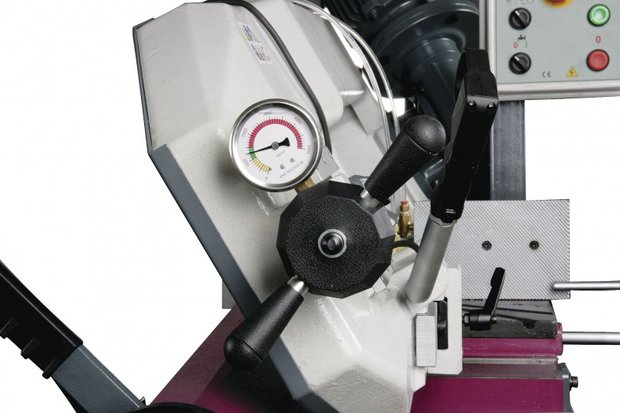

Pressure gauge
Simple and correct control of the saw band tension
Coolant pump
Powerful 100 W
Voltage V 3x400

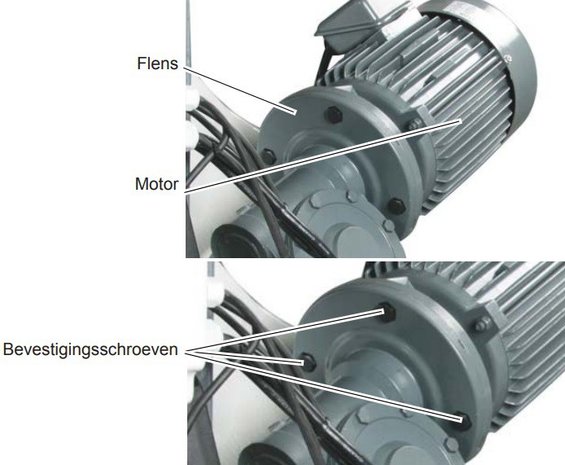

Power motor kW 1,5
Power coolant pump motor W 100
Cutting speed m/min 35/70
Dimensions saw blade (l x w x thickness) mm 2750x27x0,9
Saw frame rise manual

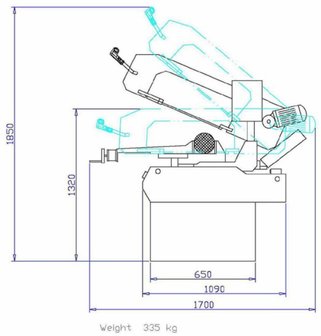

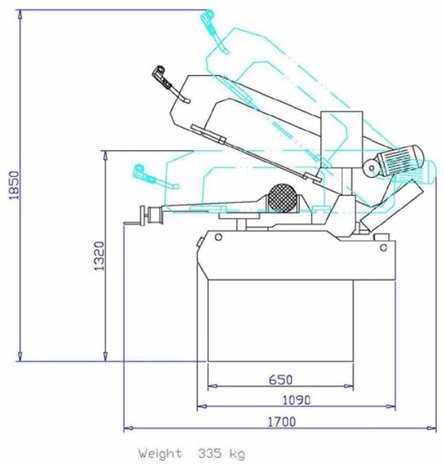

Length with closed vice mm 1.400
Length with open vice mm 1.700
Working height mm 960
Width without material stop mm 700
Width with material stop mm 1.300
Lower position saw frame mm 1.600
Highest position saw frame mm 1.850
Weight kg 335,00
Dimensions (b x d x h) mm 1.720x730x1.130
