Digital measuring system

Digital measuring system
Description

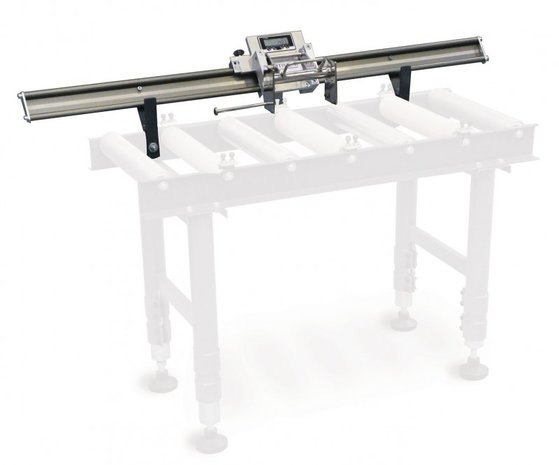

Distance measuring system to be attached to the OPTIMUM material stand MSR for perfect distance measurement and exact positioning
Magnetic measuring system with magnetic tape
For recurring measuring tasks with high precision of 0.05 mm
Automatic switching on of the display
During longer standstills the measuring system switches off and keeps the last measurement saved
Measuring accuracy: ±(0.025 + 0.02 x measuring length [m])
Battery life of up to 10 years

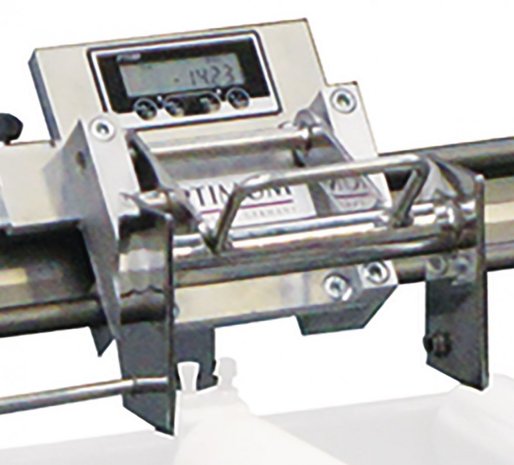

Display LCD
Switching functions:
Zeroing display
Reset
Direction indicator ±
Absolute measurement and chain measurement function
Right end/left end stop
Material stop
For large diameters
Stop for small pieces with elongation
Slide
Easily moveable
Precisely guided
Replaceable durable dry bearing
Easy installation by the client
Positioning slide
Right end/left end stop
Folding upwards
Linear guiding rails
Lubricant-free
Very smooth running
Wear resistant
Corrosion-resistant
Little friction values
High static bearing capacity
Length mm 1000
Moving distance mm 830
Weight kg 7,00
Dimensions (b x d x h) mm 1.100x110x70
