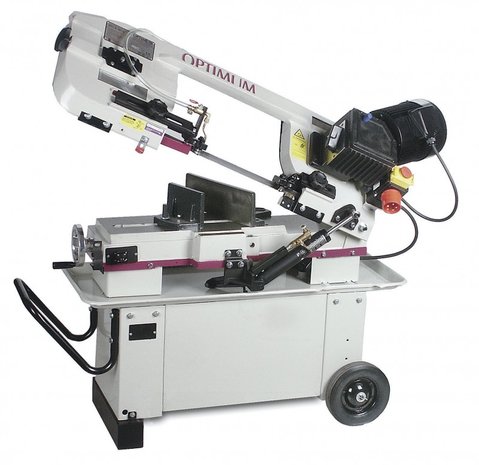

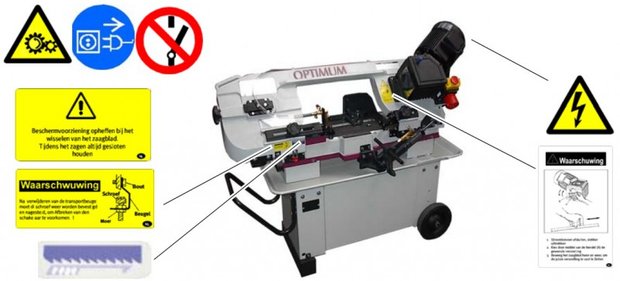

Metal band saw diameter 180 mm - gear - 230V

Metal band saw diameter 180 mm - gear - 230V
Robust and mobile band saw with gear transmission and hydraulic lowering.
Advantages:

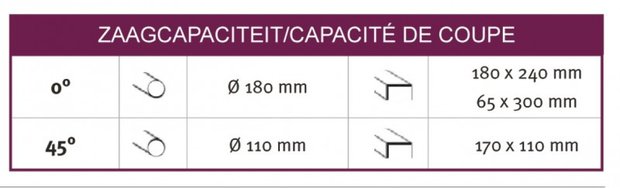

Large cutting capacity

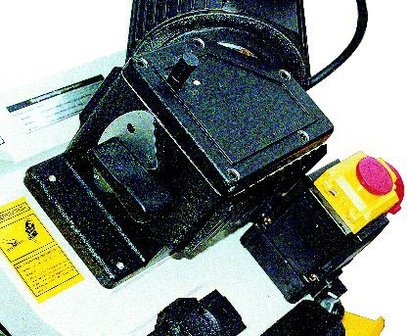

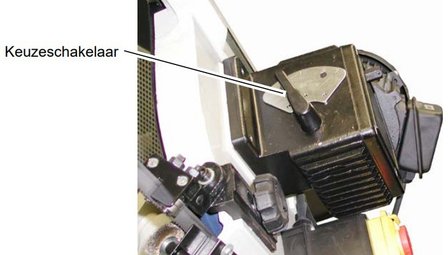

With gear transmission with 3 adjustable cutting speeds 39/66/82 m/min

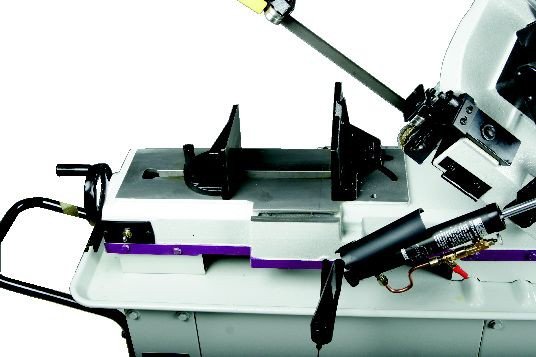

Automatic lowering of the arc by hydraulic cylinder

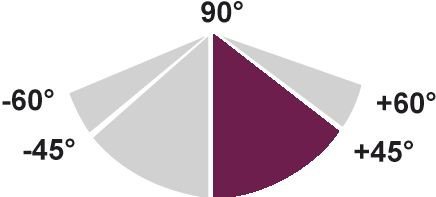

Cut at an angle of 0° to 45°
Cooling pump integrated in the base
Handle and wheels for ease of transportation
Suitable for:
Construction sites, maintenance vehicles
Characteristics:
Big wheels

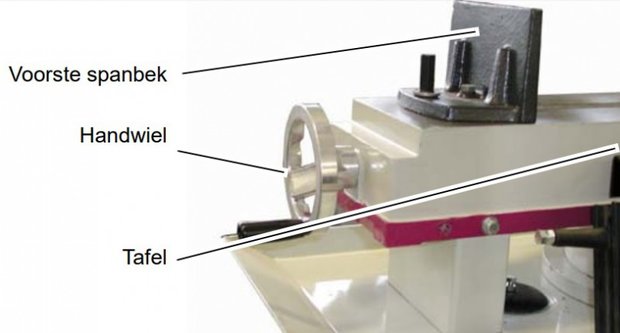

The swivel vice at an angle of 0° to 45° allows to saw obliquely
Solid cast iron construction
Precise finishing according to Optimum standards

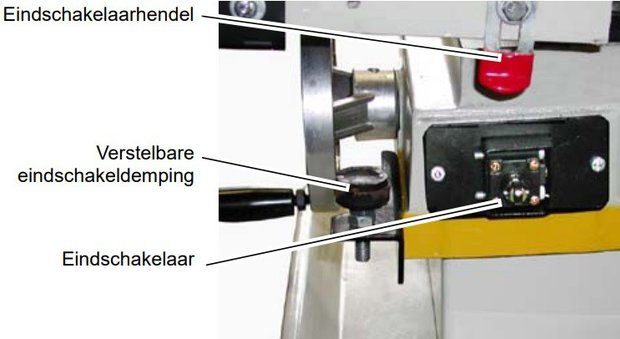

Automatic stop at the end of the cut
Powerful return spring
Quiet and powerful motor 0,75 kW

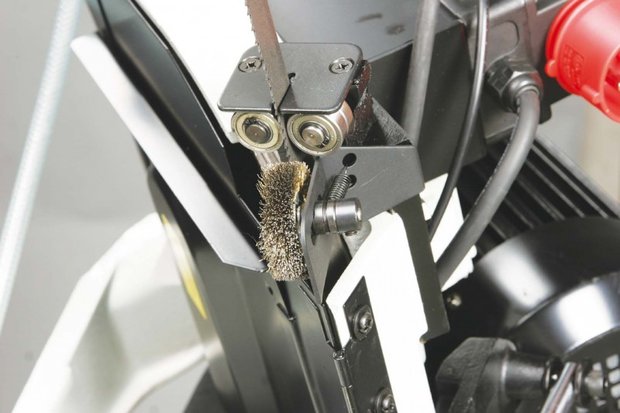

Blade cleaning brush

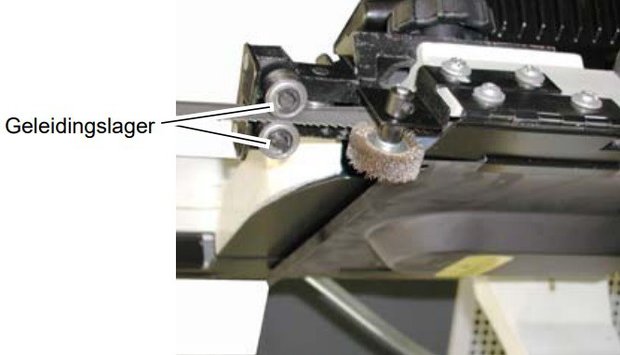

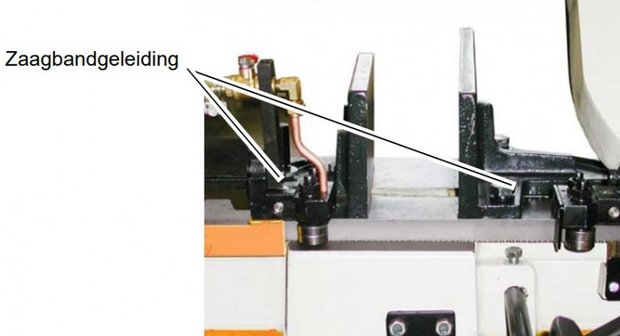

Blade guide mounted on 5-point bearings, excellent strip stroke for optimum cut

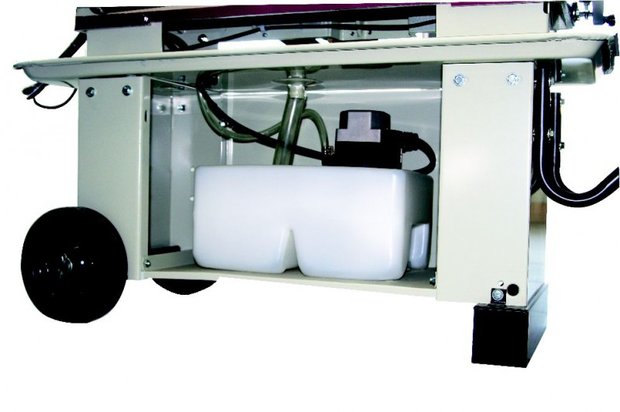

Cooling device integrated into the base, capacity 11 liters, direct and adjustable cooling of the blade
Comes standard with:
Mobile pedestal
Cooling pump
Bi-metal blade

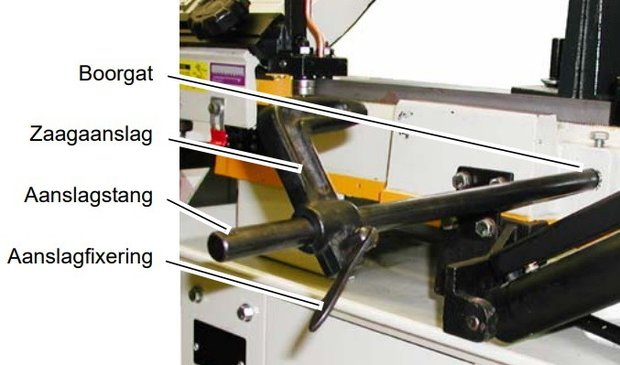

Material length stop
User manual in English, descriptive notes, CE marking and certificate of conformity to the Machine 2006/42/EC directives, and EMC 2014/30/CE

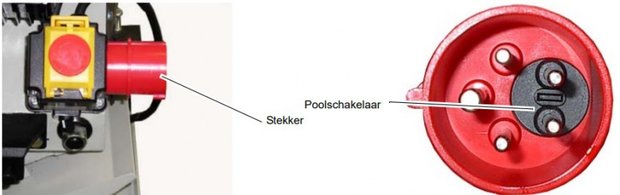

Voltage V 1x230
Power motor kW 0,75
Power coolant pump motor W 50
Cutting speed m/min 39/66/82
Dimensions saw blade (l x w x thickness) mm 2362x19x0,90
Saw frame rise manual
Length with open vice mm 1.200
Width without material stop mm 450
Width with material stop mm 720
Lower position saw frame mm 1.050
Highest position saw frame mm 1.600
Weight kg 130,00
Dimensions (b x d x h) mm 1.300x460x1.118
