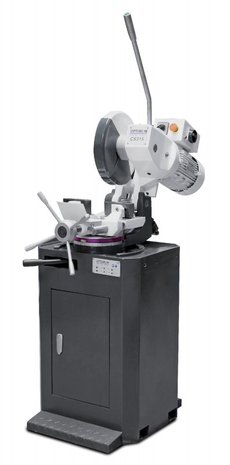

Manual circular saw diameter 315mm

Manual circular saw diameter 315mm
Description
Manual circular metal saws for steel, iron, light metals, solid material and profiles
Slewing range of ± 45°
Easy readable angle scale allows precise working
Adjustment of the mitre in a matter of seconds
Protected vice spindle

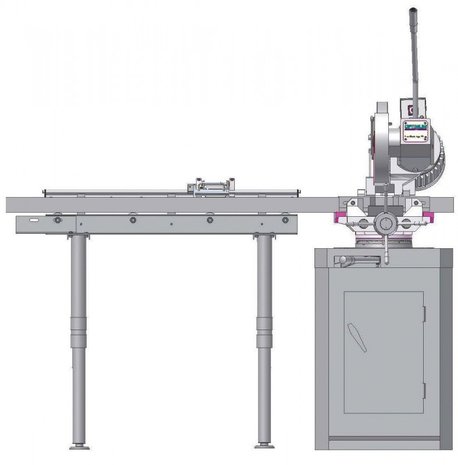

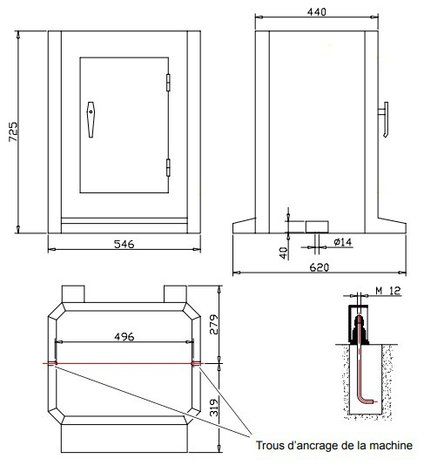

Solid machine base with holes on both sides for the installation of the material stand MSR
Machine base sizes:
- CS 315 - 546 x 620 x 801 mm

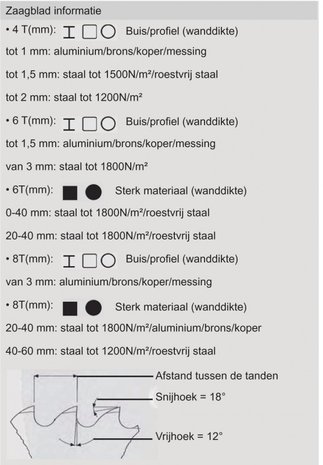

The saw is delivered without circular saw blade (saw blade pitch freely selectable)

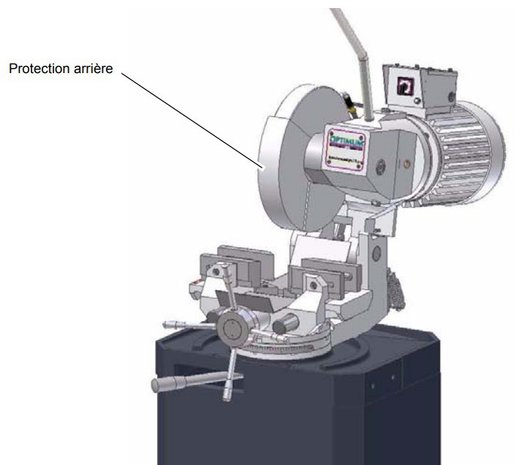

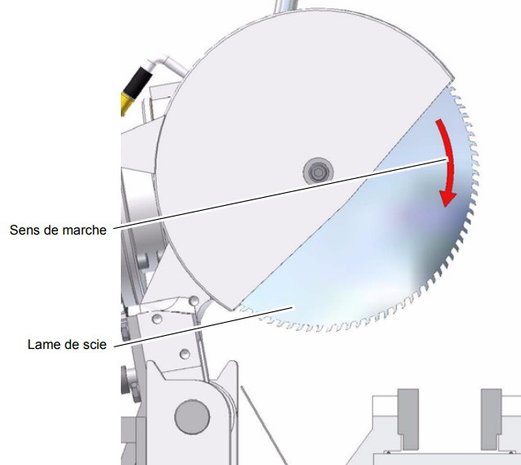

Protective equipment
Functional
All-surrounding
Mobile
Rapid opening mechanism provides for optimum safety when cutting

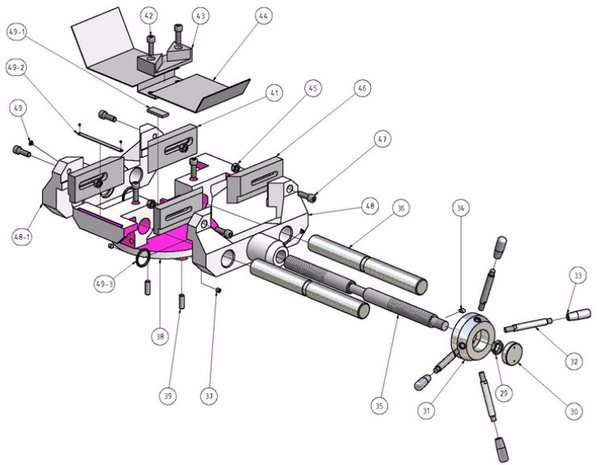

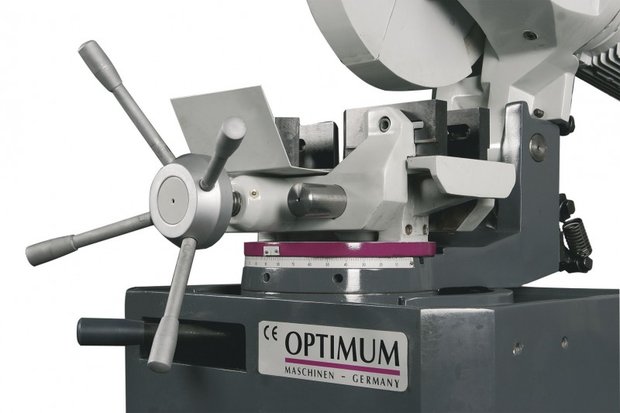

Vice
Centric clamping
4-time guided
Individually adjustable jaws
Cut is always performed in an optimum position to the workpiece
4-lever clamping system
Protected vice spindle

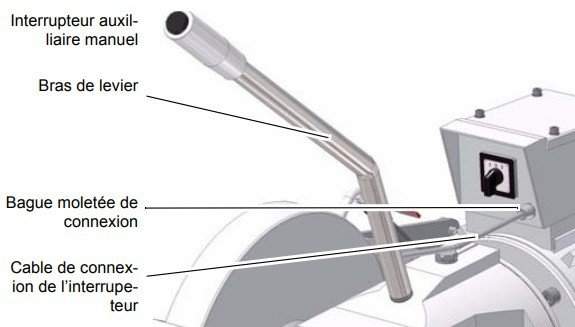

Long handle
Allows sawing without large efforts
Integrated push button (On/Off)
Automatic switching on of the coolant pump when sawing

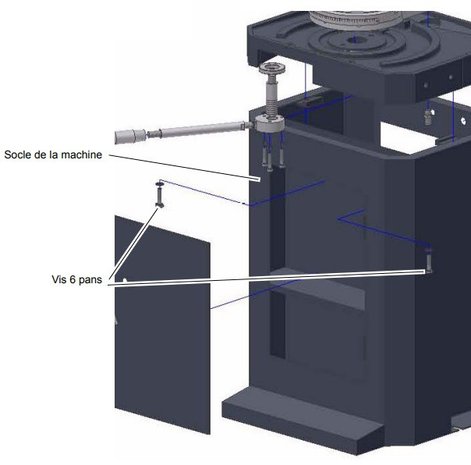

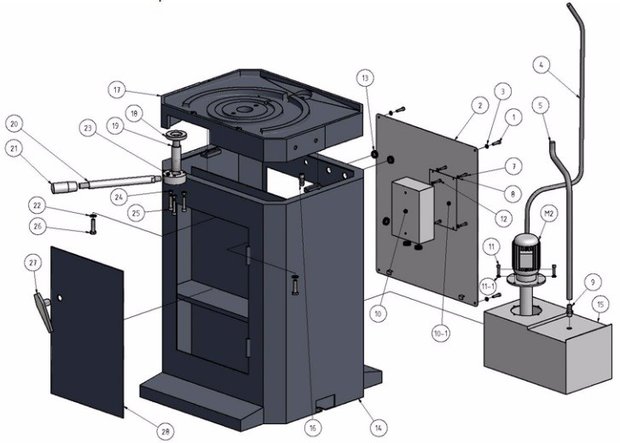

Machine substructure
Solid
Lockable door

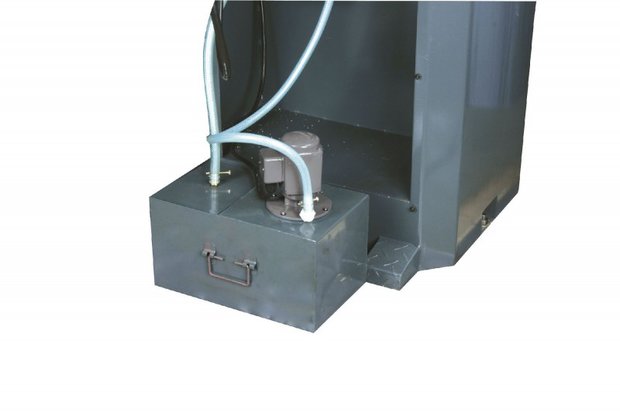

Coolant pump
Detachable coolant tank
Integrated powerful pump
Voltage V 3x400
Power motor kW 1,5-0,75
Power coolant pump W 40
Cutting speed min-1 19/38

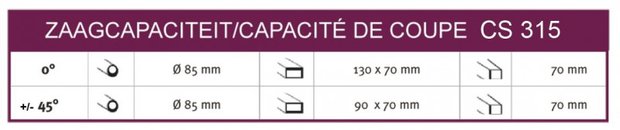

Cutting capacity 90° mm 85
Cutting capacity 45° mm 85

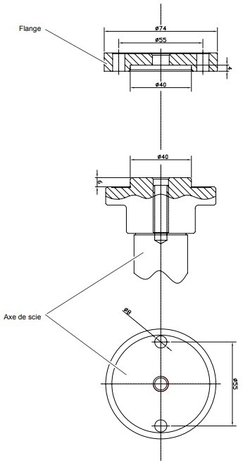

Diameter sawblade x axis hole mm 315 x 40
Opening clamp mm 135
Working height mm 885
Weight kg 230,00

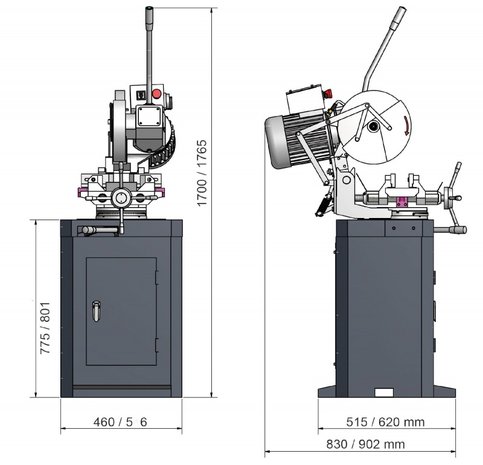

Dimensions (b x d x h) mm 910x546x1.759
