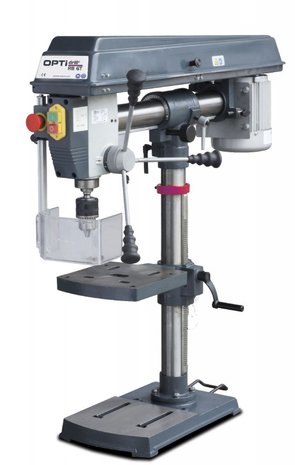

Radial drilling machine diameter 16mm

Radial drilling machine diameter 16mm
Description
Light-weighted radial drilling machine with large throat to manufacture wood, plastic material and aluminium
Best power transmission due to aluminium belt pulleys in connection
with toothed GATES quality V-belt
Drilling spindle with precision ball bearings
V-belt cover with safety switch
Drill depth stop
OPTIMUM sprocket wheel drill chuck included in the standard scope of
delivery
Optimum price/performance ratio
Stable value

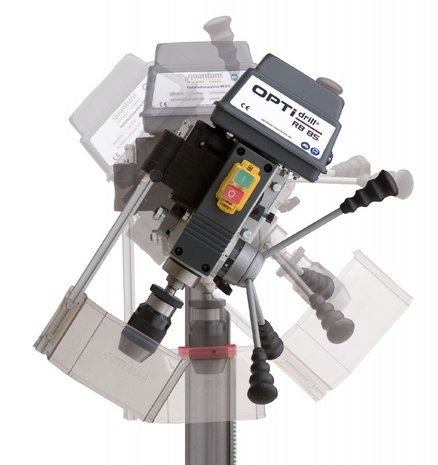

The drilling table can be inclined by ± 45°

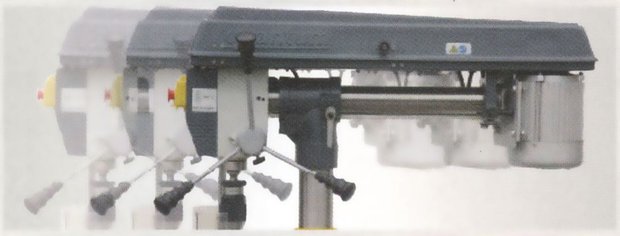

Variable throat by shifting the drilling head
Features:
Drilling spindle
Guaranteed true running accuracy better than 0.03 mm measured in the drilling spindle
Precision ball bearing
Drill chuck protection
Best possible protection of the user
Height-adjustable
Micro switch
Electric motor
Smooth running
Powerful
Aluminium housing
Safety switch
Easy-to-operate
Protection class IP 54
Undervoltage release
Separate EMERGENCY-STOP push button
Drilling table
Precisely worked
Transversally running T-slots
Mounting holes for enlarged table support
The drilling table can be inclined by ± 45°
Spindle sleeve lever
Long and ergonomically designed
Softgrip handles for safe working
Steel column
High smooth running and stability
Base plate
Solid and largely dimensioned
Slots for T-slots
Heavily ribbed at the rear side
Voltage V 1x230
Power motor kW 0,750
Drilling capacity in steel S235JR mm 16
Spindle speed min-1 390-3000
Drilling depth mm 80
Throat mm 115-430
Diameter column mm 60
T-grooves mm 14
Rotation drilling table ° 360
Distance spindle-table mm 380
Distance spindle-stand mm 550
T-grooves stand mm 14
Weight kg 40,00

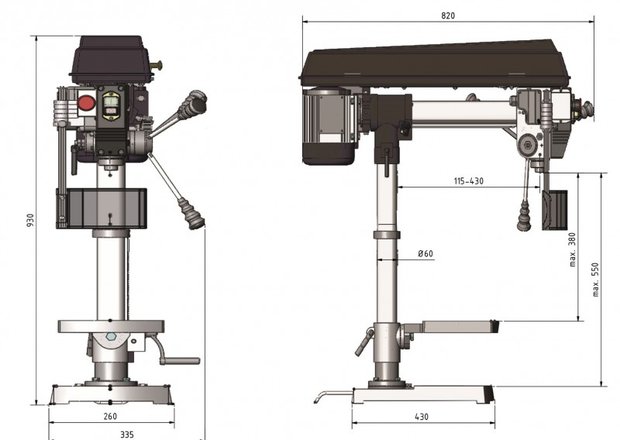

Dimensions (b x d x h) mm 820x290x930
