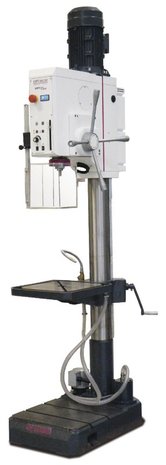

Column drilling machine - vario diameter 32mm

Column drilling machine - vario diameter 32mm
Description

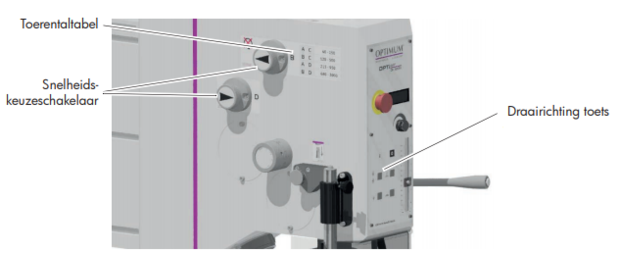

Upright drilling machines with gear and infinitely variable speed control
High running smoothness thanks to ground multi-toothed follower
High true running accuracy due to hardened and ground main spindle
Wide speed range
Heavy, solid cast iron construction

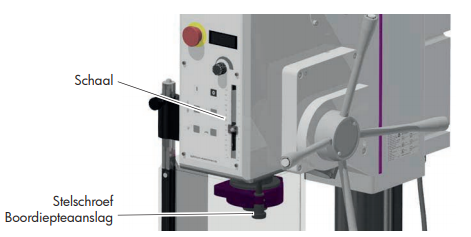

Adjustable drilling depth stop with millimetre scale
Low maintenance gear with grease lubrication
Threading function
Optional threading function with foot switch
Automatic spindle sleeve feed
High power of the coolant pump and chip filter
Torque in the lowest gear up to 200 Nm
Features:

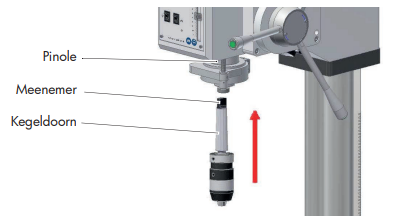

Integrated drill drift

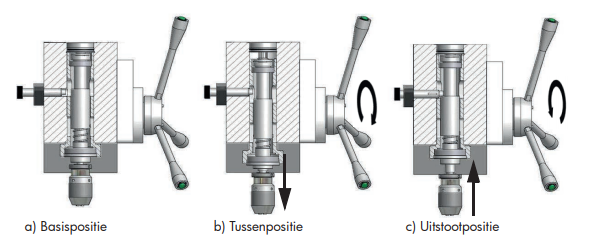

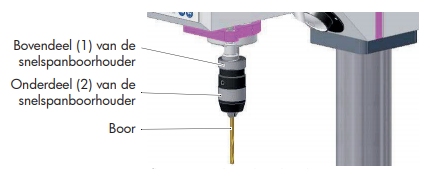

Easy tool change due to ejection mechanism

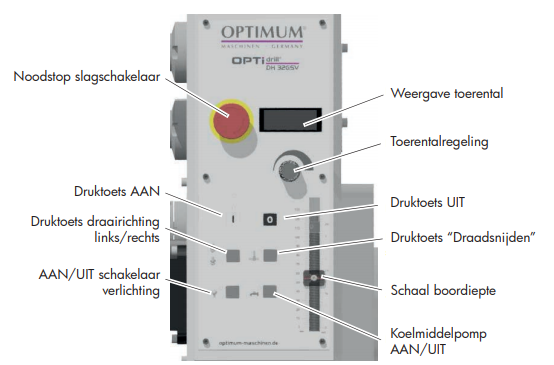

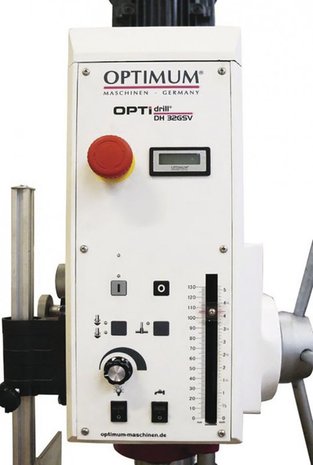

Front panel
User-friendly Softkey-Panel splashproof and glare free
Digital speed display easy to read
Automatic spindle sleeve feed
For deep drilling or pocket hole drilling, the coupler of the automatic spindle sleeve feed can be opened or closed at any time by actuating the spindle feed switch
Right-hand/left-hand rotation
Machine luminaire
Integrated in the drill head
Halogen lamp
Chuck guard
Best possible protection of the user
Height-adjustable
Micro switch
Casting column
Thick-walled
For high power absorption and stability
Drilling table
Largely dimensioned
Solid
Precisely worked
Transversally running T-slots
Heavily ribbed at the rear side
Chip filter
according to the machine directive
Coolant equipment
Optional foot switch (Item No 713050032)
Functions:
Thread cutting
Switching from right-hand/left rotation

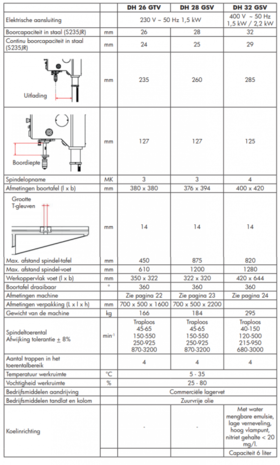

Voltage V 3x400
Power motor kW 2,2
Drilling capacity in steel S235JR mm 30
Continuous drilling capacity S235JR mm 26
Threading capacity in steel S235JR M 16x2
Spindle seat MK 4
Throat mm 285

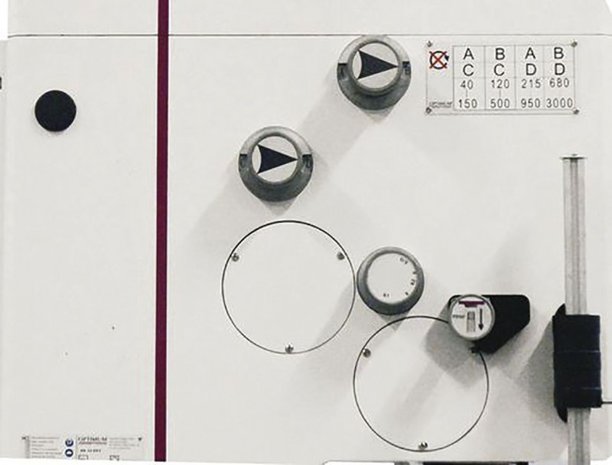

Number of speeds Vario (4)
Spindle speed min-1 40 - 3000
Drilling depth mm 125
Number of drill feeds 3
Automatic drill feed mm 0,1 / 0,15 / 0,2
Diameter column mm 115
Distance spindle-table mm Max. 820
Dimensions table (w x d) mm 400x420
T-grooves mm 14
Rotation drilling table ° 360
Distance spindle-stand mm Max. 1280

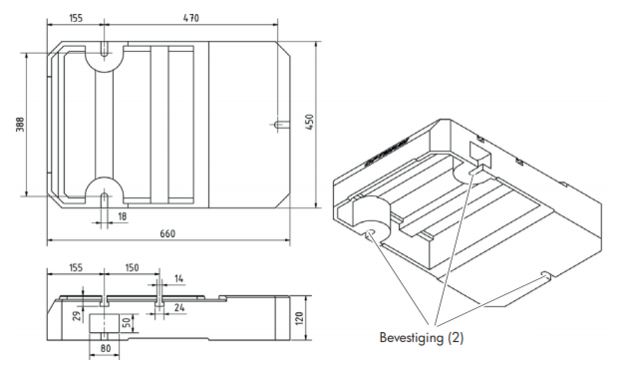

Dimensions stand (w x d) mm 420x480
Weight kg 300,00

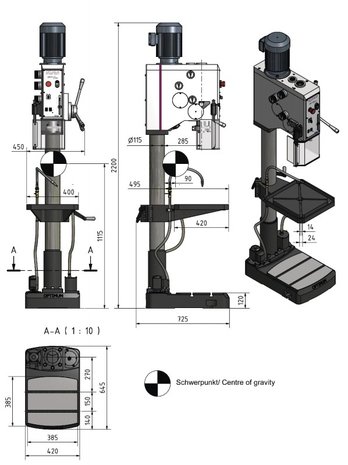

Dimensions (b x d x h) mm 725x450x2.200
