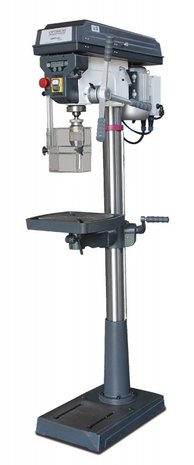

Column drilling machine diameter 25mm

Column drilling machine diameter 25mm
Robust column drilling machine with V-belt drive with digital speed display and drilling depth.
Advantages:
Drilling in steel up to 25 mm
Connection Morse Taper MT3
Digital speed display and drilling depth
12 speeds
750 Watts 1x230V motor - aluminum pulleys
GATES quality toothed belts
Suitable for:
Workshops, maintenance services, schools and training centers
More technical specifications :
Guaranteed rotation accuracy <0.02mm measured on spindle axis
Axis equipped with precision ball bearings
Easy operation by the aluminum pulleys and the best power transmission by quality V-belts by GATES
High-quality toothed drive belts allow better transmission and a significant reduction in output losses
Drill depth stop

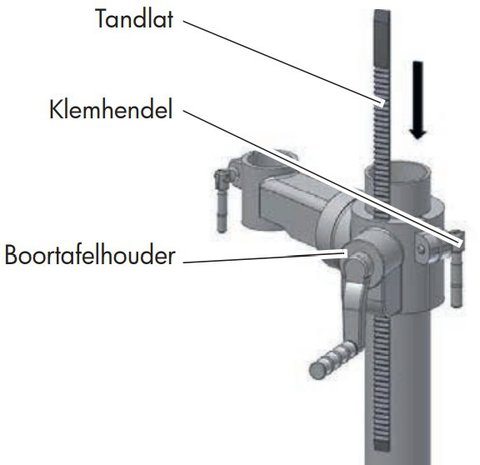

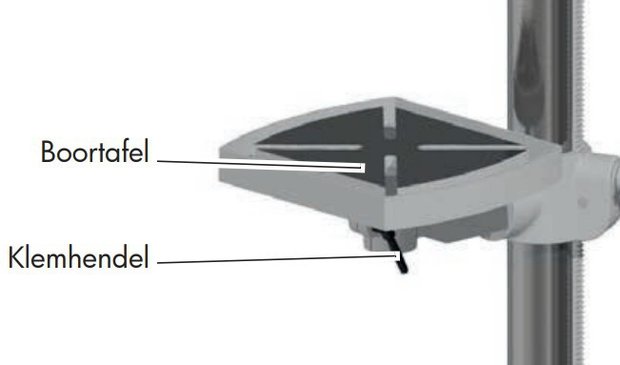

Precision ground table with diagonal T-slots and cooling edges, tiltable from -45 ° to + 45 ° and rotating 360 ° around the column. Thanks to a large rack, the table can easily be adjusted in height
Solid and sturdy base with T-slots
One piece aluminum handle with "soft grip"
Safety:
Ergonomic controls with separate on / off and off in IP54 buttons
Zero tension
Electrical safety system in 24V DC

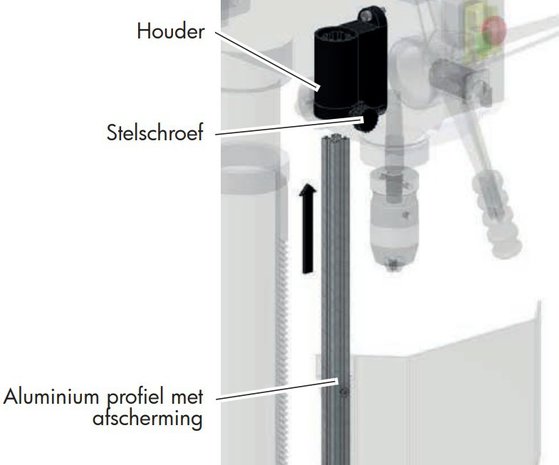

Chuck protection with dual screen and microswitch
Lid with microswitch
Delivered as standard with:
Self-locking chuck Optimum 1-16 mm B16
Arbor according to DIN228 MT3 / B16
2 T nuts for 14 mm and M12 thread
Operating instructions in English, indicating, CE marking, CE certificate according to Machine Directive 2006/42/EC and EMC 2014/30/EU

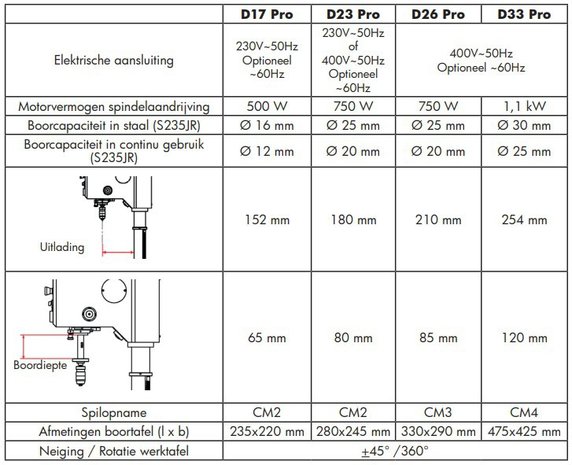

Voltage V 1x230
Power motor kW 0,75
Drilling capacity in steel S235JR mm 25
Continuous drilling capacity S235JR mm 20
Spindle seat MK 3
Number of speeds 12
Spindle speed min-1 200-2.440
Drilling depth mm 85
Throat mm 210

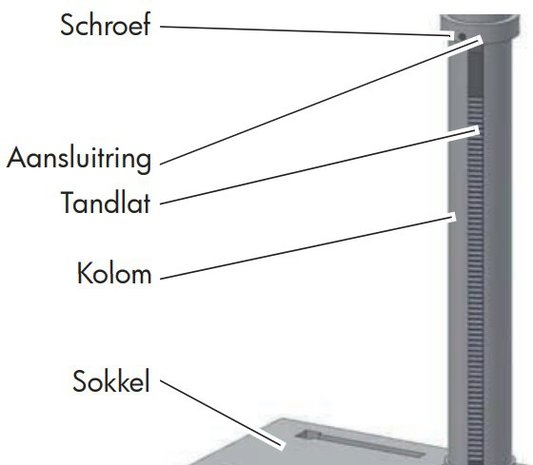

Diameter column mm 80
Dimensions table (w x d) mm 330x290
T-slot size/number/distance mm 14 diagonal
Swiveling drilling table ° +/-45
Rotation drilling table ° 360
Distance spindle-table mm max. 720
Distance spindle-stand mm max. 1.230

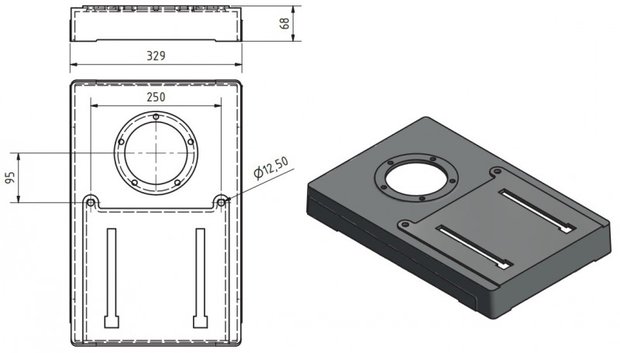

Dimensions stand (w x d) mm 385x260
T-grooves stand mm 16/2/170
Weight kg 85,00

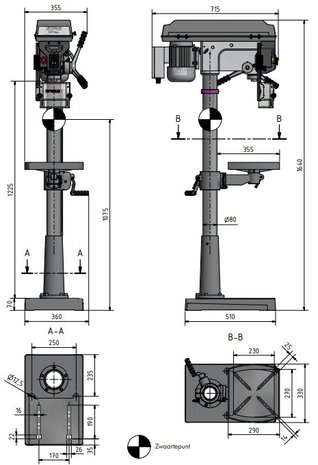

Dimensions (b x d x h) mm 670x355x1.640
