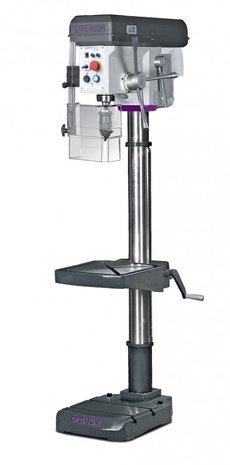

Column drilling machine diameter 28mm

Column drilling machine diameter 28mm

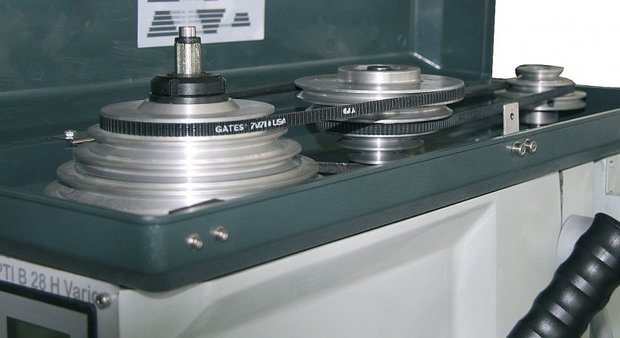

Column drilling machines with V-belt drive for craftsmen and training workshops.
Spindle holding fixture: MT 3 (B28).
Guaranteed concentricity precision better than 0,015 mm measured in the drilling spindle sleeve. Largely dimensioned, height-adjustable screening grid with safety switch for best possible protection of the user.
Long, ergonomic one-piece star grip made of diecast aluminium with soft grip handles.
Solid, largely dimensioned base plate with T-slots, heavily ribbed at the backside.
Separate emergency-stop push button.
Right-/left-handed rotation.
Drilling spindle with precision ball bearings.
Drill depth stop.
V-belt covering with safety switch.
Machine lamp.
Drilling table slewable by 360°.
Smooth running and powerful electric motor.
Optimum price/quality ratio.
Value stability. Powerful 230V DC engine.
Protection class IP 54.
Voltage V 1x230
Power motor kW 0,850
Drilling capacity in steel S235JR mm 28
Continuous drilling capacity S235JR mm 24
Spindle speed min-1 120-4000
Drilling depth mm 105
Diameter column mm 92
T-grooves mm 14
Rotation drilling table ° 360
Distance spindle-table mm 860
Distance spindle-stand mm 1275
Dimensions stand (w x d) mm 320x320
T-grooves stand mm 14
Weight kg 140,00
Dimensions (b x d x h) mm 698x449x1.721
