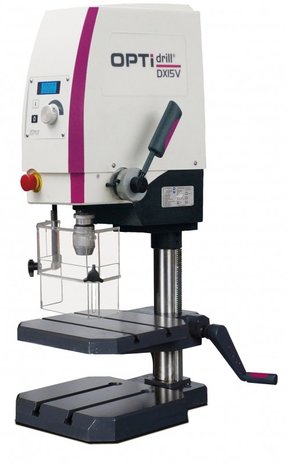

Precision table drill - vario - diameter 15mm

Precision table drill - vario - diameter 15mm
Table drill with continuously adjustable speed control.
Facts that impress in terms of quality, performance and price:
Drilling spindle
Precision ball bearings
Premium OPTIMUM quick clamping chuck as standard

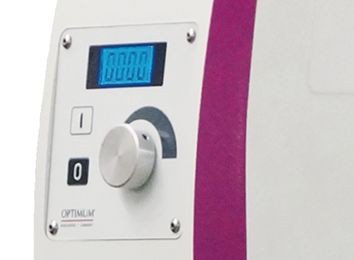

Digital speed display
Integrated in housing
Variable speed drive
Via potentiometer
Cast column
Thick walls
Good force absorption and stability
Drilling table
Precise workmanship
Parallel T-grooves
Base plate
Solid
Generously dimensioned
With pronounced ribbing
Best possible force transmission thanks to to aluminium pulleys
Emergency stop button
Drill spindle with precision ball bearings
Height adjustable chuck protection with microswitch
Foil keypad with high contrast LED display, soiling and water resistant, easy to clean
EMC filter B (use in private households)
Voltage V 230
Power motor kW 0.85
Frequency Hz 50
Drilling capacity in steel S235JR mm 15
Continuous drilling capacity S235JR mm 12
Spindle seat MK 2
Number of speeds Variabel
Spindle speed min-1 100-3000
Drilling depth mm 60
Throat mm 235
Diameter column mm 60
Dimensions table (w x d) mm 290x290
T-slot size/number/distance mm 10/2/100
Rotation drilling table ° 360
Distance spindle-table mm 98-375
Dimensions stand (w x d) mm 290x280
T-grooves stand mm 14/2/100
Weight kg 66,00

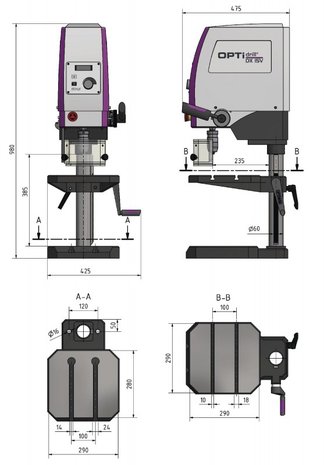

Dimensions (b x d x h) mm 481x475x980
