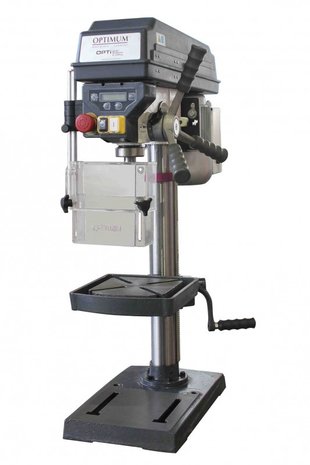

Bench drilling machine diameter 16 mm

Bench drilling machine diameter 16 mm
Robust bench drills with belt drive and digital speed display and drilling depth.
Advantages:
Drilling in steel up to 16 mm
Connection Morse Taper MT2

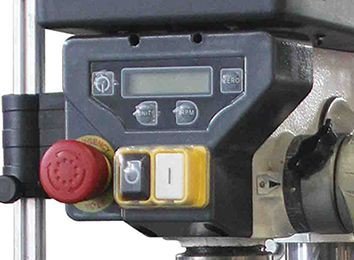

Digital speed display and drilling depth
5 speeds
500 Watt motor - aluminum housing
Suitable for:
Workshops, maintenance services, schools, training centers
More technical specifications :
Guaranteed rotation accuracy <0.02 mm measured on spindle axis
Axis equipped with precision ball bearing
The drive belt allows better transmission and a significant reduction in output losses

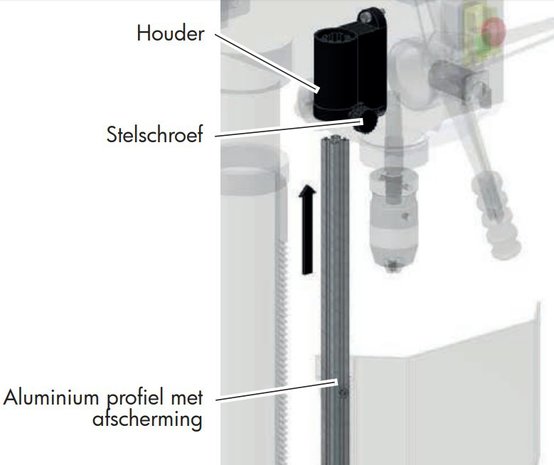

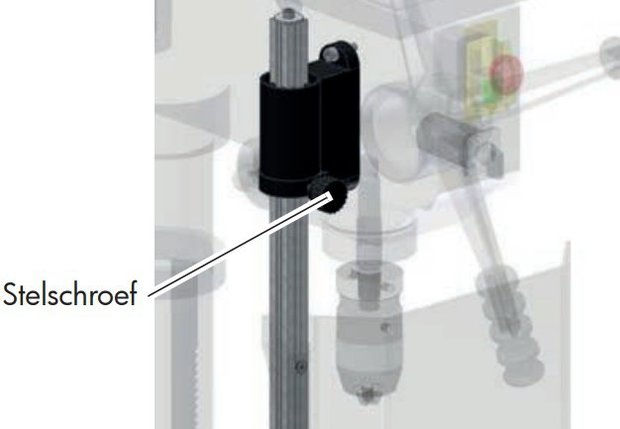

Drill depth stop

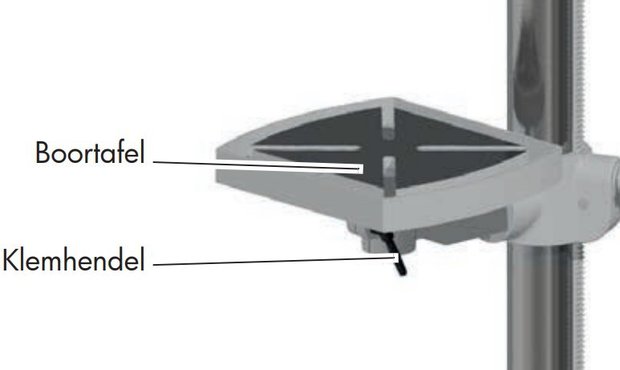

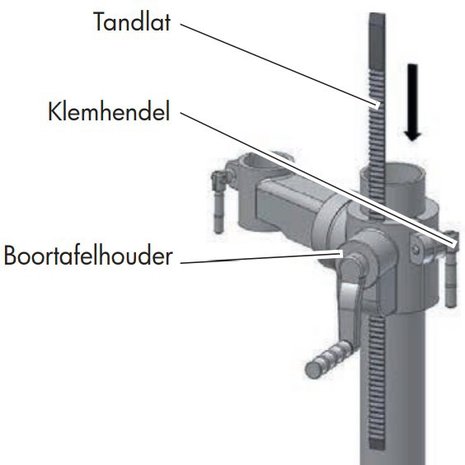

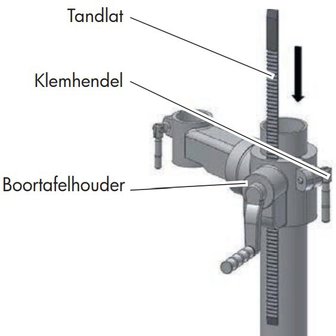

Precision ground table with diagonal T-slots and cooling edges, tiltable from -45 ° to + 45 ° and rotating 360 ° around the column. Thanks to a large rack, the table can easily be adjusted in height
Solid and sturdy base with T-slots
One piece aluminum handle with "soft grip"
Safeties:
Ergonomic controls with separate on / off / button in IP54 and separate emergency button.
Zero tension
Electrical safety system in 24V DC
Chuck protection with dual screen and microswitch
Lid with microswitch
Delivered as standard with:
Self-locking chuck Optimum 1-16 mm B16
Arbor DIN228 MT2 / B16
2 T-slots 12 mm and M10 thread
Operating instructions in English, indicating, CE marking, CE certificate according to Machine Directive 2006/42/EC and EMC 2014/30/EC.

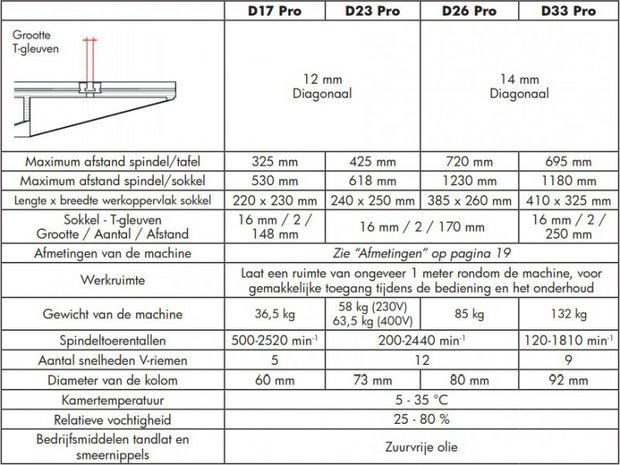

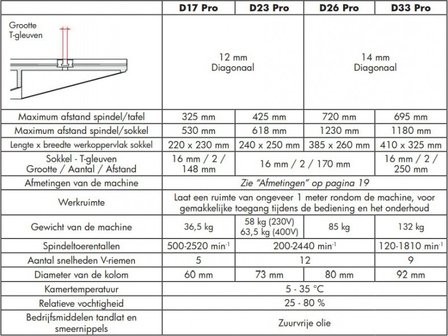

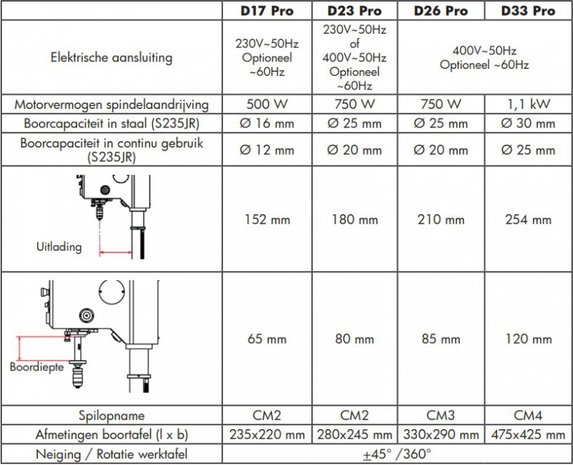

Voltage V 1x230
Power motor kW 0,5
Drilling capacity in steel S235JR mm 16
Continuous drilling capacity S235JR mm 12
Spindle seat MK 2
Number of speeds 5
Spindle speed min-1 500 - 2.520
Drilling depth mm 65
Throat mm 152
Diameter column mm 60
Dimensions table (w x d) mm 235x220
T-slot size/number/distance mm 12 diagonal
Swiveling drilling table ° +/-45
Rotation drilling table ° 360
Distance spindle-table mm Max. 325
Distance spindle-stand mm Max. 530

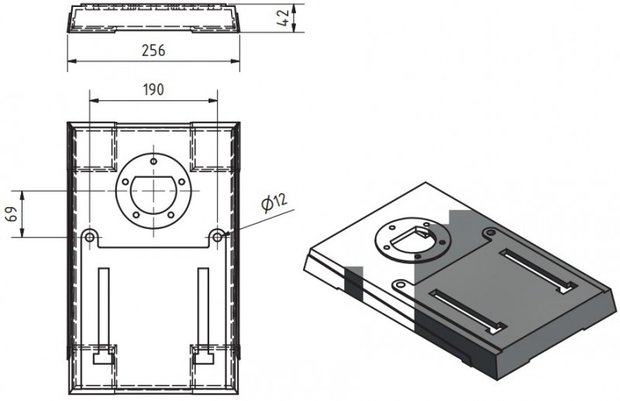

Dimensions stand (w x d) mm 220x230
T-grooves stand mm 16/2/148
Weight kg 36,50

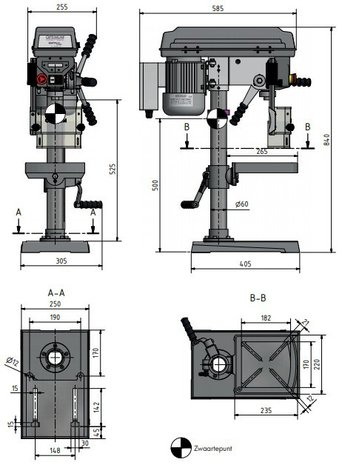

Dimensions (b x d x h) mm 565x275x840
