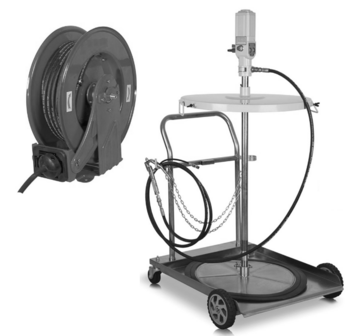

Pack mobile grease distribution unit 200L + grease reel 15m

Pack mobile grease distribution unit 200L + grease reel 15m
VP200 Mobile Pneumatic Grease Pump:
For 200 liter tanks
Pneumatic grease pump 50: 1
Sturdy trolley with 2 fixed wheels and 2 swivel wheels
Tank lid and follower plate with rubber seal
4 meter hose (between pump and gun)
Grease gun with swivel Z
25 cm hose with 4 claw lubrication head
Fixed spray nozzle 15 cm without claws
SHV3815 Automatic hose reel for 400 bar grease pipe:
Rugged red polyester lacquered steel drum with UV resistance
Optimum winding and unwinding thanks to the 180 ° orientable guide on 4 rollers
Blocking the pipe to the desired length
Reliable and durable spring
The winder can be mounted on the wall, floor or ceiling thanks to the adjustable arm
All joints are top quality
2 fittings
For tank diameter mm 540-580
Tank cover diameter mm 600
Follow plate diameter mm 585
Suction hose length m 4
Suction hose diameter inch 1/4
For tanks l 180-200
Pressure ratio 50:1
Maximum oil pressure bar 400
Capacity g/min 6600-800
Suction nozzle length mm 940
Suction nozzle diameter mm 32
Air connection (quick coupler) inch 1/4
Grease output BSP 12
Weight kg 10,00
Dimensions (b x d x h) mm 1x1x1
