Mobile crane 300/500kg with electric winch

Mobile crane 300/500kg with electric winch

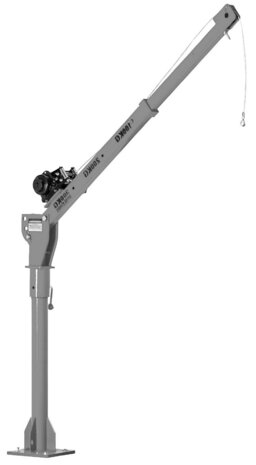

Trailer crane 300 kg with electric 12V winch.
Compact 360° rotating crane with electric 12V winch for use in places without electricity or battery.
Suitable for heavier lifting work on trailers, pickups, vans, construction sites, loading docks, racks, attics,...
Characteristics:
Electric winch 12V
Winch with IP68 waterproofing, perfect for all weather conditions.
Manual free-spool button for faster manual unwinding of the cable
Wireless and wired remote control
Telescopic lifting arm with 3 capacities: 300kg / 200kg / 100kg
300kg lifting capacity
500kg lifting capacity in double work by using a lifting eye on the frame (pulley with hook not included) this function is only available in the shortest position of the lifting arm

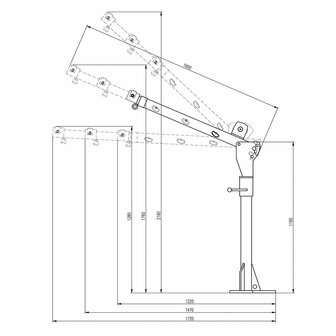

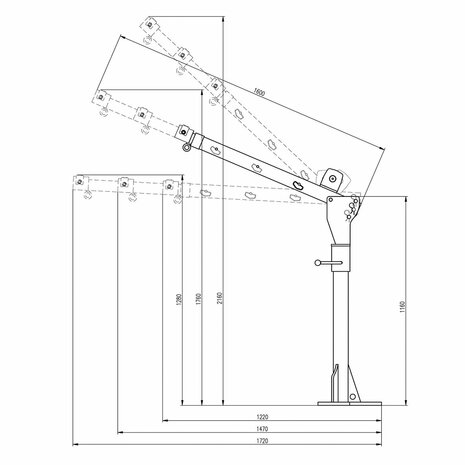

Telescopic arm in 3 lengths (1.22 m, 1.47 m, 1.72 m) and 3 heights (1.28 m, 1.76 m, 2.16 m)
Compact structure, the arm can be folded down after use, for safety while driving
Heavy base can be secured to a platform, 360° swivel head allows loads to be lifted and moved
Very stable rotating base 360° with lock
Ergonomic position of the winch for easy operation
Delivered with:
12 V winch with 15 m steel cable, diameter 4.8 mm with hook
Cables for connection to external battery
Wired remote control 1 m
Wireless remote control
Mounting bracket for mounting the winch on the lifting arm, with cable guide
Solid base plate for anchoring to a solid surface
12V battery not included
Remark:
This product is supplied in transport packaging and must be assembled before use.
Assembly takes approximately 1 hour with 2 people. Auxiliary equipment for lifting and supporting is recommended.
This product requires adequate anchorage to the subfloor or substructure.
Height maximum    m    1950
Voltage    V    12
Capacity    kg    300/500
Cable thickness    mm    6
Cable length    mm    10
Rotatable        Own the property
Weight    kg    49.00
Dimensions (l x b x h)    mm    1,500x350x1,950
