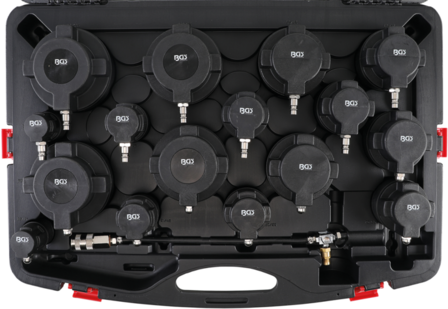

Turbo Charger Diagnosis Tool Set 17 pcs.

Turbo Charger Diagnosis Tool Set 17 pcs.
to be used for passenger vehicles and trucks with turbo engines, diesel and petrol engines
for checking the charging system components when installed
time saving and professional locating of leakages on air intercooler and charging system components
can also be used for leakage test exhaust gas recirculation valves (EGR)
pressure loss can be located easily by hand or leakage spray
to be used with standard air inflators, pressure loss is identified directly with air inflator
suitable for internal hose diameters 31.0 - 110.0 mm
double stage offset sealing plug and air adaptor for hoses without bayonet fitting
includes high pressure safety valve, up to 1,8 bar
gradiation/sizes:
double stage inlet adaptor, 31 x 38 mm
double stage inlet adaptor, 46 x 51 mm
double stage inlet adaptor, 55 x 60 mm
double stage inlet adaptor, 65 x 70 mm
double stage inlet adaptor, 75 x 80 mm
double stage inlet adaptor, 85 x 90 mm
double stage inlet adaptor, 95 x 100 mm
double stage inlet adaptor, 105 x 110 mm
1 universal air inlet adaptor with hose
Gross weight 6500 g
