Hydraulic Cylinder 700 bar Hydraulic Cylinder 700 bar Hydraulic Cylinder 700 bar Hydraulic Cylinder 700 bar
Hydraulic Cylinder 700 bar Hydraulic Cylinder 700 bar Hydraulic Cylinder 700 bar Hydraulic Cylinder 700 bar
Hydraulic Cylinder 700 bar
Hydraulic Cylinder 700 bar hollow piston with 20 mm bore cylinder capacity: 10000 psi (700 bar) 13.0 t. (metric) stroke: 42 mm oil capacity: 77.7 cm³ retracted height: 120 mm extended...

Item number

T2g-GL B 9530

€ 641,11 *
€ 539,00 *
Price per Questions +31 111795029
Quantity:
Order

Wishlist

Do you have a question about this product?

Ask us your question

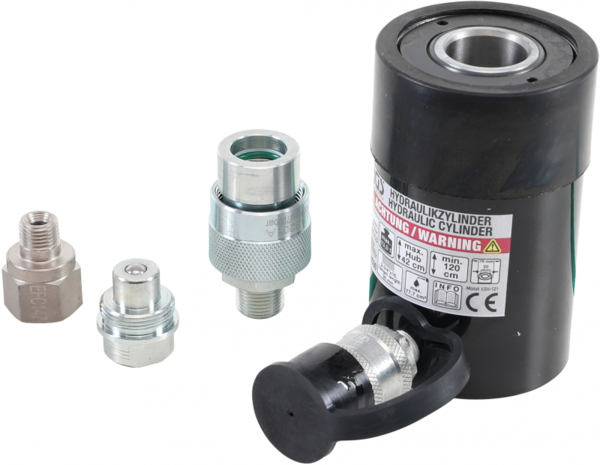

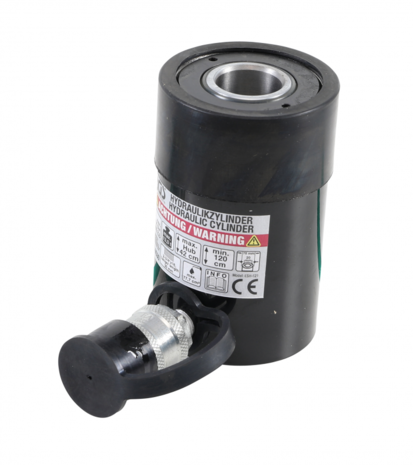

Hydraulic Cylinder 700 bar
hollow piston with 20 mm bore
cylinder capacity: 10000 psi (700 bar)
13.0 t. (metric)
stroke: 42 mm
oil capacity: 77.7 cm³
retracted height: 120 mm
extended height: 162 mm
flange thread: 2-3/4"x16
length of flange thread: 30 mm
external diameter: 70 mm
weight: 2.8 kg
CE Standard Yes
Gross weight 3250 g
