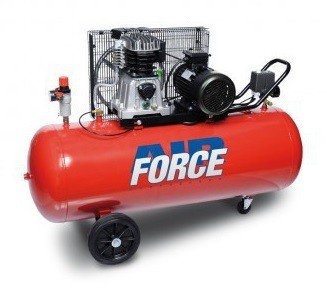

Compressor 200L

Compressor 200 litres
Description:
This high-quality two-cylinder cast iron compressor guarantees a long service life.
Due to its low speed, this compressor significantly reduces wear on the pistons, bearings and sealing rings, which also improves stability.
The robust three-phase motors are protected against overheating and overload by the integrated motor protection switch.
The V-belt and pulleys are protected by mesh made of robust sheet steel and can withstand a bit of impact.
Equipped with pressure gauge for boiler pressure.
Features:
- Ergonomic handle
- Pressure switch with overload protection
- Pressure regulator
- Cooling pipes
- Low-noise operation
- 2 air outlets with regulated pressure
- 2 Pressure gauges
- Safety valve
- 2 Cylinder cast iron
- Oil lubricated
- Large oil glass
- Large flywheel
- Rubber wheels
- Swivel wheel
Technical data:
- Suction air: 350 Ltr/min.
- Maximum pressure: 10 Bar / 145 Psi
- Tank capacity: 200 Ltr
- Cylinder - steps: 2/1
- Voltage: 230V / Hz 50 / Ph 1
- Engine power: 3 HP / 2.2 Kw
- Dimensions (LxWxH): 146 x 64 x 114 cm
- Weight: 102 kg
