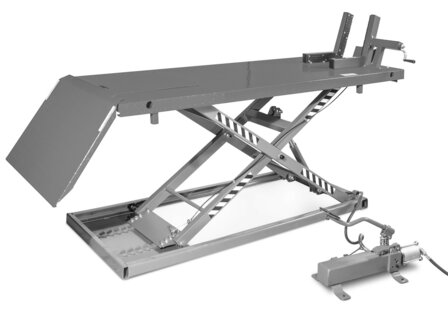

Hydropneumatic motor scissor lift 700kg 1995x710 mm

Hydropneumatic motor scissor lift 700kg 1995x710 mm
Hydropneumatic motor lift table 700kg with table width 710 mm. Suitable for motorcycles, scooters, electric vehicles, small mowers, etc.
Advantages
Work table 1995 x 710 mm
Table and ramps made entirely of non-slip tear plate
Hydropneumatic lifting (with compressed air) or manually with foot pump
Infinitely adjustable height, always the optimum ergonomic working height
Removable inspection hatch at the back of the table for working underneath the vehicles
Supplied with wheel clamp with spindle clamp
Capacity:
Lifting capacity 700 kg
Table length: 1995 mm
Table width: 710 mm
Maximum lifting height: 825 mm
Minimum lifting height: 185 mm
Features:
Equipped with double pump:
Hydraulic pump with mechanical foot control
Pneumatic pump operated via pedal. Pneumatic working with compressed air increases the pumping speed and ease of work
Ramp with length 550 mm and width 710 mm
The ramp is attached to the table with 2 pins and can easily be removed by hand

Removable hatch at the back of the work table at the back, 550 x 710 mm
Wheel clamp with manual clamping. Clamping range: 30-190 mm. Also suitable for narrow tyres, speed pedelecs, electric bicycles, etc.
Suitable for both surface-mounting and installation in the work floor
Equipped with safety against overload and safety in the event of a hydraulic leak
4 eye bolts for securing the vehicles
Supplied pre-filled with 1.5 litres of hydraulic oil
Options:
HYDRO 46 hydraulic oil in a 5-litre can (art.790030046)
Mini motorcycle lift 500kg for lifting the motorcycle frame (art. 758725160)
Wheel clamp with lever, for tyres 33-200 mm (art. 758725009)
Self-clamping wheel block, for tyres 90-150 mm (art. 758725158)
Self-clamping wheel block galvanised, for tyres 70-164 mm (art. 758725159)
Optional compressors:
Compressor Silent, 50 liter tank 1.1 Kw with flow rate 280 liters/minute (8551403106)
Compressor Silent, 100 liter tank 2.2 Kw with flow rate 480 liters/minute (8551403108)
Compressor 100 liter tank 2.2 Kw with flow rate 480 liters/minute (8551404000)
Compressor 200 liter tank 2.2 Kw with flow rate 300 liters/minute (8551404010)
Similar table lifts for motorcycle, ATV and UTV
Hydraulic scissor lift motor - 450kg 2150x520 mm (art 758725100)
Hydropneumatic scissor lift motor - 450kg 2200x680mm (art 758725096)
Hydropneumatic scissor lift motor - 700kg 1995x710mm (art 758725075)
Hydropneumatic scissor lift motor & ATV - 700kg 1995x1218mm (art 758725060)
Similar electric table lifts
Electric scissor lift motor - 600kg 2000x600mm (art 758725094)
Electric scissor lift motor & ATV - 600kg 2000x1200mm (art 758725090)
Electric scissor lift motor - 600kg 2200x780mm low model 75mm (art 758725135)
Electric scissor lift motor - 1000kg 2250x800mm (art 758725142)
Electric scissor lift motorcycle & ATV - 1000kg 2250x1270mm (art 758725143)
Electric scissor lift motorcycle & ATV/UTV - 1000kg 2800x1650mm all-in-one model for trikes, choppers, etc. (art 758725151)
Dimensions loading surfacemm    1995x710
Maximum heightmm    825
Minimum heightmm    185
Capacitykg    700
Weightkg    200.00
Dimensions (l x b x h)mm    2060x710 x210
