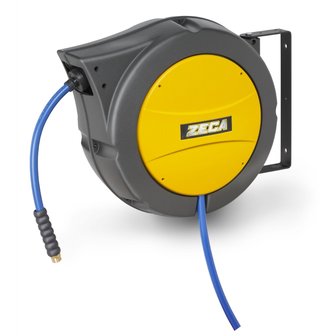

Air water reel 25 m - 3/8
Air water reel 25 m - 3/8
Air water reel 25 m - 3/8 Industrial hose reel with KPU hose of 25 meters for compressed air and water. Advantages: KPU hose - does not kink, remains flexible at any temperature 180°...

Item number

T2g-TV 97562050597

€ 457,50 *
€ 369,05 *
Quantity:
Order

Wishlist

Do you have a question about this product?

Ask us your question

Air water reel 25 m - 3/8
Industrial hose reel with KPU hose of 25 meters for compressed air and water.
Advantages:
KPU hose - does not kink, remains flexible at any temperature
180° rotatable wall bracket
Equipped with a cable guide
Removable snap mechanism (for hose always in traction or constant return)
Scope of application:
Automotive, garages
Build
Industry
Characteristics:
Shockproof polymer housing
Click mechanism for unwinding and retracting
Suitable for compressed air and water up to 15 bar
With threaded connection to the output
According to Atex II 2 GD c IIB T6/T85° C X
Hose diameter inch 3/8
Hose internal diameter mm 10
Hose diameter external mm 14
Length of reel hose m 25
Connecting hose length m 1.5
Max pressure bar 15
Connection Off inch 3/8 M
Operating temperature °C -5 / +50
Weight kg 11.40
Dimensions (l x w x h) mm 550x270x505
