Automatic reel for electric cable 14 m 3 x 1.5 mm³

Automatic reel for electric cable 14 m 3 x 1.5 mm³ Cable reel 3 x 1,5mm² with PVC cable without plugs. Characteristics : Shockproof synthetic case Flexible cable H05VVF with 3 wires...

Item number

: T2g-TV 47562050247

€ 262,50 *

€ 211,75 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

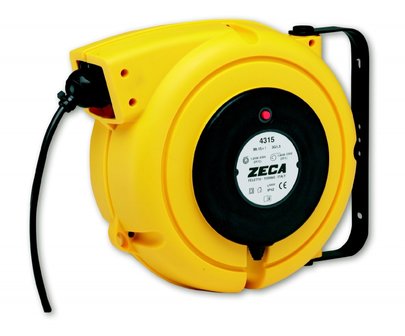

Automatic reel for electric cable 14 m 3 x 1.5 mm³
Cable reel 3 x 1,5mm² with PVC cable without plugs.
Characteristics :
Shockproof synthetic case
Flexible cable H05VVF with 3 wires (3 x 1mm²)
Rolls up and unfolds by click mechanism
With cable guide
The click mechanism can be dismantled if constant feedback is required (eg in engineering)
Rotates 180 ° left / right
CE compliant and IP42 protection class
Copper slip ring
Operating temperature from -5 to +50 ° C
Grounding with double contact
Without connecting cable or plugs
With thermal protection
Voltage   V   230
Maximum voltage   V   500
Cable length   m   15
Cable type       H05VV-F
Number of conductors       3
Conductors section   mm²   1,5
Authorized power rolled   W   1200
Authorized power unrolled   W   1800
Cable diameter   mm   7
IP       42
Operating temperature   °C   -5 / +50
speedcontrol       Has the characteristic
Weight   kg   4,85
Dimensions (b x d x h)   mm   360x185x310
