Automatic reel for electric cable 10 m - 3 x 1,5 mm²

Automatic reel for electric cable 10 m - 3 x 1,5 mm² 3 x 2,5mm² electric cable reel with PVC cable. Characteristics : Shockproof synthetic case Flexible PVC cable H05VVF with 3...

Item number

: T2g-TV 77562050277

€ 262,50 *

€ 211,75 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

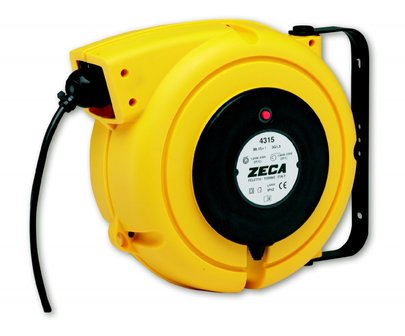

Automatic reel for electric cable 10 m - 3 x 1,5 mm²
3 x 2,5mm² electric cable reel with PVC cable.
Characteristics :
Shockproof synthetic case
Flexible PVC cable H05VVF with 3 conductors (3 x 2,5mm²)
Rolls up and unfolds by click mechanism
With cable guide
The click mechanism can be dismantled if constant feedback is required (eg in engineering)
Swivels 180 ° left-right
CE compliant and IP42 protection class
Copper bushing, insulated up to 2.5 kV
Operating temperature from -5 to +50 ° C
Grounding with double contact
Without connecting cable and without plugs
With thermal protection
Voltage   V   230
Maximum voltage   V   500
Cable length   m   10
Cable type       H05VV-F
Number of conductors       3G
Conductors section   mm²   2,5
Authorized power rolled   W   1900
Authorized power unrolled   W   2500
Cable diameter   mm   10
IP       42
Operating temperature   °C   -5 / +50
speedcontrol       Has the characteristic
Weight   kg   4,50
Dimensions (b x d x h)   mm   360x185x310
