Automatic reel for electric cable 14 m - 3g 1.5 mm³

Automatic reel for electric cable 14 m - 3g 1.5 mm³ 3G 1,5 mm² cable reel with PVC cable and 230 V sockets Characteristics : Shockproof synthetic case Flexible PVC cable H05VVF with 3...

Item number

: T2g-TV 17562050317

€ 292,50 *

€ 235,95 *

Quantity:

Order

Wishlist

Do you have a question about this product?

Ask us your question

Description

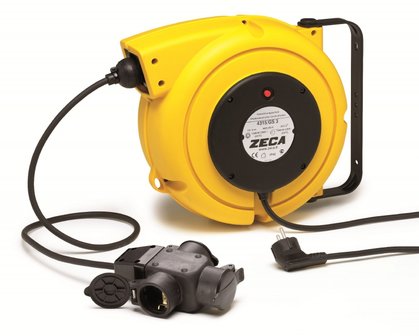

Automatic reel for electric cable 14 m - 3g 1.5 mm³
3G 1,5 mm² cable reel with PVC cable and 230 V sockets
Characteristics :
Shockproof synthetic case
Flexible PVC cable H05VVF with 3 wires (3 x 1,5mm²)
Rolls up and unfolds by click mechanism
With cable guide
The click mechanism can be dismantled if constant feedback is required (eg in engineering)
Swivels 80 ° left-right
CE compliant and IP42 protection class
Copper slip ring
Operating temperature from -5 to +50 ° C
Grounding with double contact
With thermal protection
Supplied with plugs with grounding pin
With triple socket
Voltage   V   230
Maximum voltage   V   500
Cable length   m   14
Cable type       H05VV-F
Number of conductors       3G
Conductors section   mm²   1,5
Connection cable lenght   m   1
Authorized power rolled   W   1200
Authorized power unrolled   W   1800
IP       42
Operating temperature   °C   -5 / +50
speedcontrol       Has the characteristic
Weight   kg   5,30
Dimensions (b x d x h)   mm   360x185x310
